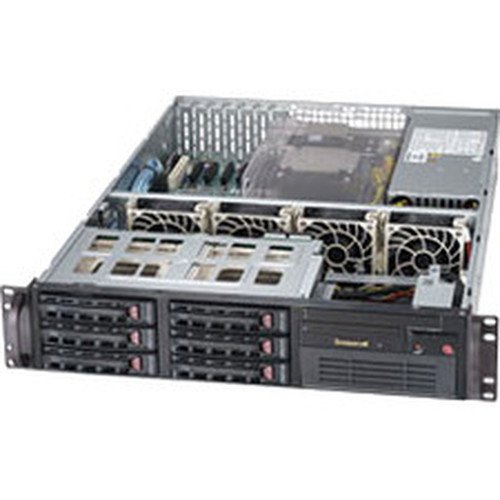

Supermicro SuperServer 6027B-TLF Server Barebone System - 2U Rack-mountable - Socket B2 LGA-1356 - 2 x Processor Support - Intel C602 (SYS-6027B-TLF)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SuperServer 6027B-TLF (Black)
- 1 x Super X9DBL-iF Motherboard
- 1 x 2U Chassis
- 1 x 823 SAS TQ BACKPLANE W/O AMI 9072
- 6 x 48CM SATA ROUND S-S PBF. 26AWG
- 1 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
- 1 x 2U Active CPU HS for Socket R, B2, and Socket C32 Servers
- 1 x 2U 650W Multi Output Power Supply High Efficiency
- 1 x SC823/822 Intel DP X9, X8,H8 PC universal air shroud,12x13MB
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30
- 1 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x mini-IDE to IDE adapter for slim DVD in SC811,812,822,823
- 4 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
- 1 x BLACK 5.25 DUMMY TRAY W/ RAIL IN SC822
- 6 x Black Hot-swap 3.5inch HDD Tray (w/o logo)
- 1 x 2U Chassis Rails. Outer slides extendable length: 28.25" to 33"
- 6 x 48CM SATA ROUND S-S PBF
- 1 x 823 SAS TQ BACKPLANE W/O AMI 9072
- 1 x 2U Active CPU HS for Socket R, B2, and Socket C32 Servers
- 1 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
- 1 x Socket B2 Mounting Bracket for SNK-P0048AP4 (Not Included in SNK-P0048AP4 by Default)
- 1 x Driver CD for X9 series
- 1 x Std I/O shield (3rd LAN + 4xLAN)
- BLACK PANASONIC SLIM DVD ROM SATA DRIVE
- 1CH internal 10P to 4P USB 2.0 cable for LCD,DVD, 70cm
- mini-SATA to USB adapter for slim DVD
- BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS
Number of Processors Supported: 2
Processor Socket: Socket B2 LGA-1356
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C602
Maximum Memory Supported: 192 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Total Number of Memory Slots: 6
Controller Type: Serial ATA/600,Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Ethernet Technology: Gigabit Ethernet,Fast Ethernet
Number of Total Expansion Bays: 7
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 6
Total Number of Expansion Slots: 5
Number of PCI Express x8 Slots: 4
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 7
Network (RJ-45): Yes
Input Voltage: 110 V AC,220 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 650 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.50" (88.90 mm)
Width: 16.80" (426.72 mm)
Depth: 25.50" (647.70 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Provides 7 USB ports for responsive and expanded device connections without interruptions
- Gigabit Ethernet offers speeds up to 10x faster than standard Ethernet, ensuring high-performance uplinks and reliability
- DDR3 SDRAM slot operates at high bus speeds with low power use, improving performance and reducing heat generation
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6027B-TLF |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6027B-TLF |
| Product Name | SuperServer 6027B-TLF (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B2 LGA-1356 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Memory | |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 6 |
| Controllers | |
| Controller Type | Serial ATA/600,Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 7 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 6 |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x8 Slots | 4 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 650 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 16.80" (426.72 mm) |
| Depth | 25.50" (647.70 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
