Supermicro SYS-1019S-M2 SuperServer Barebone - 1U Rackmount - LGA-1151 Socket - Intel Q170 Chipset - 64GB DDR4 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

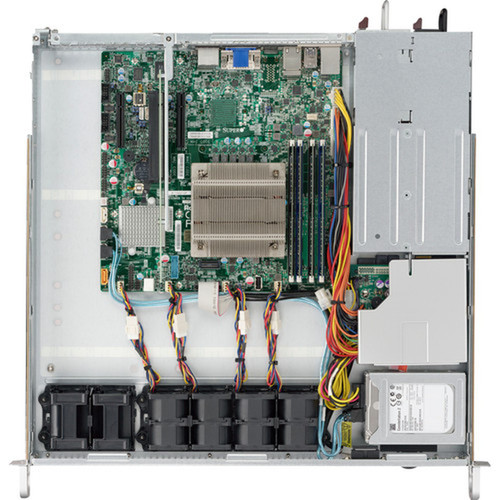

This barebone system supports Intel Core i7, i5, i3, Pentium, and Celeron processors through its Socket H4 LGA-1151 interface. The Intel Q170 Express chipset provides robust platform management and I/O capabilities for business computing workloads.
Four DDR4 memory slots accommodate up to 64GB of DDR4-2133/PC4-17000 memory, delivering high-speed data access with improved power efficiency. Storage connectivity includes two Serial ATA/600 interfaces with hardware RAID support for data protection and performance optimization.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
Dual 400W power supplies with redundancy capability ensure continuous operation for critical applications. The system's expansion capabilities include one PCI Express x16 slot and two internal bays for storage or additional components.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Rack-Optimized Design, Enterprise Connectivity.
Rack-Optimized Design
The 1U form factor provides maximum server density in standard 19-inch racks while maintaining full server functionality and thermal management capabilities.
- 17.2" width fits standard racks
- 1.7" height maximizes density
- Tool-less design for easy maintenance
Enterprise Connectivity

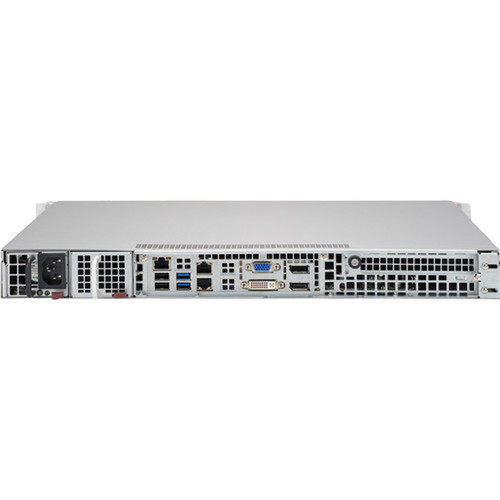

Comprehensive I/O options support diverse peripheral and expansion requirements in business environments.
- 5 USB ports (2 USB 3.0)
- Gigabit Ethernet networking
- PCIe x16 expansion slot
Deployment / Use Cases
The SuperServer 1019S-M2 serves as an efficient platform for business applications requiring reliable computing infrastructure in space-constrained environments. Its balanced configuration supports web hosting, database applications, and departmental server roles.
IT administrators can leverage this system for backup servers, application servers, or specialized computing nodes in distributed environments. The barebone approach allows customization with specific processor, memory, and storage components to match exact workload requirements.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Virtualization Host
Ideal for hosting virtual machines in small to medium business environments, with sufficient memory and processor support for multiple concurrent workloads.
Network Infrastructure Server
Suitable for DNS, DHCP, file sharing, and other network services with reliable Gigabit Ethernet connectivity and storage options.
Physical Profile
This black 1U rackmount server measures 1.70" (43.18 mm) in height, 17.20" (436.88 mm) in width, and 16.90" (429.26 mm) in depth, with an approximate weight of 17.64 lb (8000 g). The compact design fits standard 19-inch server racks while providing adequate internal space for components and cooling.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.20" (436.88 mm), 16.90" (429.26 mm), 17.64 lb (8000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 16.90" (429.26 mm)
- Height
- 1U
- Weight
- 17.64 lb (8000 g)
Highlights
- 1U rackmount form factor for high-density server deployment
- Supports Intel LGA-1151 processors including Core i7, i5, and i3 series
- Up to 64GB DDR4-2133 memory across four DIMM slots
- Intel Q170 Express chipset with business platform features
- Dual 400W power supplies for redundancy and reliability
- Gigabit Ethernet connectivity for network integration
- Two SATA/600 interfaces with RAID support
- Five USB ports including two USB 3.0 for high-speed peripherals
- PCI Express x16 expansion slot for additional capabilities
- Black chassis with standard rack mounting compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-1019S-M2 |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 1019S-M2 |
| Product Name | SuperServer 1019S-M2 (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7,Core i5,Core i3,Pentium,Celeron |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q170 Express |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 2 |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 400 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 16.90" (429.26 mm) |
| Weight (Approximate) | 17.64 lb (8000 g) |
FAQ
What processors are compatible with this barebone system?
The SuperServer 1019S-M2 supports Intel processors using the LGA-1151 socket, including Core i7, Core i5, Core i3, Pentium, and Celeron series. This compatibility provides flexibility for different performance and budget requirements while maintaining platform consistency.
How much memory can this server support?
This system supports up to 64GB of DDR4 memory across four DIMM slots. It uses DDR4-2133/PC4-17000 memory technology, which offers improved performance and power efficiency compared to previous DDR3 standards for server applications.
What storage options are available?
The barebone includes two Serial ATA/600 interfaces with hardware RAID support. These interfaces provide 6Gb/s transfer speeds for SATA hard drives or solid-state drives, with RAID capabilities for data protection or performance enhancement through striping or mirroring configurations.
What expansion capabilities does this server offer?
Expansion options include one PCI Express x16 slot for additional cards such as network adapters, storage controllers, or specialized computing cards. The system also has two internal expansion bays for additional storage devices or other components.
What power supply configuration is included?
The system comes with two 400W power supplies installed. This dual-power configuration can provide redundancy for critical applications, with each power supply capable of supporting the full system load if the other fails, ensuring continuous operation.
What networking features are supported?
Integrated Gigabit Ethernet provides standard network connectivity for business environments. The system's networking capabilities support high-speed data transfer for server applications, with compatibility for standard Ethernet infrastructure and network protocols.
