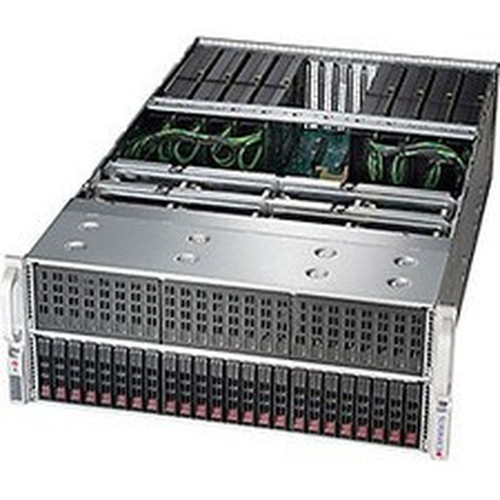

Supermicro SYS-4027GR-TR SuperServer Barebone System - 4U Rackmount - Dual LGA-2011 CPU - 24 x 2. 5" Bays - 10GbE - 1. 6kW PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system delivers a comprehensive server foundation with dual LGA-2011 sockets supporting Intel Xeon processors, enabling 64-bit computing for demanding enterprise applications. The Intel C602 chipset provides reliable platform management and I/O connectivity, while the 24 DDR3-1866 memory slots ensure ample bandwidth for memory-intensive tasks.
Storage management is handled by Serial ATA/600 and SATA/300 controllers with support for RAID 0, 1, 5, and 10 configurations, offering data protection and performance optimization. Network connectivity is provided through 10 Gigabit Ethernet ports, facilitating high-speed data transfer across enterprise networks.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 4027GR-TR combines high storage density with extensive expansion capabilities in a single 4U chassis, making it ideal for virtualization, database hosting, and high-performance computing environments. The inclusion of four 1600W Platinum redundant power supplies ensures reliable operation and power efficiency, while the comprehensive cooling system with multiple fans maintains optimal thermal conditions.
Storage Flexibility
24 hot-swap 2.5" bays with SAS-3 12Gb/s backplane support high-speed SSDs or HDDs, allowing for mixed storage configurations and easy maintenance without downtime.
- SAS-3 12Gb/s connectivity
- Hot-swap capability
- Support for stagger spin-up
Expansion Ready
With 11 PCIe slots, including eight x16 slots, the system accommodates multiple GPUs, network adapters, or storage controllers, providing scalability for growing computational needs.
- 8x PCIe x16 slots
- 2x PCIe x8 slots
- 1x PCIe x4 slot
Deployment / Use Cases
The 4027GR-TR is well-suited for enterprise data centers, cloud service providers, and research institutions requiring high-density storage and compute resources. Its dual-processor architecture and substantial memory capacity make it effective for virtualization hosts, database servers, and high-performance computing clusters.
In storage-intensive applications, the 24 drive bays can be configured for all-flash arrays, hybrid storage pools, or large-capacity archival systems. The 10GbE networking and multiple PCIe slots enable integration into high-speed fabric networks or GPU-accelerated computing environments for AI, machine learning, or scientific simulations.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a black 4U rackmount chassis measuring 7" high, 17.2" wide, and 29" deep, the SuperServer 4027GR-TR fits standard 19-inch server racks. The design includes threaded rail adapters for round-hole racks and a quick-release rail set for easy installation and maintenance. Weighing approximately 80 lbs, the system is robustly constructed to support the included components and additional hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4U, 17.20" (436.88 mm), 29" (736.60 mm), 80 lb (36287.39 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 29" (736.60 mm)
- Height
- 4U
- Weight
- 80 lb (36287.39 g)
What's in the Box
This barebone system includes all necessary components to build a complete server, excluding processors, memory, and storage drives. The package contains the chassis, motherboard, power supplies, cooling solutions, cables, and accessories for immediate deployment.
Highlights
- Supports dual LGA-2011 Intel Xeon processors for high-performance computing
- 24 DDR3-1866 memory slots accommodate up to 1.5TB for memory-intensive applications
- 24 hot-swap 2.5" drive bays with SAS-3 12Gb/s backplane for high-speed storage
- 11 PCIe expansion slots including 8x x16 slots for extensive hardware flexibility
- 10 Gigabit Ethernet networking ensures rapid data transfer in enterprise environments
- 4x 1600W Platinum redundant power supplies provide reliable and efficient operation
- 4U rackmount form factor with included rails for easy integration into server racks
- Hardware RAID support (0, 1, 5, 10) for data protection and performance optimization
- Comprehensive cooling system with multiple fans maintains optimal thermal conditions
- 3-year limited warranty backed by Supermicro's enterprise support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-4027GR-TR |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 4027GR-TR |
| Product Name | SuperServer 4027GR-TR (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Memory | |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1866/PC3-14900 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | Serial ATA/600,Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 11 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 8 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 120 V AC,220 V AC |
| Number of Power Supplies Installed | 4 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7" (177.80 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 29" (736.60 mm) |
| Weight (Approximate) | 80 lb (36287.39 g) |
| Miscellaneous | |
| Package Contents | SuperServer 4027GR-TRT (Black) 1 x Super X9DRG-OF-CPU Motherboard 1 x CSE-418GTS-R3200B 4U Chassis with 24x HDD trays 1 x Mylar CPU air shroud for SC418G (X9DRG-OF-CPU),PBF 1 x Mylar PCIe air shroud for SC418G (X9DRG-O-PCIE),PBF 1 x 24x 2.5"HDD backplane, support SAS-3 12Gb/s,mini-SAS HD connector,new 29-pin SAS-3 receptacles,support power control stagger spin,pre-charge resistor,fuse protect and SGPIO encl mgmt,RoHS/REACH,PBF 8 x 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG,HF,RoHS/REACH,PBF 2 x Cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF 2 x HDD power extension for X8OBN, special 8 pin to 4 HDD. 47cm. 18AWG 4 x RSC-X9DRG-O 2 x 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM 4 x 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30 4 x US power cord 14AWG 6ft, PBF.2.08mm^2 8 x 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF 24 x Black gen 3rd hot-swap 2.5inch HDD tray 3 x Black 2.5 HDD dummy cover for SC213,216 (Cover 8 HDD) 1 x Threaded rail adapter default for round hole rack 1 x Rail set, quick/quick, default for 4U 17.2 |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with the SuperServer 4027GR-TR?
The SuperServer 4027GR-TR supports dual Intel Xeon processors using the Socket R LGA-2011 interface. This compatibility includes various Xeon E5 family CPUs, enabling 64-bit processing for enterprise workloads. You will need to purchase processors separately as this is a barebone system.
How much memory can this server support?
This system supports up to 1.5TB of DDR3 SDRAM across 24 memory slots, using DDR3-1866/PC3-14900 modules. The extensive memory capacity makes it suitable for virtualization, database servers, and other memory-intensive applications requiring high throughput.
What type of storage drives does the 4027GR-TR accommodate?
The server includes 24 hot-swap 2.5" drive bays with a SAS-3 12Gb/s backplane, supporting both SAS and SATA drives. The backplane features mini-SAS HD connectors and supports features like stagger spin-up and SGPIO enclosure management for efficient storage operation.
Does this system include power supplies?
Yes, the SuperServer 4027GR-TR comes with four 1U 1600W Platinum redundant power supplies. These power supplies support input voltages of 120V and 220V AC, providing high efficiency and reliability for continuous operation in data center environments.
What expansion slots are available for add-on cards?
The system offers 11 PCIe expansion slots: 8 PCI Express x16 slots, 2 PCI Express x8 slots, and 1 PCI Express x4 slot. This configuration allows for extensive hardware expansion, including GPUs, network adapters, or storage controllers to meet specific application needs.
Is RAID supported on this barebone system?
Yes, the SuperServer 4027GR-TR includes Serial ATA/600 and SATA/300 controllers with hardware RAID support for levels 0, 1, 5, and 10. This provides options for data striping, mirroring, and parity-based protection to enhance performance and reliability for storage configurations.
