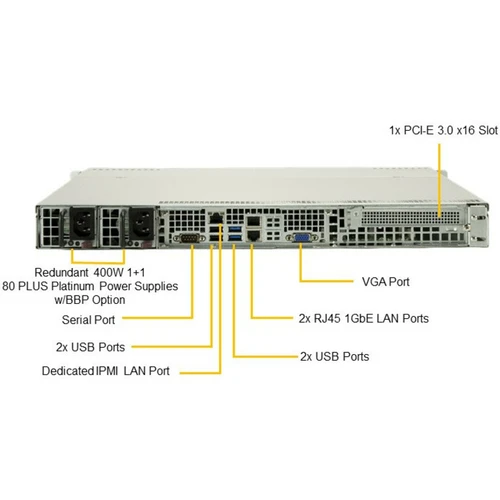

Supermicro SYS-5019P-MR SuperServer Barebone System - 1U Rackmount - Socket P LGA-3647 - Intel C621 - 768GB DDR4 - 4 x 3. 5" Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The 5019P-MR features a comprehensive technical specification that balances performance with deployment flexibility. The memory subsystem supports up to 768 GB of DDR4-2666/PC4-21300 memory across six DIMM slots, providing substantial capacity for memory-intensive applications while maintaining power efficiency through DDR4 technology.
Storage connectivity is handled by a Serial ATA/600 controller with RAID support, enabling fast data transfer rates and data protection configurations. The system includes four dedicated 3.5" drive bays with corresponding SATA interfaces, plus expansion capabilities through a single PCI Express x16 slot for additional connectivity or acceleration cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SuperServer barebone delivers several distinct advantages for IT infrastructure deployment. The 1U rackmount form factor maximizes data center space utilization while providing enterprise-grade features typically found in larger systems.
High-Density Compute
The single-socket design with support for Intel Xeon processors and 768 GB memory capacity enables powerful server configurations in minimal rack space.
- Socket P LGA-3647 processor support
- Six DDR4 memory slots
- Intel C621 chipset platform
Enterprise Storage Foundation
Four 3.5" drive bays with SATA/600 connectivity and RAID support provide a flexible storage foundation for various application requirements.
- Four hot-swap compatible bays
- Serial ATA/600 interface
- Hardware RAID capabilities
Reliable Power Architecture
Dual 400W power supplies with 120V/230V input compatibility ensure continuous operation through redundant power delivery.
- Dual hot-swap power supplies
- Wide input voltage range
- 400W maximum output
Deployment / Use Cases
The SuperServer 5019P-MR is well-suited for various enterprise and data center applications where space efficiency and single-processor performance are priorities. Its balanced configuration makes it adaptable to multiple server roles within modern IT infrastructure.
Common deployment scenarios include virtualization hosts for small to medium virtual machine environments, network infrastructure servers for DNS, DHCP, or firewall applications, and dedicated application servers for business software, databases, or web hosting. The system's storage capacity also supports file and print server roles or backup target applications.
Virtualization Platform
With substantial memory capacity and processor support, this system serves as an efficient host for hypervisor platforms running multiple virtual machines.
Network Infrastructure Server
The reliable hardware platform with Gigabit Ethernet connectivity is ideal for critical network services requiring continuous availability.
Physical Profile
The 5019P-MR employs a standard 1U rackmount form factor with dimensions of 1.70" (43.18 mm) height, 17.20" (436.88 mm) width, and 19.80" (502.92 mm) depth. The black chassis features tool-less design elements for easier maintenance and component access. With an approximate weight of 17.60 lb (7.98 kg), the system balances structural integrity with manageable installation requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.20" (436.88 mm), 19.80" (502.92 mm), 17.60 lb (7983.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 19.80" (502.92 mm)
- Height
- 1U
- Weight
- 17.60 lb (7983.23 g)
Highlights
- 1U rackmount server barebone system for space-efficient data center deployment
- Supports Intel Xeon processors in Socket P LGA-3647 configuration
- Intel C621 chipset platform with 64-bit processing capability
- Up to 768 GB DDR4-2666 memory across six DIMM slots
- Four 3.5" drive bays with SATA/600 connectivity and RAID support
- Dual 400W power supplies with 120V/230V input compatibility
- Gigabit Ethernet networking for high-speed data transfer
- Single PCI Express x16 expansion slot for additional connectivity
- Black chassis with tool-less design for serviceability
- Standard rack dimensions: 1.70" H × 17.20" W × 19.80" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5019P-MR |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5019P-MR |
| Product Name | SuperServer 5019P-MR (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 768 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 6 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 400 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 19.80" (502.92 mm) |
| Weight (Approximate) | 17.60 lb (7983.23 g) |
FAQ
What processor socket does the SuperServer 5019P-MR use?
The SuperServer 5019P-MR uses Socket P LGA-3647, which supports Intel Xeon processors. This socket configuration is designed for single-processor implementations in enterprise server environments, providing a balance of performance and thermal characteristics suitable for 1U rackmount deployments.
How much memory can this server barebone support?
This system supports up to 768 GB of DDR4 SDRAM memory across six DIMM slots. The memory operates at DDR4-2666/PC4-21300 speeds, delivering high bandwidth for demanding applications while maintaining the power efficiency advantages of DDR4 technology compared to previous generations.
What storage configuration options are available?
The 5019P-MR includes four 3.5" drive bays with corresponding SATA interfaces. These bays support Serial ATA/600 connectivity with RAID capabilities, allowing for various storage configurations including RAID 0, 1, 5, or 10 depending on the controller implementation and drive selection.
What power supply configuration does this system have?
This server barebone includes two 400W power supplies installed in a redundant configuration. The power supplies support both 120V and 230V AC input voltages, providing flexibility for different electrical infrastructures. The dual power supply design enhances system reliability through power redundancy.
What expansion capabilities does the 5019P-MR offer?
The system provides one PCI Express x16 expansion slot for additional connectivity or acceleration cards. This expansion capability allows for network interface cards, storage controllers, GPU accelerators, or other PCIe devices to be added based on specific application requirements.
Is this system suitable for virtualization environments?
Yes, the SuperServer 5019P-MR is well-suited for virtualization environments. With support for Intel Xeon processors, up to 768 GB of memory, and multiple storage bays, it provides a solid foundation for hypervisor platforms running multiple virtual machines in space-constrained 1U rackmount deployments.
