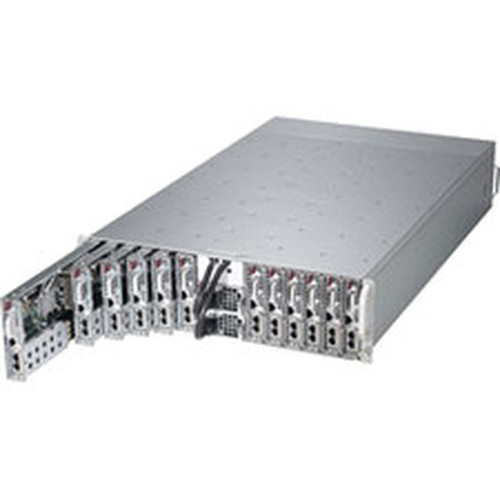

Supermicro SYS-5037MC-H12TRF SuperServer 5037MC-H12TRF Barebone System - 12-Node MicroCloud - 3U Rackmount - LGA-1155 Socket - 32GB DDR3 - Dual 1600W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This MicroCloud system leverages a modular architecture where each of the twelve nodes operates independently with dedicated compute, memory, and storage resources. The LGA-1155 socket accommodates 64-bit Intel processors, enabling support for Xeon E3-series CPUs for enhanced performance and remote management capabilities in enterprise settings. Memory configuration is handled through four DDR3-1600/PC3-12800 DIMM slots per node, scaling up to 32GB per node for substantial application memory headroom.
Storage connectivity is provided via a Serial ATA/600 controller with four SATA interfaces per node, ensuring fast data transfer rates for SSD or HDD deployments. Integrated graphics with 16MB of DDR2 memory support basic display output for setup and management tasks. The system's dual 1600W power supplies operate in a redundant configuration, accepting 110-220V AC input for flexible power compatibility across regions.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The 5037MC-H12TRF excels in environments where space efficiency, scalability, and redundancy are critical. Its 12-node design maximizes rack utilization without sacrificing individual node performance or serviceability.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Design, Integrated Infrastructure, Power Redundancy.
High-Density Design
Packs twelve complete server nodes into a 3U chassis, dramatically reducing physical footprint and power distribution complexity compared to traditional 1U-per-node deployments.
Integrated Infrastructure
Includes all necessary motherboards, backplanes, cabling, and cooling components, minimizing additional procurement and compatibility verification during deployment.
Power Redundancy
Dual 1600W hot-swappable power modules ensure continuous operation during a PSU failure, critical for maintaining uptime in production environments.
Deployment / Use Cases
This MicroCloud system is ideally suited for horizontally scalable applications where individual node failures can be tolerated without impacting overall service availability. Its modular nature allows for incremental expansion and simplified hardware refresh cycles.
Common deployment scenarios include web server farms, where each node can host multiple virtual sites; Hadoop or other distributed computing clusters, leveraging the independent compute and storage resources per node; and virtual desktop infrastructure (VDI) hosts, where the high node count supports numerous concurrent user sessions. The system's Gigabit Ethernet connectivity ensures efficient network throughput for data-intensive workloads like backup servers or media streaming nodes.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a standard 19-inch rack-mountable 3U chassis finished in black, the system measures 5.21" in height, 17.50" in width, and 29.50" in depth. The approximate weight of 95 pounds reflects the dense packaging of twelve server nodes, power supplies, and cooling apparatus. The 3U height provides sufficient internal volume for effective airflow across all components, while the front-accessible design simplifies node servicing and cable management in populated racks.
- Width
- 17.50" (444.50 mm)
- Depth
- 29.50" (749.30 mm)
- Height
- 3U
- Weight
- 95 lb (43091.28 g)
What's in the Box
This barebone system ships as a complete kit, including all core components and necessary cables for immediate assembly and operation.
Highlights
- 12 independent server nodes in a single 3U rackmount chassis for maximum density
- Supports Intel Xeon, Core i3, and Pentium processors on the LGA-1155 socket
- Up to 32GB of DDR3-1600 memory per node across four DIMM slots
- Serial ATA/600 controller with four SATA interfaces per node for fast storage
- Dual 1600W hot-swappable redundant power supplies for high availability
- Gigabit Ethernet connectivity ensures efficient network performance
- Includes twelve motherboards, backplane, and all necessary cabling
- RoHS compliant and backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5037MC-H12TRF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5037MC-H12TRF |
| Product Name | MicroCloud 5037MC-H12TRF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 12 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H2 LGA-1155 |
| Processor Supported | Xeon,Core i3,Pentium |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C204 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Technology | DDR2 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 4 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.62 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.21" (132.33 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 29.50" (749.30 mm) |
| Weight (Approximate) | 95 lb (43091.28 g) |
| Miscellaneous | |
| Package Contents | MicroCloud 5037MC-H12TRF Barebone System 12 x Super X9SCE-F Motherboard 1 x 3U Chassis 1 x 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG 12 x 8Pin to 2SATA Power cable 12cm and 58cm. 18AWG 12 x 55cm SATA cable RA-RA 30AWG 12 x 70cm SATA cable RA-RA 30AWG 12 x 46cm 12 pin to 12 pin control cable for MicroCloud 28AWG 12 x LP CPU Heat Sink for 12-node Micro Cloud Series Servers 1 x CSE939 MicroCloud (12 node) hotswap backplane 12 x includes riser and bracket (AOC-CGP-i2M) 2 x 1600W REDUNDANT POWER MODULE |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The system supports a wide range of Intel processors using the LGA-1155 socket, including Xeon E3-series, Core i3, and Pentium CPUs. This flexibility allows you to choose processors based on performance needs and budget, from entry-level Pentium chips for light workloads to Xeon processors with advanced features like ECC memory support and remote management for enterprise environments.
How much memory can each node support?
Each of the twelve nodes supports a maximum of 32GB of DDR3 SDRAM across four memory slots. The memory standard is DDR3-1600/PC3-12800, providing efficient data throughput for applications. This configuration allows substantial memory allocation per node, suitable for virtualization hosts, database servers, or other memory-intensive workloads within the cluster.
What type of storage connectivity is provided?
Each node includes a Serial ATA/600 (SATA 6Gb/s) controller with four SATA interfaces. This interface delivers fast data transfer rates for solid-state drives or high-capacity hard drives. The system ships with multiple SATA cables in various lengths (55cm and 70cm) to accommodate different drive bay locations within the chassis.
Does the system include power supplies?
Yes, the system comes with two 1600W power supply modules installed. These power supplies are redundant and hot-swappable, meaning if one unit fails, the other can continue to power the entire chassis without interruption. They accept a wide input voltage range of 110-220V AC, making them compatible with standard power infrastructures in North America and other regions.
What is included in the package for network connectivity?
Each node features integrated Gigabit Ethernet via an RJ-45 port on the motherboard. This provides high-speed network access for data transfer, backups, and cluster communication. The system does not include network cables, so you will need to provide standard Ethernet cables to connect each node to your network switch.
What are the physical dimensions and rack requirements?
The chassis is a standard 3U rackmount unit, measuring 5.21 inches in height, 17.50 inches in width (standard 19-inch rack width), and 29.50 inches in depth. It weighs approximately 95 pounds when fully configured. You will need a server rack with sufficient depth to accommodate the chassis and adequate airflow for cooling the twelve high-density nodes.
