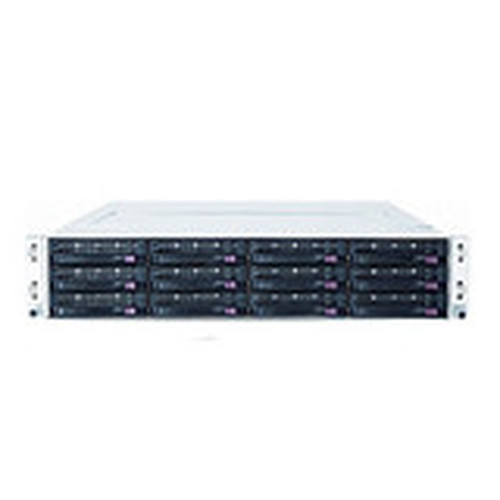

Supermicro SYS-6026TT-BIBQF SuperServer Barebone System - 2U Rack-mountable - Intel 5500 Chipset - Dual Socket B LGA-1366 - 48GB DDR3 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SuperServer platform delivers robust server-grade architecture with dual processor support, enabling substantial compute density within a standard 2U rack footprint. The Intel 5500 chipset provides the foundation for reliable memory and I/O operations, supporting up to 48 GB of DDR3-1333 memory across twelve DIMM slots for flexible capacity planning.
Storage connectivity is handled by a Serial ATA/300 controller with hardware RAID 0, 1, 5, and 10 support, ensuring data protection and performance optimization for attached drives. The system includes three 3.5" hot-swappable drive bays with dedicated trays, plus expansion capability through a single PCI Express x16 slot for additional network, storage, or accelerator cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The 6026TT-BIBQF combines enterprise-grade reliability with practical deployment features that streamline IT operations. Its comprehensive package includes all necessary internal components, from motherboard and chassis to specialized cabling and cooling solutions, eliminating the need for separate sourcing and compatibility verification.
Complete System Foundation
Includes four Super X8DTT-IBQF motherboards, a 2U black chassis, riser cards, power distribution, and all required internal cables for immediate processor, memory, and storage installation.
- Four motherboards included
- All internal cabling pre-specified
- Riser cards for expansion
Optimized Thermal Design
Features four 80x38mm 9.5K RPM PWM fans and dedicated air shrouds to maintain proper airflow across dual processor configurations under sustained loads.
- High-performance PWM fans
- Dedicated air management
- 2U optimized cooling
Enterprise Power Management
Incorporates a 1200W 1U Gold Level power supply with PM Bus support for efficient power delivery and monitoring capabilities in data center environments.
- 80 Plus Gold efficiency
- PM Bus monitoring
- High-capacity 1200W design
Deployment / Use Cases
This barebone server platform is ideally suited for organizations building customized server solutions where specific processor, memory, and storage configurations are required. The dual-socket architecture and substantial memory capacity make it appropriate for virtualization hosts, database servers, and application servers that benefit from multiple processor cores and large memory pools.
The 2U form factor with standard rack mounting provides efficient space utilization in data center cabinets while maintaining accessibility for maintenance. With included rail sets and hot-swappable drive trays, the system supports business continuity requirements where hardware serviceability minimizes downtime. The comprehensive component package reduces integration time for system builders and IT departments deploying multiple identical servers.
Virtualization Host
Dual processor sockets and 48GB memory capacity support multiple virtual machines for server consolidation projects.
Business Application Server
RAID-protected storage and Gigabit Ethernet connectivity deliver reliable performance for database, ERP, and file serving workloads.
Physical Profile
The server employs a standard 2U rack-mountable chassis with black finish, measuring 3.50 inches in height to maximize rack density. With dimensions of 17.20 inches wide by 28.50 inches deep, it fits standard 19-inch rack enclosures while providing sufficient internal space for components and airflow. The 85-pound weight reflects its robust construction and comprehensive internal components, including four motherboards and a 1200W power supply. Quick-release rail sets are included for secure mounting in data center environments.
- Width
- 17.20" (436.88 mm)
- Depth
- 28.50" (723.90 mm)
- Height
- 2U
- Weight
- 85 lb (38555.35 g)
What's in the Box
This barebone system includes all essential components for server assembly:
Highlights
- Dual Socket B LGA-1366 architecture supports two Intel Xeon processors for scalable compute performance
- Intel 5500 chipset provides reliable foundation for memory, storage, and I/O operations in server environments
- 48 GB maximum DDR3-1333 memory capacity across twelve DIMM slots for flexible configuration
- Serial ATA/300 controller with hardware RAID 0, 1, 5, 10 support for data protection and performance
- 2U rack-mountable form factor optimizes data center space while maintaining serviceability
- Gigabit Ethernet connectivity delivers high-speed network throughput for demanding applications
- Comprehensive package includes four motherboards, chassis, power, cooling, and all internal cabling
- 1200W 80 Plus Gold power supply with PM Bus support for efficient, monitorable power delivery
- Includes twelve hot-swappable drive trays for easy storage maintenance and expansion
- Three-year limited warranty provides enterprise-grade support coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6026TT-BIBQF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6026TT-BIBQF |
| Product Name | SuperServer 6026TT-BIBQF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5500 |
| Memory | |
| Maximum Memory Supported | 48 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Total Number of Memory Slots | 12 |
| Controllers | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 8 MB |
| Graphics Memory Technology | DDR2 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 1.20 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 28.50" (723.90 mm) |
| Weight (Approximate) | 85 lb (38555.35 g) |
| Miscellaneous | |
| Package Contents | SuperServer 6026TT-BIBQF Barebone System 4 x Super X8DTT-IBQF Motherboard 1 x 2U Black Chassis 4 x 2U Air Shroud 4 x Hot-swap adapter 1 x BPN-SAS-827B - Same as BPN-SAS-827T plus supports hotswap 4 x SATA SET OF 3-17/20S-S/20S-RA CM ROUND (2U Twin^2 Hot Swap) 4 x FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON 27CM 4 x 2 PIN TO 2 PIN CABLE, 5CM 4 x 4 PIN FAN CABLE FOR 2U TWIN SERVER (15+18 CM) 4 x 4PIN TO 4PIN I2C CABLE, 17CM 1 x CD For X8 series 4 x RSC-R1U-E16R Riser Card 8 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP) 1 x SC827 24PIN SPECIAL OUTPUT POWER DISTRIBUTOR 1 x PWS dummy cover (131x40x76mm) for 700W/800W/900W, PBF 1 x 1200W 1U GOLD LEVER PWS WITH PM BUS 4 x 80X38MM 9.5K RPM 4-PIN PWM FAN FOR SC827 1 x Rail set, quick/quick, default for 2,3U 17.2W 12 x Hot-swappable Hard Drive Tray |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The SuperServer 6026TT-BIBQF supports Intel Xeon processors in the Socket B LGA-1366 package. This includes both dual-core and quad-core Xeon processors compatible with the Intel 5500 chipset. The system accommodates two processors for dual-socket configurations, providing substantial compute capacity for virtualization, database, and application server workloads.
How much memory can this server support and what type is required?
This barebone system supports up to 48 GB of DDR3 memory using DDR3-1333/PC3-10600 modules. It features twelve memory slots total, allowing flexible configuration with various capacity DIMMs. The DDR3 technology provides improved performance and power efficiency compared to previous generations, with the 1333 MHz speed offering strong bandwidth for memory-intensive applications.
What storage connectivity and RAID options are available?
The system includes a Serial ATA/300 controller with hardware RAID support for levels 0, 1, 5, and 10. This provides striping for performance, mirroring for redundancy, parity-based protection, or combined mirroring and striping configurations. Three 3.5" drive bays are available with hot-swappable trays, allowing drive replacement without system shutdown when configured appropriately.
What expansion capabilities does this 2U server provide?
The barebone includes one PCI Express x16 expansion slot for additional cards such as network adapters, storage controllers, or accelerators. Four RSC-R1U-E16R riser cards are included to facilitate card installation. The system also provides two USB ports for peripheral connectivity and Gigabit Ethernet for network communication, with RJ-45 interface support.
What power supply is included and what are its specifications?
The system includes one 1200W 1U Gold Level power supply with PM Bus support. This 80 Plus Gold certified unit provides high efficiency power conversion, reducing energy consumption and heat generation in data center environments. The PM Bus capability enables power monitoring and management through compatible system management tools.
What components are included in the barebone package?
The comprehensive package includes four Super X8DTT-IBQF motherboards, a 2U black chassis, four 2U air shrouds, four hot-swap adapters, a 1200W power supply, four riser cards, eight CPU heatsinks, complete internal cabling, twelve hot-swappable drive trays, and rail sets for rack mounting. This eliminates the need to source separate components and ensures compatibility for immediate server assembly.
