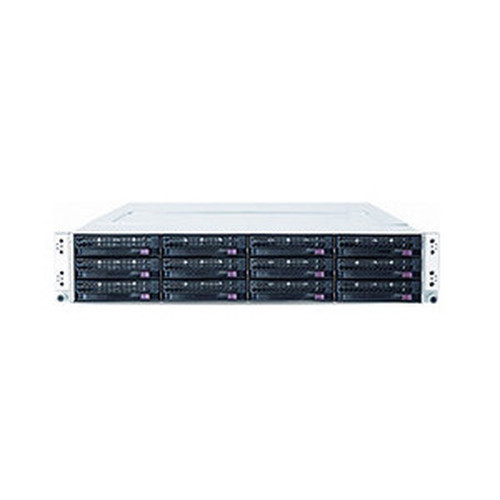

Supermicro SYS-6026TT-HIBXRF SuperServer Barebone System - 2U Rackmount - Dual Socket B LGA-1366 - Intel 5500 Chipset - 48GB DDR3 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the 6026TT-HIBXRF is the Super X8DTT-HIBXF motherboard, featuring dual Socket B LGA-1366 processor sockets compatible with Intel Xeon CPUs. The Intel 5500 chipset provides the platform foundation, supporting up to 48GB of DDR3-1333 memory across twelve DIMM slots for substantial data processing capacity.
Storage is managed through a Serial ATA/300 controller with hardware RAID support for levels 0, 1, 5, and 10, ensuring data protection and performance optimization. The system includes three 3.5" hot-swappable drive bays with dedicated backplanes, plus expansion capability through a PCI Express x16 slot for additional connectivity or acceleration cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SuperServer barebone system delivers enterprise-grade infrastructure in a ready-to-build package. The inclusion of dual 1400W Gold-level power supplies with PMBus monitoring ensures power efficiency and redundancy, while the comprehensive cooling solution with multiple high-RPM fans maintains optimal thermal conditions under load.
Complete Build Foundation
Includes motherboard, chassis, power supplies, cooling, riser cards, CPU heatsinks, and mounting rails—everything needed except processors, memory, and drives.
- 4 x Super X8DTT-HIBXF Motherboard
- 2 x 1400W Gold PSUs
- Quick-release rail set
- 12 hot-swap drive trays
Enterprise Serviceability
Designed for data center deployment with hot-swappable components and tool-less maintenance features.
- Hot-swap drive bays
- Redundant power supplies
- Front-accessible components
- Standard 2U rack mounting
Deployment / Use Cases
The 6026TT-HIBXRF is ideally suited for organizations building custom server solutions for virtualization, database hosting, or application serving. Its dual-processor architecture and substantial memory capacity make it effective for consolidating multiple workloads or running memory-intensive applications.
This barebone system serves well in small to medium business server rooms, educational institution data centers, and managed service provider environments. The comprehensive included components reduce procurement complexity while allowing customization through processor, memory, and storage selection to match specific performance requirements.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Virtualization Host
Support for dual Xeon processors and up to 48GB memory provides solid foundation for hypervisor deployment.
Storage Server
Three hot-swappable bays with hardware RAID support enable reliable network-attached storage solutions.
Physical Profile
The black 2U chassis measures 3.5 inches in height, 17.2 inches in width, and 28.5 inches in depth, conforming to standard rack dimensions. This compact form factor maximizes rack density while providing sufficient internal space for components and airflow. The included quick-release rail set simplifies installation in standard 19-inch racks, and the chassis design facilitates front-access serviceability for drives and indicators.
- Width
- 17.20" (436.88 mm)
- Depth
- 28.50" (723.90 mm)
- Height
- 2U
What's in the Box
This barebone system includes all major components required for server assembly:
Highlights
- Dual Socket B LGA-1366 supports two Intel Xeon processors for high-performance computing
- Intel 5500 chipset provides stable platform foundation with enterprise features
- Up to 48GB DDR3-1333 memory across 12 DIMM slots for substantial data processing
- Serial ATA/300 controller with hardware RAID 0,1,5,10 support for data protection
- Three 3.5" hot-swappable drive bays with dedicated backplanes for easy maintenance
- Dual 1400W Gold-level power supplies with PMBus monitoring for efficiency and redundancy
- Gigabit Ethernet connectivity for high-speed network integration
- 2U rack-mountable black chassis with included quick-release rails for data center deployment
- Comprehensive cooling solution with multiple high-RPM PWM fans for thermal management
- Three-year limited warranty with environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-6026TT-HIBXRF |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 6026TT-HIBXRF |
| Product Name | SuperServer 6026TT-HIBXRF Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5500 |
| Memory | |
| Maximum Memory Supported | 48 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Total Number of Memory Slots | 12 |
| Controllers | |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2.80 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 28.50" (723.90 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 6026TT-HIBXRF Barebone System 4 x Super X8DTT-HIBXF Motherboard 1 x 2U Black Chassis 4 x 2U Air Shroud 4 x BILL OF MATERIAL FOR BPN-827ADP-X8-H Backplane 1 x BPN-SAS-827B - Same as BPN-SAS-827T Backplane plus supports hotswap 1 x CD For X8 series 4 x RSC-R1U-E16R Riser Card 8 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP) 1 x SC827 24PIN SPECIAL OUTPUT POWER DISTRIBUTOR 2 x 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3 4 x 80X38MM 9.5K RPM 4-PIN PWM FAN FOR SC827 1 x Rail set, quick/quick, default for 2,3U 17.2W 12 x Hot-swappable Hard Drive Tray |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this barebone system?
The SuperServer 6026TT-HIBXRF supports Intel Xeon processors in the Socket B LGA-1366 format. This dual-socket platform accommodates two processors, allowing for substantial parallel processing capability. The system is designed for the Xeon processor family that matches the Intel 5500 chipset architecture, providing enterprise-grade performance and reliability features.
How much memory can this server support?
This barebone system supports up to 48GB of DDR3 memory using the DDR3-1333/PC3-10600 standard. The motherboard includes twelve memory slots, providing flexible configuration options. This substantial memory capacity enables effective handling of memory-intensive applications, virtualization workloads, and database operations in business environments.
What storage configuration options are available?
The system includes three 3.5" hot-swappable drive bays with dedicated backplanes for easy drive replacement. Storage is managed through a Serial ATA/300 controller that supports hardware RAID levels 0, 1, 5, and 10. This provides options for performance striping, mirroring for redundancy, or parity-based protection depending on your data integrity and performance requirements.
What power supplies are included with this barebone system?
Two 1400W Gold-level power supply units are included, providing both redundancy and high efficiency. These 1U form factor power supplies feature PMBus monitoring for power management and WX3 connectivity. With a combined maximum output of 2.8kW, they deliver sufficient power for dual processors, multiple drives, and expansion cards while maintaining power redundancy for critical applications.
What expansion capabilities does this server offer?
The system provides one PCI Express x16 expansion slot through included riser cards, allowing for additional network, storage, or acceleration cards. The 2U chassis design accommodates standard full-height cards, and the motherboard's chipset provides sufficient bandwidth for high-performance expansion devices to enhance server functionality.
Is this server ready for rack mounting?
Yes, this is a complete 2U rack-mountable solution that includes a quick-release rail set designed for standard 19-inch racks. The black chassis measures 3.5" high, 17.2" wide, and 28.5" deep, conforming to standard rack dimensions. The rail system allows for easy installation and maintenance access in data center environments.
