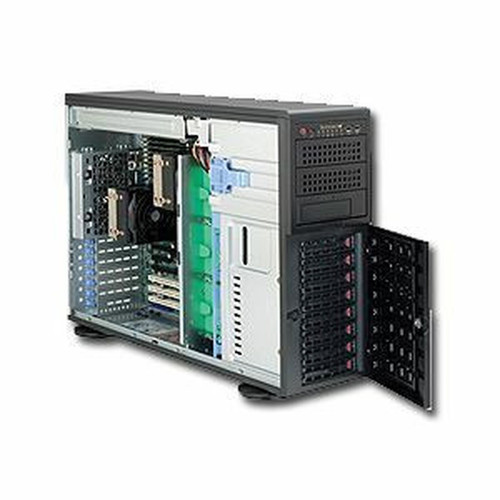

Supermicro SYS-7046T-NTR+ SuperServer Barebone System - Intel 5520 Chipset - Dual Socket B LGA-1366 - 144GB DDR3 Memory Support - 4U Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical foundation of the SuperServer 7046T-NTR+ centers on enterprise-grade components designed for stability and performance. The Intel 5520 chipset manages system communication between dual processors, memory, and peripheral interfaces, ensuring efficient data flow across the platform. Memory architecture utilizes DDR3-1333/PC3-10600 modules, supporting up to 144 GB across 18 DIMM slots for optimized memory bandwidth and capacity.
Storage connectivity includes Ultra ATA/100 (ATA-6) and Serial ATA/300 controllers with hardware RAID support for levels 0, 1, 5, and 10, enabling flexible storage configurations with data protection features. Expansion capabilities include 11 total drive bays (3 external 5.25" and 8 internal 3.5") and 7 expansion slots, with 3 dedicated PCI Express x8 slots for adding network, storage, or specialized accelerator cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SuperServer barebone system delivers several distinct advantages for IT infrastructure deployments, starting with its dual-processor architecture that provides headroom for compute-intensive tasks and virtualization. The 144 GB memory ceiling and 18 DIMM slots offer exceptional scalability for applications requiring large memory footprints, while the hardware RAID controller ensures data integrity and performance for critical storage workloads.
Redundant Power Design
Dual 800W power supplies operate in a redundant configuration, providing continuous operation during power supply failure and supporting 110V/220V input voltages for flexible deployment scenarios.
- 1.60 kW total capacity
- Hot-swappable design
- Wide voltage input range
Enterprise Connectivity
Gigabit Ethernet delivers high-throughput network performance for data-intensive operations, while multiple PCIe expansion slots allow for network, storage, or specialized computing card additions.
- Dedicated management port
- Multiple expansion options
- High-bandwidth networking
Deployment / Use Cases
The SuperServer 7046T-NTR+ serves effectively in multiple enterprise scenarios where reliable server hardware forms the foundation of critical operations. As a virtualization host, the dual-processor support and substantial memory capacity enable consolidation of multiple virtual machines, reducing physical server count while maintaining performance isolation between workloads.
For database applications, the hardware RAID controller with battery-backed cache protection ensures transaction integrity and performance, while the multiple drive bays accommodate storage arrays sized for database volumes and transaction logs. The system also functions well as an application server for business software, web hosting platforms, or file and print services, where the 4U form factor provides adequate cooling and expansion within standard server racks.
Virtualization Platform
Dual processor sockets and extensive memory support make this system ideal for hypervisor deployments, running multiple virtual machines with dedicated resources for each workload.
Storage Server
With 11 drive bays and hardware RAID support, the system can be configured as a dedicated storage server for file sharing, backups, or archival storage with data protection.
Physical Profile
The 4U tower chassis measures 7" (177.80 mm) in height, 17.20" (436.88 mm) in width, and 25.50" (647.70 mm) in depth, fitting standard 19-inch server racks while providing ample internal space for components and airflow. The black finish maintains professional appearance in data center environments, and the 63 lb (28.58 kg) weight reflects the robust construction with steel chassis and internal framework. Front-accessible drive bays and hot-swappable power supplies facilitate maintenance without system downtime.
- Width
- 17.20" (436.88 mm)
- Depth
- 25.50" (647.70 mm)
- Height
- 4U
- Weight
- 63 lb (28576.32 g)
What's in the Box
This barebone system includes all necessary components to build a complete server, excluding processors, memory modules, and hard drives. The comprehensive package ensures proper integration of included parts for reliable operation.
Highlights
- Dual Socket B LGA-1366 supports Xeon quad-core and dual-core processors
- Intel 5520 chipset provides enterprise-grade platform stability
- 144 GB maximum DDR3 memory across 18 DIMM slots
- Hardware RAID controller supports levels 0, 1, 5, and 10
- 4U tower form factor with 11 drive bays for storage expansion
- Dual 800W redundant power supplies (1.60 kW total)
- Gigabit Ethernet connectivity for high-speed networking
- 3 PCI Express x8 expansion slots for additional cards
- Black chassis with standard 19-inch rack mounting
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-7046T-NTR+ |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 7046T-NTR+ |
| Product Name | SuperServer 7046T-NTR+ Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 5520 |
| Memory | |
| Maximum Memory Supported | 144 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Total Number of Memory Slots | 18 |
| Controllers | |
| Controller Type | Ultra ATA/100 (ATA-6),Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 32 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 11 |
| Number of External 5.25" Bays | 3 |
| Number of 3.5" Bays | 8 |
| Total Number of Expansion Slots | 7 |
| Number of PCI Express x8 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 7" (177.80 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 25.50" (647.70 mm) |
| Weight (Approximate) | 63 lb (28576.32 g) |
| Miscellaneous | |
| Package Contents | SuperServer 7046T-NTR+ Barebone System 1 x Super X8DTN+ Motherboard 1 x 4U SC745TQ-R800 Chassis 1 x 743 SAS BACKPLANE W/AMI MG9072 6 x 35CM, SATA CABLE, PB FREE 1 x IDE 80-WIRE CABLE FOR DVD ROM, 50 CM Lead free 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF 1 x CD For X8 series 2 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB 1 x SC745 24PIN REDUNDANT POWER DISTRIBUTOR 2 x 800W,1U,12V OUTPUT POWER SUPPLY 1 x Front ctrl cable ROUND 16 TO 16 PIN RIBBON 20 3 x 4 TO 4 PIN MIDDLE FAN POWER EXTENSION, 200MM (PWM) 3 x 80X38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743 2 x 80x38 4 pin PWM fan assembly for SC743, 745 1 x Front Bezel Filter 8 x Hot-swappable Hard Drive Tray 1 x I/O Shield 1 x Air Shroud |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with this SuperServer barebone system?
The system supports Intel Xeon processors using the Socket B LGA-1366 interface. This includes both quad-core and dual-core Xeon processors from the compatible generation. The dual processor sockets allow installation of up to two CPUs for increased computing performance and core count.
How much memory can this server support and what type does it use?
This SuperServer supports up to 144 GB of DDR3 SDRAM memory across 18 DIMM slots. The memory standard is DDR3-1333/PC3-10600, providing balanced performance for server workloads. The substantial memory capacity makes the system suitable for virtualization, database applications, and other memory-intensive operations.
What storage controllers and RAID capabilities are included?
The system includes Ultra ATA/100 (ATA-6) and Serial ATA/300 controllers with hardware RAID support. The RAID controller supports levels 0, 1, 5, and 10, offering options for performance striping, mirroring, parity protection, or combined mirroring and striping configurations for different storage requirements.
What expansion options are available in this 4U chassis?
The chassis provides 11 total drive bays (3 external 5.25" and 8 internal 3.5") and 7 expansion slots total, including 3 PCI Express x8 slots. This expansion capacity allows for additional storage drives, network interface cards, storage controllers, or specialized computing cards to be added based on deployment needs.
What power supply configuration does this system use?
The system includes two 800W power supplies operating in a redundant configuration, providing 1.60 kW of total power capacity. The power supplies support both 110V and 220V AC input voltages and feature hot-swappable design for maintenance without system downtime during power supply replacement.
What is included in the package with this barebone system?
The package includes the complete barebone system with motherboard, chassis, backplane, power supplies, and all necessary cables and accessories. Key components are the Super X8DTN+ motherboard, 4U SC745TQ-R800 chassis, 743 SAS backplane, redundant power distributor, SATA and IDE cables, cooling fans, drive trays, I/O shield, and air shroud for proper thermal management.
