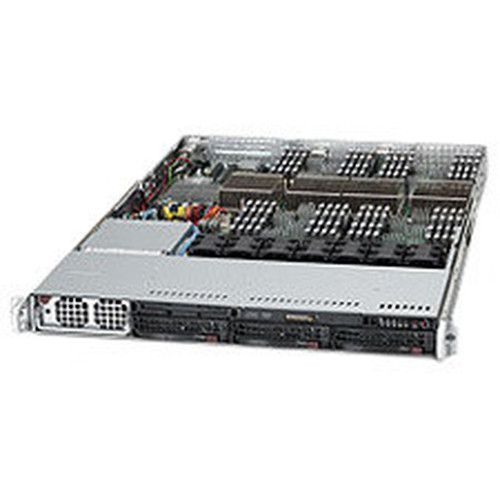

Supermicro SYS-8016B-6F SuperServer 8016B-6F Barebone System - 1U Rackmount - Dual Socket LGA-1567 - Intel 7500 Chipset - 512GB DDR3 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SuperServer 8016B-6F incorporates enterprise-grade components designed for 24/7 operation in data center environments. The system features a Super X8QB6-F motherboard that provides the electrical and thermal foundation for dual Xeon processors, with four passive CPU heatsinks included for efficient thermal management. Memory architecture supports DDR3-1333/PC3-10600 modules, minimizing processor idle time and enhancing multitasking efficiency through 32 available slots.
Storage connectivity is handled by integrated Serial ATA/300 and Serial Attached SCSI (SAS) controllers, offering flexibility for both cost-effective SATA drives and high-performance SAS storage. The system includes three 3.5" hot-swappable drive bays with black trays for easy maintenance and drive replacement without system downtime. A single PCI Express x16 expansion slot provides additional connectivity options for network, storage, or specialized accelerator cards.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SuperServer 8016B-6F delivers enterprise server capabilities in a compact 1U form factor, maximizing rack space efficiency while providing substantial compute and memory resources. The inclusion of a 1400W Gold Level power supply with PM Bus monitoring ensures power efficiency and system health visibility, while the comprehensive cooling solution maintains optimal operating temperatures for reliable performance.
High-Density Compute
Dual processor support with 32 memory slots enables substantial virtual machine density and application performance in minimal rack space.
- Two Socket LGA-1567 for Xeon processors
- 512GB DDR3 memory capacity
- 32 DIMM slots for flexible configuration
Enterprise Storage Flexibility
Integrated SAS and SATA controllers with hardware RAID support provide reliable storage options for diverse workload requirements.
- Serial ATA/300 and SAS interfaces
- RAID 0, 1, and 5 support
- Three hot-swappable 3.5" drive bays
Data Center Ready
The 1U rackmount design includes rail sets for standard server racks, while the 1400W Gold Level PSU delivers efficient power for demanding applications.
- Includes rail set for SC808/809/818 chassis
- 1400W 80 Plus Gold efficiency
- PM Bus monitoring capabilities
Deployment / Use Cases
The SuperServer 8016B-6F barebone system is ideally suited for organizations building custom server solutions for specific workload requirements. Its dual-processor architecture and substantial memory capacity make it an excellent platform for virtualization hosts, where multiple virtual machines can run concurrently with dedicated compute resources. Database servers benefit from the combination of processor power, memory bandwidth, and RAID-protected storage for transaction processing and analytics workloads.
Web and application hosting environments can leverage the system's Gigabit Ethernet connectivity and expansion capabilities to deliver responsive services to users. The 1U form factor makes it particularly valuable for data centers and colocation facilities where rack space is at a premium, allowing maximum server density without sacrificing performance capabilities. IT departments can standardize on this platform while customizing memory, storage, and expansion cards to meet evolving business needs.
Virtualization Host
Dual Xeon processors and 512GB memory capacity support multiple virtual machines for server consolidation and private cloud deployments.
Database Server
RAID-protected storage combined with high memory bandwidth delivers reliable performance for SQL, NoSQL, and analytics database platforms.
Physical Profile
The SuperServer 8016B-6F utilizes a standard 1U rackmount chassis with dimensions of 1.70 inches in height, 17.20 inches in width, and 27.75 inches in depth (43.18 x 436.88 x 704.85 mm). This compact footprint maximizes rack density while providing sufficient internal space for components and airflow. The all-black finish presents a professional appearance in data center environments, with front-accessible drive bays for convenient maintenance. The system includes a complete rail set for secure mounting in compatible server racks, along with necessary cables and brackets for proper installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 27.75" (704.85 mm)
- Height
- 1U
What's in the Box
This barebone system includes all essential components to begin server assembly, minimizing the need for additional purchases beyond processors, memory, and storage drives.
Highlights
- Dual Socket LGA-1567 supports two Intel Xeon processors for high-performance computing
- 512GB maximum memory capacity via 32 DDR3-1333/PC3-10600 DIMM slots
- Integrated Serial ATA/300 and SAS controllers with RAID 0, 1, 5 support
- Three 3.5" hot-swappable drive bays with black trays for easy maintenance
- 1U rack-mountable form factor maximizes data center density
- 1400W 1U Gold Level power supply with PM Bus monitoring
- Gigabit Ethernet provides high-speed network connectivity
- Includes complete rail set for standard server rack installation
- Comprehensive cooling with four passive CPU heatsinks
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-8016B-6F |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 8016B-6F |
| Product Name | SuperServer 8016B-6F Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-1567 |
| Processor Supported | Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | 7500 (Boxboro-EX) |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Total Number of Memory Slots | 32 |
| Controllers | |
| Controller Type | Serial ATA/300,Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 220 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 27.75" (704.85 mm) |
| Miscellaneous | |
| Package Contents | SuperServer 8016B-6F Barebone System 1 x Super X8QB6-F Motherboard 1 x 1U Chassis 1 x supports 3 SAS/SATA (3.5) w/ MG9071 1 x IPASS TO IPASS 39CM PBF 1 x HDD BPN PWS extension 40cm RA for SC818A 1 x Driver for Intel quad MBs 1 x RSC-RR1U-E16 with PIC-E x16 output 4 x 1U Passive CPU Heatsink for X8QBE/6 1 x 132.0x18.0x0.5 mm H48-6C Thermal Pad 1 x POWER DISTRIBUTOR BOARD FOR 818 CHASSIS 1 x 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX106MM 1 x Front ctrl cable ROUND 16 TO 16 PIN RIBBON 20 1 x AC POWER CABLE FOR SC818, 36.5CM PBF 1 x US power cord 16AWG 6ft, PBF (default for high watt) 7 x 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 1 x 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N 1 x Rail set for SC808,809,818 3 x Black Hot-swappable Hard Drive Trays |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What processors are compatible with the SuperServer 8016B-6F?
The SuperServer 8016B-6F supports Intel Xeon processors using the Socket LGA-1567 interface. This platform accommodates two processors simultaneously, enabling dual-socket configurations for enhanced parallel processing capabilities in enterprise server applications. The system includes four passive CPU heatsinks designed specifically for X8QBE/6 processors to ensure proper thermal management.
How much memory can this barebone system support?
This system supports up to 512GB of DDR3 memory through 32 DIMM slots. The memory architecture utilizes DDR3-1333/PC3-10600 modules, which help minimize processor idle time and improve multitasking efficiency. The substantial memory capacity makes this platform suitable for memory-intensive applications like virtualization, database hosting, and in-memory computing workloads.
What storage interfaces are included with this barebone system?
The SuperServer 8016B-6F includes integrated Serial ATA/300 and Serial Attached SCSI (SAS) storage controllers. These controllers support hardware RAID functionality with levels 0, 1, and 5 for data protection and performance optimization. The system provides three 3.5" hot-swappable drive bays with black trays, allowing easy drive replacement without powering down the server.
What expansion capabilities does this system offer?
The system includes one PCI Express x16 expansion slot for additional connectivity or acceleration cards. This slot accommodates standard full-height cards and is accessible via the included RSC-RR1U-E16 riser card. The expansion capability allows for network interface cards, storage controllers, GPU accelerators, or other specialized hardware to be added based on specific application requirements.
What power supply is included with this barebone system?
The SuperServer 8016B-6F includes a 1400W 1U Gold Level power supply with PM Bus monitoring capabilities. This 80 Plus Gold certified power supply delivers high efficiency (typically 90% or higher at 50% load) while providing sufficient power for dual processors, memory, storage, and expansion cards. The PM Bus interface enables power monitoring and management for data center power optimization.
What is included for rack mounting this server?
The system includes a complete rail set designed for SC808, SC809, and SC818 chassis compatibility, along with a 1U open rack bracket set for CSE-PT51L. These mounting components allow secure installation in standard 19-inch server racks with proper cable management and service access. The 1U form factor (1.70" high) maximizes rack density while maintaining adequate airflow for component cooling.
