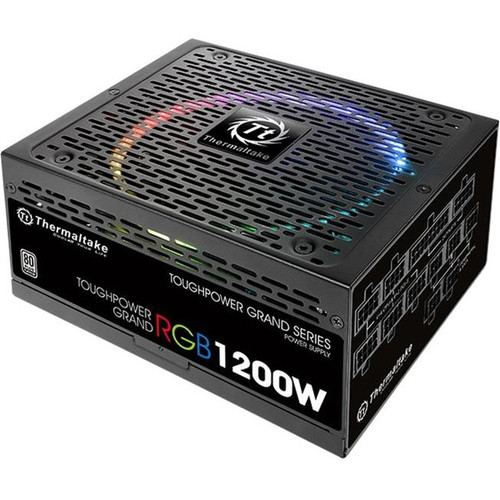

Thermaltake Toughpower Grand RGB 1200W Platinum - Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC Output - 1.20 kW - 1 (PS-TPG-1200F1FAPU-1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX12V/EPS12V
Efficiency: 92%
Number of Fans: 1
Modular: Yes
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC
Output Voltage Detail: 3.3 V DC @ 25 A,5 V DC @ 25 A,12 V DC @ 100 A,12 V DC @ 300 mA,5 V DC @ 3 A
Output Current: 25 A,100 A,300 mA,3 A
Output Power: 1.20 kW
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Depth: 7.09" (180 mm)
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Platinum
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | PS-TPG-1200F1FAPU-1 |
| Manufacturer Website Address | http://www.thermaltake.com |
| Brand Name | Thermaltake |
| Product Line | Toughpower Grand |
| Product Model | TPG-1200AH3FCP |
| Product Name | Toughpower Grand RGB 1200W Platinum |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 92% |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC |
| Output Voltage Detail | 3.3 V DC @ 25 A,5 V DC @ 25 A,12 V DC @ 100 A,12 V DC @ 300 mA,5 V DC @ 3 A |
| Output Current | 25 A,100 A,300 mA,3 A |
| Output Power | 1.20 kW |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 7.09" (180 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Platinum |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 10 Year |
[/custom-specifications]
