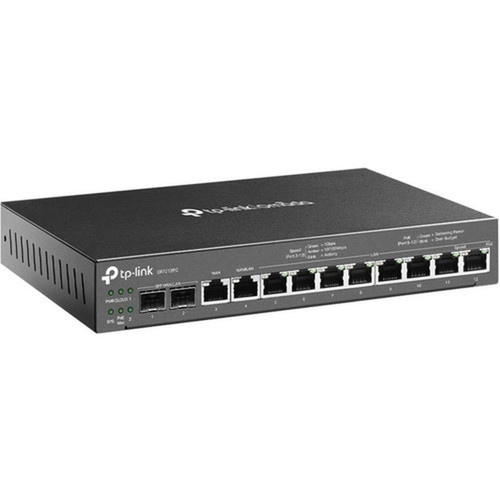

TP-LINK ER7212PC Omada 3-in-1 Gigabit VPN Router with PoE+ - 10 Ports - 2 WAN - Desktop/Wall-Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ER7212PC operates as a Gigabit Ethernet router with support for 10/100/1000Base-TX and 1000Base-X network technologies, ensuring high-speed data transfer across local and wide area networks. It features 2 Gigabit SFP WAN/LAN ports, 1 Gigabit RJ45 WAN port, 1 Gigabit RJ45 WAN/LAN port, and 8 Gigabit RJ45 LAN ports, providing flexible connectivity options.
With 8 PoE+ ports delivering up to 110W total power, it complies with IEEE 802.3at/af standards for efficient device powering. The router includes 2 expansion slots for future upgrades, supporting scalability as network needs evolve. Advanced networking standards like IEEE 802.1Q for VLANs and IEEE 802.3x for flow control enhance network management and performance.
Relevant factors for this section include Total Number of Ports, Number of WAN Ports, Total Number of Expansion Slots. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This router combines multiple network functions into one device, reducing hardware clutter and simplifying management. Its integrated controller allows seamless coordination with other Omada devices, creating a unified network ecosystem.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 3-in-1 Functionality, Advanced Security Features.
3-in-1 Functionality
Integrates router, PoE+ switch, and controller capabilities, eliminating the need for separate devices and lowering total cost of ownership.
- Router with VPN support
- 8-port PoE+ switch
- Built-in controller for Omada ecosystem
Advanced Security Features
Includes policy-based firewall, static and policy routing, multi-net DHCP, guest portal, and VLAN support to secure network traffic and segment access.
- Policy-based firewall
- Guest network isolation
- VLAN for traffic segmentation
Deployment / Use Cases
Ideal for small offices, retail stores, and branch locations requiring reliable internet connectivity with power-over-Ethernet support. The dual WAN ports enable load balancing and link backup, ensuring network uptime even if one internet connection fails.
Suitable for environments deploying IP surveillance systems, VoIP telephony, or wireless networks, where the PoE+ ports can directly power cameras, phones, and access points. The wall-mount option allows installation in space-constrained areas like network closets or behind monitors.
Small Business Networks
Provides all-in-one networking for offices with up to 10 wired devices, including computers, printers, and security cameras, with easy cloud management.
- Centralized device management
- PoE for IP cameras and phones
- VPN for remote access
Retail and Hospitality
Supports guest Wi-Fi portals, VLANs for separating guest and POS traffic, and reliable connectivity for payment systems and digital signage.
- Guest portal for customer Wi-Fi
- VLAN to isolate transaction traffic
- PoE for digital signage
Physical Profile
The router has a compact desktop design measuring 1.40 inches in height, 8.90 inches in width, and 5.20 inches in depth, with a steel case for durability. It includes mounting holes for wall installation, offering flexibility in placement. The small footprint makes it suitable for desks, shelves, or wall mounts in office or retail settings.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.40" (35.56 mm), 8.90" (226.06 mm), 5.20" (132.08 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.90" (226.06 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 1.40" (35.56 mm)
Highlights
- 3-in-1 device: router, PoE+ switch, and controller in one unit
- 10 total ports: 2 WAN ports and 8 Gigabit LAN ports with PoE+
- 110W total PoE power supporting IEEE 802.3at/af standards
- Dual WAN for load balancing and link backup
- Supports IPSec, PPTP, L2TP, and OpenVPN protocols
- Cloud access and multi-site management via Omada app
- Desktop or wall-mount steel case form factor
- 5-year limited warranty and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ER7212PC |
| Brand Name | TP-Link |
| Product Name | Omada 3-in-1 Gigabit VPN Router |
| Product Type | Router |
| Interfaces/Ports | |
| Total Number of Ports | 10 |
| Number of WAN Ports | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-X |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1Q |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.40" (35.56 mm) |
| Width | 8.90" (226.06 mm) |
| Depth | 5.20" (132.08 mm) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many PoE ports does the ER7212PC have and what is the total power output?
The ER7212PC includes 8 PoE+ ports that deliver up to 110W of total power. These ports comply with IEEE 802.3at/af standards, allowing them to power devices like IP cameras, VoIP phones, and wireless access points directly without separate power adapters.
What are the WAN port options on this router?
This router features 2 WAN ports: 1 Gigabit RJ45 WAN port and 2 Gigabit SFP WAN/LAN ports. The dual WAN configuration supports load balancing to distribute traffic across multiple internet connections and link backup to maintain connectivity if one connection fails.
Can this router be wall-mounted?
Yes, the ER7212PC supports both desktop and wall-mount installation. Its steel case includes mounting holes, making it suitable for placement on a desk or attached to a wall in space-constrained environments like network closets or offices.
What VPN protocols are supported?
The router supports IPSec, PPTP, L2TP, and OpenVPN protocols. This allows secure remote access for employees, site-to-site connections between offices, and encrypted data transmission over public networks, enhancing network security.
Does this device include a built-in controller?
Yes, the ER7212PC integrates a controller as part of its 3-in-1 functionality. It works with the Omada ecosystem, enabling centralized management of compatible TP-LINK devices like access points and switches through the Omada app or cloud interface.
What is the warranty period for this router?
TP-LINK provides a 5-year limited warranty for the ER7212PC. This warranty covers defects in materials and workmanship, offering long-term reliability for business deployments. The device is also RoHS compliant, meeting environmental standards.
