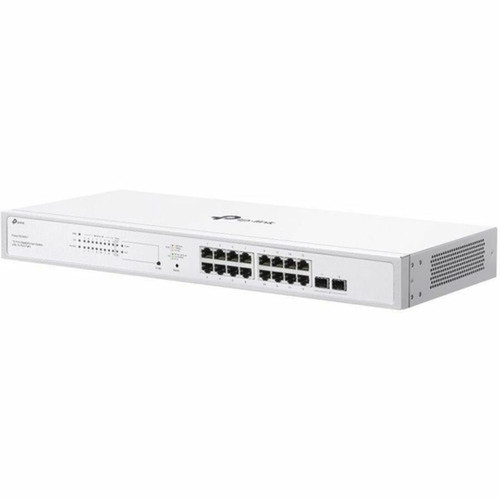

TP-LINK FESTA FS318GP FS318GP 18-Port Gigabit Smart Switch - 16 PoE+ Ports - 2 SFP Slots - Layer 3150W PoE Budget - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch supports Gigabit Ethernet across all ports, with a maximum data transfer rate of 125 MB/s. It complies with IEEE 802.3af/at for PoE+ delivery and IEEE 802.3i/u/ab/z for 10/100/1000Base-T and 1000Base-X networking standards, ensuring broad compatibility with existing infrastructure.
The dual SFP slots enable fiber uplinks for long-distance connections or high-bandwidth aggregation to core switches. A reset button provides quick recovery options, while the manageable interface allows detailed control over VLANs, QoS, and security settings.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The FS318GP consolidates power and data delivery into a single switch, eliminating the need for separate PoE injectors and reducing total cost of ownership. Its Layer 3 capabilities support inter-VLAN routing and advanced network segmentation for improved performance and security.
High-Density PoE+
Sixteen PoE+ ports deliver up to 30W per port, ideal for powering modern high-demand devices like PTZ cameras or multi-radio access points without overloading the budget.
- 150W total PoE budget
- IEEE 802.3at compliant
- Auto-detection of PoE devices
Flexible Uplinks
Two SFP slots accept fiber or copper transceivers, enabling connections up to kilometers away or linking to higher-tier switches without sacrificing port density.
- Supports 1000Base-X
- Hot-swappable modules
- Dual-homing redundancy options
Deployment / Use Cases
Deploy the FS318GP as a distribution switch in office networks, where it aggregates traffic from multiple floors or departments while powering connected devices. Its rack-mountable 1U profile fits standard 19-inch racks, keeping installations organized and professional.
In retail or education settings, use this switch to support IP surveillance systems, digital signage, and wireless networks across a building. The fanless operation makes it suitable for noise-sensitive environments like classrooms or retail floors.
SMB Core Switching
Acts as a core switch for small offices, routing traffic between VLANs for departments like sales, admin, and guest networks while powering phones and access points.
Edge Deployment
Place at network edges in warehouses or remote branches, using SFP uplinks for reliable backhaul to the main office over fiber.
Physical Profile
The switch features a durable metal enclosure measuring 1.70" (43.18 mm) in height, 17.30" (439.42 mm) in width, and 7.10" (180.34 mm) in depth. This compact 1U form factor maximizes rack space efficiency while supporting both rack-mount and standalone placement.
- Width
- 17.30" (439.42 mm)
- Depth
- 7.10" (180.34 mm)
- Height
- 1.70" (43.18 mm)
Highlights
- 16 PoE+ Gigabit Ethernet ports for powering connected devices
- 2 SFP slots for fiber or copper uplink expansion
- Layer 3 switching supports inter-VLAN routing and advanced network design
- 150W total PoE budget delivers up to 30W per port
- Fanless metal construction ensures silent, reliable operation
- Rack-mountable 1U form factor fits standard 19-inch racks
- Manageable via web interface for VLAN, QoS, and security control
- Supports twisted pair and fiber media for flexible connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | FESTA FS318GP |
| Brand Name | TP-Link |
| Product Line | Festa |
| Product Model | FS318GP |
| Product Name | 18-Port Gigabit Smart Switch with 16-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,Reset Button |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port,2 × Gigabit Ethernet SFP Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| Maximum Data Transfer Rate | 125 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 150 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Consumption | 181.32 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack-mountable,Standalone |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 7.10" (180.34 mm) |
User Manual
FAQ
How many PoE+ ports does the FS318GP have, and what is the total PoE budget?
The FS318GP has 16 PoE+ Gigabit Ethernet ports with a total PoE budget of 150W. This budget supports IEEE 802.3at PoE+ devices, delivering up to 30W per port for powering devices like IP cameras, wireless access points, and VoIP phones without additional power injectors.
What are the SFP slots used for on this switch?
The two SFP slots provide uplink connectivity for fiber or copper Gigabit Ethernet connections. They enable long-distance links to other switches or network cores using SFP transceivers, supporting standards like 1000Base-X for flexible network expansion beyond typical twisted pair limits.
Does this switch support Layer 3 routing?
Yes, the FS318GP supports Layer 3 routing, allowing it to perform inter-VLAN routing and basic routing protocols. This capability enables scalable network designs where traffic between different VLANs can be routed directly at the switch level, reducing load on core routers and improving network efficiency.
Is the FS318GP rack-mountable, and what are its dimensions?
Yes, it is rack-mountable with a 1U height profile. The dimensions are 1.70" (43.18 mm) in height, 17.30" (439.42 mm) in width, and 7.10" (180.34 mm) in depth, fitting standard 19-inch server racks. It also supports standalone placement for flexible deployment options.
What management features are available on this smart switch?
The switch is manageable via a web interface, offering control over VLAN configuration, Quality of Service (QoS) settings, port security, and monitoring. These features allow network administrators to optimize traffic flow, segment networks for security, and troubleshoot connectivity issues efficiently.
What is the maximum data transfer rate and supported network standards?
The maximum data transfer rate is 125 MB/s across Gigabit Ethernet ports. It supports network standards including IEEE 802.3i/u/ab/z for 10/100/1000Base-T and 1000Base-X, and IEEE 802.3af/at for PoE and PoE+, ensuring compatibility with a wide range of Ethernet devices and PoE-powered equipment.
