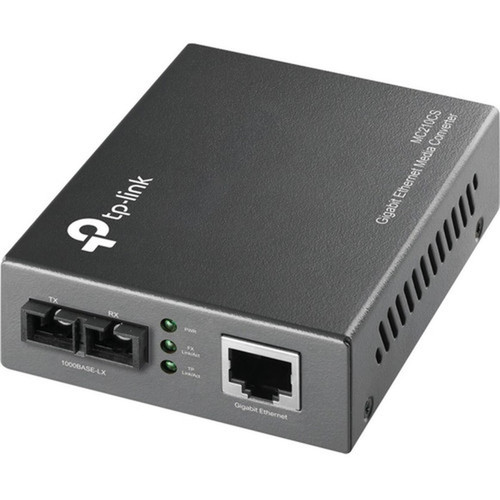

TP-LINK MC210CS Gigabit Ethernet Media Converter - 1 x RJ-45 to 1 x SC Single-mode Fiber - 1310 nm - 15 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter handles bidirectional conversion between 1000BASE-LX fiber optic signals and 1000Base-T copper Ethernet. It operates at a 1310 nm wavelength on single-mode fiber, which is optimized for long-distance transmission with minimal signal loss over its 15 km maximum supported distance. The unit maintains signal integrity across both media types without compromising data throughput.
Network compatibility includes full support for 1000Base-T (Gigabit Ethernet over copper) and 1000Base-FX (Gigabit Ethernet over fiber) standards. The RJ-45 port automatically negotiates speed and duplex settings with connected devices, while the SC fiber port can be configured for either forced or auto-negotiated transfer modes to match upstream equipment requirements.
Key Product Advantages
The MC210CS delivers reliable media conversion with several practical benefits for network expansion and fiber integration projects.
Long-Distance Extension
Extend Gigabit Ethernet connections up to 15 kilometers (9.32 miles) over single-mode fiber, far beyond the 100-meter limitation of standard copper cabling.
- 15 km maximum distance
- Single-mode fiber optimized for long reach
- Maintains full Gigabit throughput
Simplified Deployment
Auto MDI/MDIX on the RJ-45 port eliminates crossover cable concerns, while configurable fiber port modes provide flexibility for different network environments.
- Auto MDI/MDIX support
- Force/Auto transfer mode options
- LED status indicators for easy monitoring
Energy Efficient Design
With just 1.80 watts of power consumption, the converter operates efficiently while including an external power adapter for reliable operation.
- Low 1.80 W power draw
- External power adapter included
- Compact external form factor
Deployment / Use Cases
The MC210CS is ideal for extending network infrastructure between buildings, across campuses, or in industrial environments where copper distance limitations pose challenges. It seamlessly integrates fiber backbone segments with copper-based edge networks while maintaining Gigabit performance.
Common deployment scenarios include connecting remote offices or facilities over existing single-mode fiber runs, linking network switches in separate buildings within a campus environment, and integrating fiber-optic industrial networks with standard Ethernet equipment. The converter's compact external design makes it suitable for desktop, wall-mount, or rack-mount installations where space is limited.
Building-to-Building Connectivity
Connect network equipment between separate structures using existing single-mode fiber infrastructure while maintaining Gigabit Ethernet performance across the extended distance.
Campus Network Expansion
Extend network reach across large educational, corporate, or healthcare campuses where copper distance limitations would otherwise require additional switching equipment.
Physical Profile
The MC210CS features a compact external enclosure measuring 3.70" (93.98 mm) wide × 2.90" (73.66 mm) deep × 1.10" (27.94 mm) high. This small footprint allows flexible placement on desktops, shelves, or mounted alongside other network equipment. The external power adapter keeps heat generation outside the main unit for improved reliability in continuous operation environments.
- Width
- 3.70" (93.98 mm)
- Depth
- 2.90" (73.66 mm)
- Height
- 1.10" (27.94 mm)
- Length
- 1310 nm
What's in the Box
The package includes everything needed for immediate deployment of the media converter.
Highlights
- Converts between 1000Base-T copper and 1000Base-FX single-mode fiber
- Extends network distance up to 15 km (9.32 miles) over fiber
- Operates at 1310 nm wavelength on single-mode fiber
- Full Gigabit Ethernet performance at 1000 Mbps in full-duplex mode
- Auto MDI/MDIX support on RJ-45 port eliminates crossover cables
- Configurable Force/Auto transfer modes for fiber port
- Easy-to-view LED indicators for link, power, and activity status
- Low power consumption at just 1.80 watts
- Compact external form factor with included power adapter
- 2-year limited warranty for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | MC210CS |
| Brand Name | TP-Link |
| Product Model | MC210CS |
| Product Name | MC210CS Gigabit Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 15 km (9.32 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-FX |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 1.80 W |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1.10" (27.94 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.90" (73.66 mm) |
| Miscellaneous | |
| Package Contents | MC210CS Gigabit Ethernet Media Converter Power Adapter Installation Guide |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What types of network connections does the MC210CS convert between?
The MC210CS converts between 1000Base-T Gigabit Ethernet over copper RJ-45 connections and 1000Base-FX Gigabit Ethernet over single-mode fiber with SC connectors. It handles bidirectional conversion, allowing seamless integration of fiber backbone segments with copper-based network equipment.
What is the maximum distance supported by this media converter?
This converter supports distances up to 15 kilometers (9.32 miles) over single-mode fiber when operating at 1310 nm wavelength. This extended reach makes it suitable for building-to-building connections, campus networks, and other applications where standard copper Ethernet distance limitations of 100 meters are insufficient.
Does the RJ-45 port support auto MDI/MDIX?
Yes, the RJ-45 port features auto MDI/MDIX functionality, which automatically detects and adjusts for straight-through or crossover cable configurations. This eliminates the need for specific crossover cables when connecting to network switches, routers, or other Ethernet devices, simplifying deployment and reducing cable inventory requirements.
What type of fiber connector does this converter use?
The MC210CS uses SC connectors for its fiber optic interface. SC connectors are widely deployed in single-mode fiber installations and provide reliable, push-pull connectivity. The converter is designed for use with single-mode fiber optic cables terminated with SC connectors at 1310 nm wavelength.
How is the MC210CS powered?
The converter is powered by an included external power adapter that plugs into standard AC outlets. This external power design keeps heat generation outside the main unit and provides reliable operation. The converter consumes just 1.80 watts of power, making it energy-efficient for continuous operation.
What configuration options are available for the fiber port?
The fiber port supports configurable Force/Auto transfer modes. In Auto mode, the port automatically negotiates link parameters with connected equipment. In Force mode, specific settings can be applied to ensure compatibility with equipment that requires particular configuration. This flexibility allows the converter to integrate with various network environments and equipment types.
