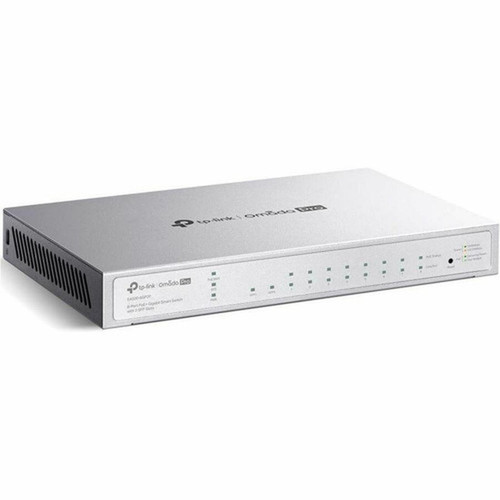

TP-LINK S4500-8GP2F Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots - Layer 2 Managed - Fanless - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 managed switch delivers full Gigabit throughput across all ports, supporting auto-negotiation and auto-MDI/MDIX for plug-and-play deployment. The 61W PoE budget allows simultaneous powering of multiple PoE+ devices such as wireless access points, IP cameras, and VoIP phones without external injectors.
Networking standards compliance includes IEEE 802.3af/at for PoE, IEEE 802.3az for Energy Efficient Ethernet, and comprehensive Layer 2 protocols like IEEE 802.1Q VLAN, IEEE 802.1p QoS, IEEE 802.1D STP, and IEEE 802.3ad Link Aggregation. The dual SFP slots enable fiber uplinks for extended distance connections or high-bandwidth backbone links.
Relevant factors for this section include Features, Total Number of Network Ports, Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The fanless operation ensures silent performance in office environments, while the comprehensive management feature set includes IGMP snooping for multicast optimization, port mirroring for traffic analysis, and IEEE 802.1x for network access control. The rack-mountable design with included mounting hardware facilitates clean installations in standard 19-inch racks.
PoE+ Ready Design
Eight PoE+ ports deliver up to 30W per port, supporting power-hungry devices like PTZ cameras and multi-radio access points while simplifying cable management.
- 61W total budget
- IEEE 802.3at compliant
- Backward compatible with PoE devices
Dual SFP Uplink Flexibility
Two SFP slots provide fiber connectivity options for uplinks to core switches or connections between buildings, overcoming copper distance limitations.
- 1000Base-X support
- Optical fiber media compatibility
- Redundant uplink capability
Deployment / Use Cases
The S4500-8GP2F serves effectively in retail environments needing both point-of-sale systems and security cameras, educational settings connecting classrooms with PoE access points, and professional offices requiring reliable connectivity for VoIP systems and network-attached storage.
Its compact dimensions allow placement in space-constrained locations, while the desktop-friendly form factor supports temporary deployments or branch office setups where rack mounting isn't available. The switch integrates seamlessly into existing Omada SDN environments or operates as a standalone managed switch.
Small Business Backbone
Ideal as the main switch in small offices, connecting workstations, printers, and servers while powering PoE devices through a single infrastructure.
IP Surveillance Deployment
Perfect for security installations where multiple PoE cameras require both data and power from a centralized switch location.
Physical Profile
The silver aluminum chassis measures 1.02 inches in height, making it a 1U rack-mountable device that conserves vertical space in network cabinets. At 8.23 inches wide and 4.96 inches deep, it fits standard 19-inch rack widths while maintaining a shallow depth suitable for compact enclosures.
The desktop form factor alternative allows placement on shelves or desks with rubber feet for stability. The fanless design not only ensures quiet operation but also eliminates moving parts that could fail, contributing to the switch's reliability in continuous operation environments.
- Width
- 8.23" (209 mm)
- Depth
- 4.96" (126 mm)
- Height
- 1.02" (26 mm)
Highlights
- 8 Gigabit Ethernet ports with PoE+ support (IEEE 802.3at)
- 61W total PoE budget for powering multiple devices simultaneously
- 2 SFP slots for fiber uplink connectivity
- Layer 2 managed switch with comprehensive feature set
- Fanless design for silent operation in office environments
- Rack-mountable 1U form factor (also desktop mountable)
- Silver aluminum chassis with professional appearance
- Supports twisted pair and optical fiber media types
- IEEE 802.3az Energy Efficient Ethernet compliance
- Omada Pro ecosystem compatibility for centralized management
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | S4500-8GP2F |
| Brand Name | Omada Pro |
| Product Model | S4500-8GP2F |
| Product Name | Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE802.3af,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 61 W |
| Input Voltage | 53.5 V DC |
| Power Source | DC,Power Supply,PoE |
| Power Consumption | 77.80 W |
| Physical Characteristics | |
| Product Color | Silver |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.02" (26 mm) |
| Width | 8.23" (209 mm) |
| Depth | 4.96" (126 mm) |
User Manual
FAQ
How many devices can this switch power simultaneously with PoE+?
The S4500-8GP2F has a total PoE budget of 61 watts distributed across its eight PoE+ ports. This allows simultaneous powering of multiple PoE+ devices such as wireless access points, IP cameras, or VoIP phones, with each port capable of delivering up to 30 watts. The actual number of devices depends on their individual power requirements, but the switch intelligently manages power allocation to prevent overload.
What types of SFP modules are compatible with this switch?
The two SFP slots support standard Gigabit SFP modules for 1000Base-X connections. Compatible modules include both copper and fiber options, such as 1000BASE-SX for multimode fiber, 1000BASE-LX for single-mode fiber, and 1000BASE-T for copper connections. These slots enable fiber uplinks for extended distance connections or high-bandwidth backbone links between switches in different locations.
Can this switch be managed remotely?
Yes, as a Layer 2 managed switch, the S4500-8GP2F supports remote management through multiple methods. It can be configured via web interface, command line interface (CLI), or SNMP. When integrated into the Omada Pro ecosystem, it enables centralized cloud management for simplified oversight of multiple switches from a single dashboard, including configuration, monitoring, and firmware updates.
What is the advantage of the fanless design?
The fanless design provides completely silent operation, making the switch ideal for office environments, classrooms, or retail spaces where noise reduction is important. It also improves reliability by eliminating moving parts that could fail over time, reduces dust accumulation inside the chassis, and lowers maintenance requirements. The passive cooling system efficiently dissipates heat through the aluminum chassis.
What networking standards does this switch support?
The switch complies with comprehensive IEEE standards including 802.3i/u/ab/z for Ethernet, 802.3af/at for PoE, 802.1D for Spanning Tree Protocol, 802.1p for QoS prioritization, 802.1Q for VLAN tagging, 802.1s/w for rapid spanning tree, 802.1x for network access control, 802.3ad for link aggregation, and 802.3az for Energy Efficient Ethernet. This standards compliance ensures interoperability with existing network equipment and future-proof operation.
What are the physical dimensions and mounting options?
The switch measures 1.02 inches in height, 8.23 inches in width, and 4.96 inches in depth (26 mm x 209 mm x 126 mm). It supports both rack mounting in standard 19-inch racks using the included hardware (occupying 1U of vertical space) and desktop placement with rubber feet. The compact dimensions make it suitable for space-constrained installations while the silver aluminum chassis provides a professional appearance.
