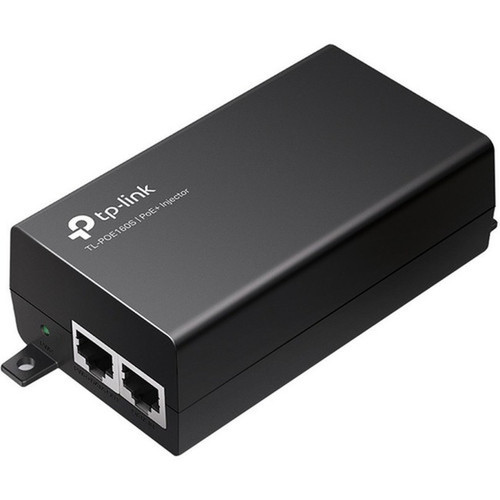

TP-LINK TL-POE160S PoE+ Injector - 30W - 802.3at/af - Gigabit - Desktop/Wall Mountable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for efficiency, the TL-POE160S incorporates Gigabit Ethernet ports (10/100/1000 Mbps) to maintain high-speed data transmission without bottlenecks. The auto-detect feature intelligently identifies connected PoE devices and supplies the appropriate power level—up to 30W for PoE+ (802.3at) devices or 15.4W for standard PoE (802.3af) devices.
Certifications include IEEE 802.3i/u/ab/af/at, CE, and FCC, ensuring compliance with industry standards for safety and interoperability. The unit is RoHS-compliant, reflecting TP-Link's commitment to environmental responsibility.
Relevant factors for this section include Input Voltage, Maximum Output Power, Input Ports, Output Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TL-POE160S eliminates the need for costly PoE switch upgrades by converting standard Ethernet connections into powered links. Its plug-and-play design requires no software configuration, reducing setup time and technical overhead.
Extended Deployment Range
Delivers power and data up to 100 meters, enabling device placement in areas without accessible power outlets, such as ceilings, walls, or outdoor locations.
Broad Compatibility
Works with all IEEE 802.3af/at compliant devices, including TP-Link's TL-POE10R splitter, ensuring seamless integration into diverse network environments.
Flexible Mounting Options
Supports both desktop and wall mounting, with a compact black enclosure that blends discreetly into office or industrial settings.
Deployment / Use Cases
Ideal for expanding network capabilities in scenarios where power access is limited or impractical. The TL-POE160S is commonly deployed to support IP surveillance systems, allowing cameras to be installed in optimal locations without separate power wiring.
In wireless networking, it powers access points in hard-to-reach areas, enhancing Wi-Fi coverage in large buildings, warehouses, or campuses. For VoIP deployments, it simplifies phone installations by combining power and data over a single cable, reducing clutter and improving reliability.
Relevant factors for this section include Input Voltage, Maximum Output Power, Input Ports, Output Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a sleek black casing, the TL-POE160S measures 4.90 inches wide, 2.30 inches deep, and 1.40 inches high, with a weight that facilitates secure mounting. The wall-mountable design includes keyhole slots for easy installation, while the desktop form factor allows for placement on flat surfaces without dedicated hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.40" (35.56 mm), 4.90" (124.46 mm), 2.30" (58.42 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.90" (124.46 mm)
- Depth
- 2.30" (58.42 mm)
- Height
- 1.40" (35.56 mm)
Highlights
- Converts non-PoE switches to PoE-enabled without hardware replacement
- Delivers up to 30W of power with 802.3at/af compliance
- Features Gigabit Ethernet ports for high-speed data transmission
- Auto-detect technology ensures compatibility with PoE and PoE+ devices
- Plug-and-play setup requires no configuration or software
- Supports power delivery up to 100 meters (328 feet)
- Dual-voltage input (120V/230V AC) for global use
- Desktop and wall-mountable design for flexible installation
- RoHS-compliant and backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-POE160S |
| Brand Name | TP-Link |
| Product Name | PoE+ Injector |
| Product Type | PoE Injector |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Power | 30 W |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Desktop/Wall Mountable |
| Mount Type | Wall-mountable/Desk-mountable |
| Height | 1.40" (35.56 mm) |
| Width | 4.90" (124.46 mm) |
| Depth | 2.30" (58.42 mm) |
| Miscellaneous | |
| Compatibility | TP-Link TL-POE10R PoE Splitter All IEEE 802.3af/at PoE Compliant Powered Devices or PoE Receiver Adapters |
| Certifications & Standards | IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at CE FCC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the maximum power output of the TL-POE160S?
The TL-POE160S delivers up to 30 watts of power, compliant with the IEEE 802.3at (PoE+) standard. It also supports backward compatibility with 802.3af devices, automatically adjusting power output to 15.4 watts as needed.
Does this injector work with Gigabit Ethernet speeds?
Yes, it includes one Gigabit input port and one Gigabit output port, both supporting 10/100/1000 Mbps speeds. This ensures full bandwidth utilization without compromising network performance for connected devices.
Can I use the TL-POE160S with non-PoE switches?
Absolutely. This injector is designed specifically to add PoE capability to existing non-PoE network equipment. Simply connect it between your switch and the PoE device to enable power-over-Ethernet functionality.
What types of devices are compatible with this PoE injector?
It is compatible with all IEEE 802.3af and 802.3at compliant devices, such as IP cameras, wireless access points, VoIP phones, and PoE splitters like the TP-Link TL-POE10R. The auto-detect feature ensures safe power delivery to supported equipment.
How far can power and data be transmitted?
Power and data can be transmitted up to 100 meters (328 feet) over standard Ethernet cable. This extended range is ideal for deploying devices in large areas or locations without nearby power outlets.
Is the TL-POE160S easy to install and configure?
Yes, it features plug-and-play operation with no software installation or configuration required. The compact design supports both desktop placement and wall mounting, making setup straightforward for various environments.
