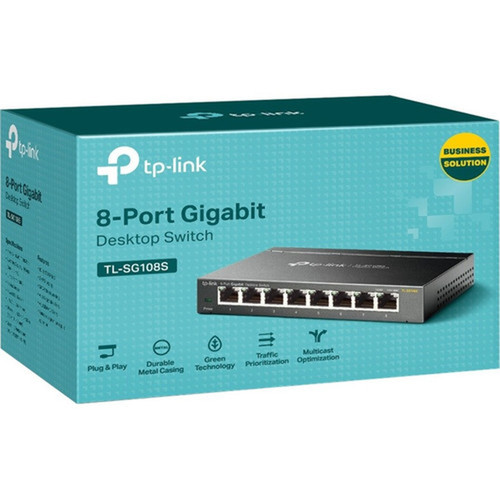

TP-LINK TL-SG108S 8-Port Gigabit Desktop Switch - Layer 2 - Unmanaged - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TL-SG108S delivers Gigabit Ethernet performance across all eight ports, supporting data transfer rates up to 1000 Mbps for fast file sharing and smooth multimedia streaming. It is compatible with 10/100/1000Base-T network standards, ensuring backward compatibility with older Ethernet devices while maximizing throughput on modern equipment.
Layer 2 switching support enables basic traffic management at the data link layer, improving network efficiency by reducing collisions and segmenting broadcast domains. The switch uses twisted pair cabling, such as Cat5e or Cat6, for connections up to 100 meters, providing reliable high-speed data transfer over standard Ethernet infrastructure.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch combines essential networking features with a user-friendly design, offering several advantages for deployment in compact or budget-conscious setups.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Simplified Connectivity, Efficient Layer 2 Operation.
Simplified Connectivity
With eight Gigabit ports, the TL-SG108S easily expands network capacity for multiple devices, eliminating the need for additional routers or complex configurations.
- Plug-and-play operation
- No software setup required
- Ideal for non-technical users
Efficient Layer 2 Operation
Layer 2 support enhances network performance by managing data flow at the MAC address level, reducing packet collisions and improving overall reliability for small-scale networks.
- Basic traffic segmentation
- Reduced broadcast storms
- Improved data transfer efficiency
Deployment / Use Cases
The TL-SG108S is well-suited for environments where simple, reliable wired connectivity is a priority over advanced management features. Its desktop and wall-mount options provide installation flexibility in space-constrained areas.
Common use cases include small office networks for connecting workstations and shared printers, home offices requiring stable connections for remote work devices, and retail point-of-sale systems linking multiple terminals to a central server. The switch also serves as an effective backbone for media streaming setups or gaming consoles where consistent low-latency performance is desired.
Small Office Expansion
Deploy this switch to add wired ports for additional computers, VoIP phones, or network printers in offices with limited IT resources.
Home Network Hub
Use it as a central connection point for smart TVs, gaming consoles, and NAS devices, ensuring high-speed data transfers for media and backups.
Physical Profile
The switch features a compact design measuring 6.22 inches wide, 3.98 inches deep, and 0.98 inches high, with a lightweight build that facilitates easy placement on desktops or mounting on walls. Its slim profile minimizes desk space usage, while the included mounting holes allow for secure installation in cabinets or under desks to keep workspaces organized.
- Width
- 6.22" (158 mm)
- Depth
- 3.98" (101 mm)
- Height
- 0.98" (25 mm)
Highlights
- 8 Gigabit Ethernet ports for connecting multiple wired devices
- Layer 2 switching support for improved network efficiency
- Unmanaged plug-and-play operation with no configuration needed
- 10/100/1000Base-T compatibility for versatile network integration
- Desktop and wall-mountable form factor for flexible installation
- Uses standard twisted pair cabling for cost-effective deployments
- Compact design with minimal power consumption
- Backed by a 3-year limited warranty for reliable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG108S |
| Brand Name | TP-Link |
| Product Model | TL-SG108S |
| Product Name | 8-Port 10/100/1000Mbps Desktop Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 0.98" (25 mm) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many devices can I connect to the TL-SG108S switch?
The TL-SG108S provides eight Gigabit Ethernet ports, allowing you to connect up to eight wired devices directly. This includes computers, printers, network storage, gaming consoles, or smart home hubs. For larger networks, you can daisy-chain additional switches, though performance may vary based on total traffic.
Does this switch support Power over Ethernet (PoE)?
No, the TL-SG108S does not support Power over Ethernet. It is a standard unmanaged switch that requires separate power via the included adapter. If you need PoE to power devices like IP cameras or wireless access points, consider a PoE-enabled switch model from TP-Link's product lineup.
What is Layer 2 support, and how does it benefit my network?
Layer 2 support refers to data link layer switching, which manages traffic based on MAC addresses. In this switch, it helps reduce network collisions and segment broadcast traffic, improving efficiency and stability for small networks. It does not offer advanced features like VLANs or QoS found in managed Layer 2+ switches.
Can I mount the TL-SG108S on a wall?
Yes, the switch is designed for both desktop use and wall mounting. It includes mounting holes on the bottom, allowing secure installation on vertical surfaces. This flexibility helps save desk space and organize cables in tight environments like network closets or under desks.
Is the TL-SG108S a managed or unmanaged switch?
The TL-SG108S is an unmanaged switch. It operates on a plug-and-play basis with no configuration interface, software, or management capabilities. This makes it ideal for users who need simple, reliable connectivity without IT overhead, though it lacks features like remote monitoring or traffic prioritization.
What type of cables should I use with this switch?
Use standard twisted pair Ethernet cables, such as Cat5e, Cat6, or Cat6a, for optimal performance. The switch supports 10/100/1000Base-T standards, ensuring compatibility with most modern cabling. For Gigabit speeds, ensure cables are properly terminated and avoid exceeding the 100-meter maximum distance per segment.
