TP-LINK TL-SG116E 16-Port Gigabit Unmanaged Pro Switch - Layer 2 - Desktop/Wall Mount - 9.19W Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2 of the OSI model, supporting key networking standards including IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1Q, and 802.1p for reliable Ethernet communication and basic Quality of Service (QoS) prioritization. All 16 ports are standard Gigabit Ethernet RJ-45 connectors that auto-negotiate speed and duplex settings with connected devices.
The switch features a compact physical profile measuring 1" (25.40 mm) in height, 11.30" (287.02 mm) in width, and 4.40" (111.76 mm) in depth, making it suitable for space-constrained environments. With a power consumption of just 9.19W, it incorporates energy-efficient technology that reduces operational costs while maintaining full performance across all connected devices.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SG116E combines essential networking functionality with operational simplicity, making it an ideal choice for environments where technical expertise may be limited. Its straightforward deployment and reliable performance ensure networks remain operational with minimal maintenance requirements.
Zero-Configuration Operation
As an unmanaged switch, this device requires no setup or management software. Simply connect your network cables and power to begin expanding your network immediately.
- Plug-and-play installation
- No software configuration needed
- Automatic network detection
Energy-Efficient Design
Advanced power management technology automatically adjusts power consumption based on cable length and link status, reducing energy usage by up to 70% compared to standard switches.
- 9.19W maximum power consumption
- Automatic power adjustment
- RoHS compliant construction

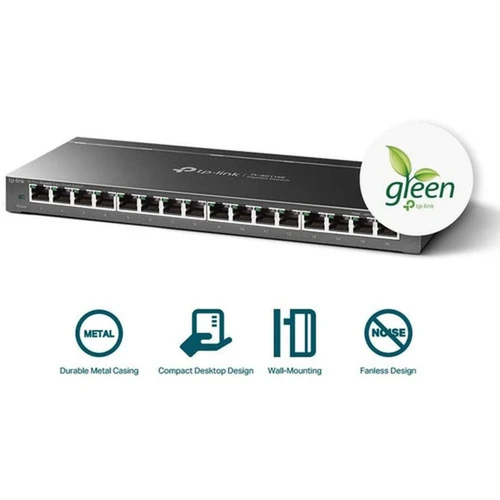

Durable Construction
The metal housing provides superior heat dissipation and physical protection compared to plastic alternatives, ensuring reliable operation in various environmental conditions.
- Metal casing for durability
- Professional appearance
- Enhanced heat management
Deployment / Use Cases
This switch is particularly well-suited for small business environments where expanding network connectivity without adding complexity is essential. Its 16-port configuration provides ample connections for workstations, printers, IP phones, and other network devices in a single centralized location.
The desktop and wall-mountable form factor offers flexible placement options, making it ideal for retail point-of-sale systems, small office workgroups, educational computer labs, and home office networks. The unmanaged operation ensures reliable performance without requiring dedicated IT staff for configuration or ongoing management.
Small Office Network Expansion
Connect multiple workstations, network printers, and VoIP phones in a compact office environment where a simple, reliable switch is needed without advanced management features.
Retail & Point-of-Sale Systems
Support multiple POS terminals, receipt printers, and inventory management systems with Gigabit connectivity for fast transaction processing and inventory updates.
Physical Profile
The switch features a low-profile design at just 1" tall, allowing it to fit easily on crowded desks or in shallow network cabinets. The included rubber feet provide stable desktop placement, while the wall-mountable design offers alternative installation options for space optimization. The metal construction ensures durability while the compact 11.30" x 4.40" footprint minimizes the required installation space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 11.30" (287.02 mm), 4.40" (111.76 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.30" (287.02 mm)
- Depth
- 4.40" (111.76 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The package includes everything needed for immediate deployment and installation of the switch in your network environment.
Highlights
- 16 Gigabit Ethernet ports for network expansion
- Plug-and-play operation with no configuration required
- Layer 2 switching with IEEE 802.1Q/802.1p support
- Durable metal casing for professional appearance and heat dissipation
- Energy-efficient design with 9.19W maximum power consumption
- Desktop or wall-mountable form factor for flexible placement
- 10/100/1000Base-T auto-negotiation on all ports
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for peace of mind
- Compact dimensions: 1"H x 11.30"W x 4.40"D
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG116E |
| Brand Name | TP-Link |
| Product Model | TL-SG116E |
| Product Name | 16-Port Gigabit Unmanaged Pro Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Power Consumption | 9.19 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 11.30" (287.02 mm) |
| Depth | 4.40" (111.76 mm) |
| Miscellaneous | |
| Package Contents | 16-Port Gigabit Unmanaged Pro Switch Power Cord Installation Guide Rubber Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many devices can I connect to this TP-Link switch?
The TL-SG116E provides 16 Gigabit Ethernet ports, allowing you to connect up to 16 network devices simultaneously. This includes computers, printers, network storage devices, IP phones, and other Ethernet-enabled equipment in your office or small business environment.
Does this switch support Power over Ethernet (PoE)?
No, this is a standard Gigabit Ethernet switch that does not provide Power over Ethernet capabilities. The TL-SG116E requires connected devices to have their own power sources, as it only transmits data signals through its Ethernet ports without delivering electrical power to connected equipment.
What does 'Layer 2 supported' mean for this switch?

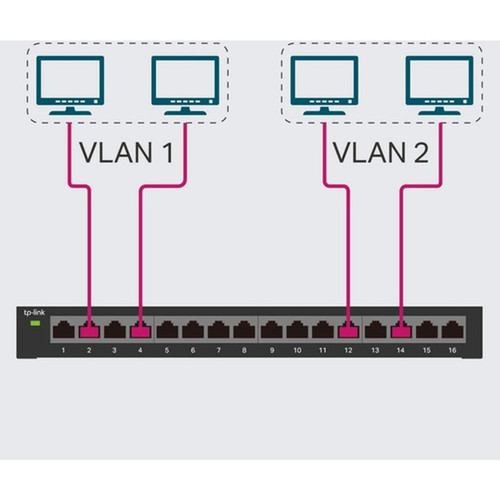

Layer 2 support indicates this switch operates at the data link layer of the OSI model, using MAC addresses to forward network traffic between connected devices. This provides basic switching functionality including VLAN support (IEEE 802.1Q) and traffic prioritization (IEEE 802.1p) for improved network efficiency in small office environments.
Can this switch be mounted on a wall or in a rack?
Yes, the TL-SG116E supports both desktop placement and wall mounting. The switch includes mounting holes on its underside for wall installation, and its compact 1-inch height makes it suitable for placement in shallow spaces. While not specifically designed for rack mounting, it can be placed on rack shelves in network cabinets.
What is the power consumption of this network switch?
The switch has a maximum power consumption of 9.19 watts, making it highly energy-efficient for a 16-port Gigabit switch. This low power draw results from TP-Link's green technology that automatically adjusts power usage based on cable length and connection status, reducing energy costs in always-on network environments.
What warranty coverage does TP-Link provide for this switch?
TP-Link offers a 3-year limited warranty for the TL-SG116E switch, covering defects in materials and workmanship under normal use. This warranty provides assurance of product reliability and manufacturer support for small business deployments where network uptime is essential for daily operations.
