Product Features
Technical Overview
The TL-SG2008 features eight auto-negotiating 10/100/1000 Mbps RJ45 ports that support standard twisted pair Ethernet cabling. The switch operates at Layer 2 of the OSI model, supporting essential switching functions including MAC address learning, frame forwarding, and basic traffic management.
Network standards compliance includes IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3x, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1p, and 802.1x, ensuring interoperability with a wide range of network devices and supporting features like VLAN tagging, priority queuing, and port-based authentication.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The TL-SG2008 combines essential management capabilities with straightforward deployment in a compact, energy-efficient package. This switch provides the right balance of features for growing networks that need more control than unmanaged switches offer but don't require enterprise-level complexity.
Omada SDN Integration
When used with TP-Link's Omada SDN ecosystem, this switch can be centrally managed alongside Omada access points and gateways through a single interface, either via hardware controller, software controller, or cloud access.
- Centralized management
- Multiple control options
- Cloud access capability
Advanced Network Features
Beyond basic switching, the TL-SG2008 includes VLAN support for network segmentation, QoS for traffic prioritization, link aggregation for bandwidth combining, and comprehensive security features including 802.1X authentication and ACL controls.
- 802.1Q VLAN
- L2/L3/L4 QoS
- Link Aggregation
Deployment / Use Cases
The TL-SG2008 is ideally suited for small office networks, retail environments, and educational settings where reliable Gigabit connectivity with basic management features is required. Its compact desktop form factor makes it suitable for placement on desks, shelves, or in network cabinets with limited space.
Common deployment scenarios include connecting workstations, printers, IP phones, and wireless access points in small business environments. The switch works well as an access layer switch in networks with 8 or fewer wired devices, or as a distribution switch in very small networks. The low power consumption makes it suitable for always-on operation in energy-conscious environments.
Small Office Network Core
Serve as the central switching point for a small office with 8 or fewer wired devices, providing Gigabit connectivity to all connected equipment with basic traffic management capabilities.
Branch Office Expansion
Extend network connectivity in satellite offices or remote locations where a simple, managed switching solution is needed without complex configuration requirements.

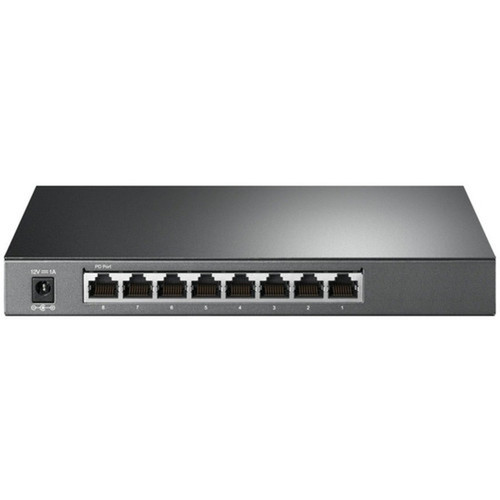

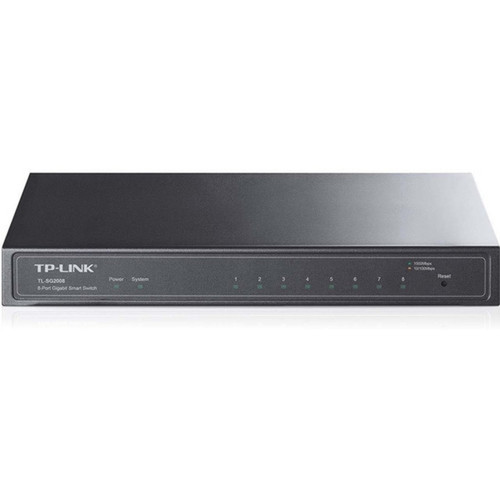

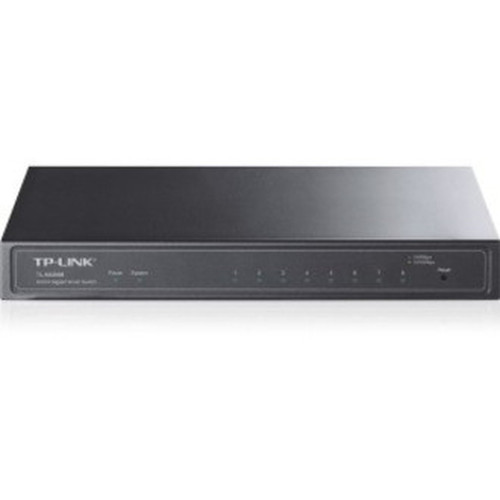

Physical Profile
The TL-SG2008 features a compact desktop form factor measuring 8.20" wide × 4.90" deep × 1" high (208.28 mm × 124.46 mm × 25.40 mm). The switch includes rubber feet for stable placement on desks or shelves and can also be rack-mounted using optional mounting brackets (not included). The small footprint makes it suitable for space-constrained environments while the low-profile design allows for flexible placement in various office settings.
- Width
- 8.20" (208.28 mm)
- Depth
- 4.90" (124.46 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The TL-SG2008 package includes everything needed for basic installation and operation.
Highlights
- 8 Gigabit Ethernet ports (10/100/1000 Mbps) for high-speed network connections
- Layer 2 managed switch with VLAN, QoS, and security features
- Integrates with TP-Link Omada SDN for centralized management
- Cloud access capability for remote network management
- Advanced security including 802.1Q VLAN and 802.1X authentication
- Low 6.40W power consumption for energy-efficient operation
- Compact desktop form factor with small footprint
- 5-year limited warranty with lifetime protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SG2008 |
| Brand Name | TP-Link |
| Product Model | TL-SG2008 |
| Product Name | 8-Port Gigabit Smart Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Adapter,PoE |
| Redundant Power Supply Supported | No |
| Power Consumption | 6.40 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1" (25.40 mm) |
| Width | 8.20" (208.28 mm) |
| Depth | 4.90" (124.46 mm) |
| Miscellaneous | |
| Package Contents | 8-Port Gigabit Smart Switch Power Adapter Quick Installation Guide Resource CD Rubber Feet |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
How many devices can I connect to this switch?
The TP-Link TL-SG2008 provides eight Gigabit Ethernet ports, allowing you to connect up to eight wired network devices simultaneously. Each port supports auto-negotiation for 10/100/1000 Mbps connections, making it suitable for connecting computers, printers, IP phones, and other network equipment in small office environments.
Does this switch support Power over Ethernet (PoE)?
No, the TL-SG2008 does not include Power over Ethernet capability. The switch requires external power via the included power adapter and cannot provide power to connected devices such as wireless access points or IP phones. For PoE requirements, consider TP-Link's PoE switch models specifically designed for power delivery over Ethernet cables.
What management features does this smart switch offer?
As a Layer 2 managed switch, the TL-SG2008 supports VLAN configuration (802.1Q), Quality of Service (QoS) for traffic prioritization, link aggregation for bandwidth combining, and various security features including port security, ACLs, and 802.1X authentication. The switch can be managed through a web interface and integrates with TP-Link's Omada SDN platform for centralized control when used with compatible Omada devices.
Can this switch be rack-mounted?
The TL-SG2008 comes in a desktop form factor with rubber feet for placement on flat surfaces. While the switch itself is not rack-ready out of the box, TP-Link offers optional rack-mount brackets that can be purchased separately to install the switch in standard 19-inch network racks. The compact dimensions make it suitable for both desktop and rack deployment in space-constrained environments.
What is the power consumption of this switch?
The TL-SG2008 has a maximum power consumption of 6.40 watts, making it an energy-efficient choice for always-on network operation. The low power draw contributes to reduced operating costs and makes the switch suitable for deployment in energy-conscious environments. Power is supplied via the included external power adapter.
Does this switch support fiber optic connections?
No, the TL-SG2008 features only RJ45 copper Ethernet ports and does not include SFP slots for fiber optic connections. All eight ports support standard twisted pair Ethernet cabling up to 100 meters. For networks requiring fiber connectivity, consider TP-Link switches with SFP uplink ports or dedicated fiber switches designed for longer distance connections.
