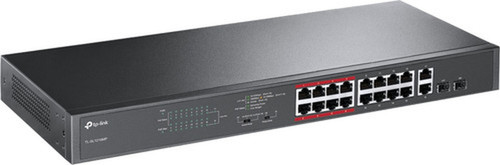

TP-LINK TL-SL1218MP 16-Port PoE+ Fast Ethernet + 2-Port Gigabit Unmanaged Switch with 2 SFP Slots - 250W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 unmanaged switch supports Fast Ethernet and Gigabit Ethernet technologies across twisted pair and optical fiber media, with network compatibility for 10/100Base-T, 10/100/1000Base-T, and 1000Base-X standards. It adheres to IEEE 802.3af, IEEE 802.3at, and IEEE 802.3x networking standards, ensuring interoperability with a wide range of PoE devices and network equipment.
The switch features a high PoE power budget of 250W, allocating up to 30W per PoE port and a total of 194W across all PoE ports, which is sufficient for powering multiple high-demand devices simultaneously. With a low power consumption of 15W, it offers energy-efficient operation, reducing operational costs in always-on environments.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TL-SL1218MP excels in providing a high-power PoE solution with minimal setup, featuring advanced modes tailored for specific applications. Its extend mode supports data and power transmission up to 250 meters, making it particularly effective for surveillance systems where long cable runs are common. Priority mode ensures quality of service for sensitive applications like video monitoring by prioritizing critical traffic, enhancing network performance without manual intervention.
High PoE Power Delivery
With a 250W PoE budget and support for up to 30W per port, this switch can power demanding PoE devices such as PTZ cameras and high-performance access points, eliminating the need for separate power injectors and simplifying cable management.
- 250W total PoE budget
- Up to 30W per PoE port
- 194W for all PoE ports combined
Easy Deployment
As an unmanaged switch, it requires no configuration or installation software, allowing for quick setup straight out of the box. This plug-and-play functionality reduces deployment time and technical overhead, ideal for non-technical users or rapid network expansions.
- No configuration needed
- Plug-and-play operation
- Reduces setup complexity
Deployment / Use Cases
This switch is well-suited for surveillance and security installations, where its extend mode and priority mode enhance video streaming reliability over extended distances. It efficiently powers and connects multiple IP cameras, NVRs, and monitoring stations, forming a cohesive network backbone for security systems in commercial buildings, warehouses, and educational campuses.
In office and retail environments, the TL-SL1218MP supports network expansion by connecting computers, printers, and VoIP phones while powering wireless access points for seamless Wi-Fi coverage. Its Gigabit uplinks and SFP slots enable high-speed connections to servers or network backbones, ensuring smooth data flow for business applications and customer transactions.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a durable metal chassis, the switch measures 1.73 inches in height, 17.32 inches in width, and 7.09 inches in depth, fitting neatly into a 1U rack space. Its rack-mountable design includes mounting brackets and fittings for secure installation in standard server racks or network cabinets, promoting organized cable management and efficient use of rack real estate. The compact form factor and robust construction ensure long-term reliability in varied environmental conditions.
- Width
- 17.32" (440 mm)
- Depth
- 7.09" (180 mm)
- Height
- 1.73" (44 mm)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box experience.
Highlights
- 16 Fast Ethernet PoE+ ports for powering devices like IP cameras and access points.
- 2 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP slots for high-speed uplinks and fiber connectivity.
- 250W PoE budget with up to 30W per port, supporting high-power PoE devices.
- Extend mode enables data and power transmission up to 250 meters for surveillance applications.
- Priority mode ensures quality of service for sensitive traffic like video monitoring.
- Unmanaged design for plug-and-play operation with no configuration required.
- 1U rack-mountable metal chassis for durable and space-efficient installation.
- Complies with RoHS environmental standards and includes a 3-year limited warranty.
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SL1218MP |
| Brand Name | TP-Link |
| Product Model | TL-SL1218MP |
| Product Name | 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Fast Ethernet PoE+,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Network Technology | 10/100Base-T,10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Power Source | Power Supply |
| Power Consumption | 15 W |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 7.09" (180 mm) |
| Miscellaneous | |
| Package Contents | 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch Power Cable Installation Guide 2 x Mounting Brackets and the Fittings |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many PoE ports does this switch have and what is the PoE budget?
The TP-LINK TL-SL1218MP has 16 Fast Ethernet PoE+ ports with a total PoE budget of 250W. This allows it to deliver up to 30W per PoE port, supporting high-power devices such as PTZ cameras and wireless access points without additional power sources. The switch efficiently manages power distribution across all ports, with up to 194W available for combined PoE usage.
What are the Gigabit and SFP port configurations on this switch?
This switch includes two Gigabit Ethernet RJ45 ports for high-speed network connections and two Gigabit SFP (mini-GBIC) slots for fiber optic uplinks or expansion. The SFP slots are shared, providing flexibility for connecting to fiber networks or extending reach beyond copper limitations, enhancing backbone connectivity in mixed-media environments.
Is this switch manageable and what networking standards does it support?
No, the TL-SL1218MP is an unmanaged switch, meaning it operates without configuration interfaces or management software for plug-and-play simplicity. It supports IEEE 802.3af and IEEE 802.3at for PoE, along with IEEE 802.3x for flow control, ensuring compatibility with standard Ethernet and PoE devices across various network setups.
What are the physical dimensions and rack compatibility of this switch?
The switch measures 1.73 inches in height, 17.32 inches in width, and 7.09 inches in depth, designed to fit into a standard 1U rack space. Its metal chassis is rack-mountable and includes mounting brackets for secure installation in server racks or network cabinets, making it suitable for organized deployments in data centers or office environments.
How does the extend mode and priority mode benefit surveillance systems?
Extend mode allows data and power transmission up to 250 meters, ideal for long-distance camera placements in surveillance systems. Priority mode guarantees quality of service by prioritizing traffic for sensitive applications like video monitoring, reducing latency and ensuring reliable video streams. These features enhance performance in security installations without manual tuning.
What is included in the package and what is the warranty?
The package includes the switch, a power cable, an installation guide, and two mounting brackets with fittings for complete setup. TP-LINK backs this product with a 3-year limited warranty, providing coverage for defects in materials and workmanship, and it complies with RoHS environmental standards for reduced hazardous substances.
