Product Features
Technical Overview

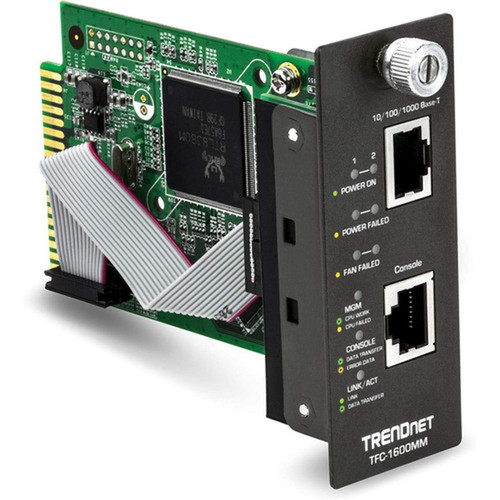

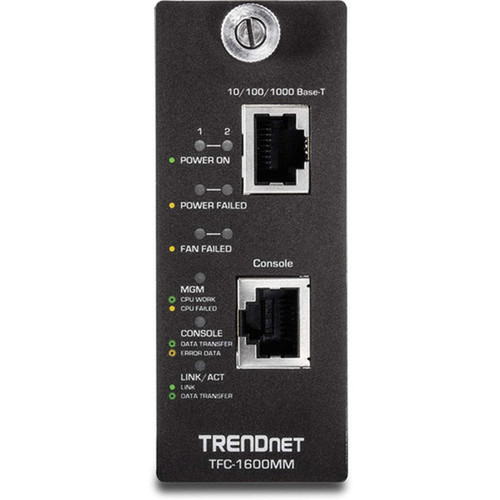

This management module features two ports, including one RJ-45 10/100Base-TX management port for network connectivity and an additional management interface. It utilizes SNMP (Simple Network Management Protocol) for port-based management, enabling real-time monitoring of link activity and converter speed across the TFC series fiber converters installed in the chassis.
The module is designed to fit seamlessly into the TFC-1600 chassis, providing a dedicated management slot that consolidates control functions. Its compatibility is strictly limited to the TFC-1600 16-slot chassis system, ensuring optimized performance and integration with TRENDnet's fiber converter ecosystem.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TFC-1600MM enhances network management efficiency by offering port-based control and SNMP support, which are critical for maintaining high availability in fiber converter deployments. Its TAA compliance ensures it meets U.S. and Canadian government procurement requirements, making it suitable for public sector and regulated industry use.
Centralized Management
Enables unified control and monitoring of up to 16 fiber converters from a single management module within the TFC-1600 chassis, reducing administrative overhead and simplifying network operations.
Real-Time Monitoring
Provides continuous visibility into port status, link activity, and converter performance, allowing for proactive network management and rapid issue resolution.
Deployment / Use Cases
This management module is ideal for environments where multiple TRENDnet TFC series fiber converters are deployed within a TFC-1600 chassis, such as data centers, enterprise network backbones, or industrial networking applications. It provides the necessary management capabilities to monitor and control fiber converter links, ensuring reliable connectivity between network segments.
Common use cases include extending network distances with fiber converters while maintaining manageability, consolidating management functions for fiber converter arrays, and implementing SNMP-based monitoring for network infrastructure that includes fiber media conversion. The module supports network teams in maintaining uptime and performance across fiber-based links.
Physical Profile
The TFC-1600MM module has a compact form factor measuring 3 inches in height, 8 inches in width, and 6 inches in depth (76.20 mm x 203.20 mm x 152.40 mm), with an approximate weight of 1.19 pounds (538.87 grams). It is designed to slot into the TFC-1600 chassis, providing a secure and integrated fit that maintains the chassis's structural integrity and airflow management.
- Width
- 8" (203.20 mm)
- Depth
- 6" (152.40 mm)
- Height
- 3" (76.20 mm)
- Weight
- 1.19 lb (538.87 g)
Highlights
- SNMP management module for TFC-1600 16-slot chassis
- Compatible with TFC series fiber converters
- 2-port design with RJ-45 10/100Base-TX management port
- Supports port-based management and real-time monitoring
- Enables link activity and converter speed monitoring
- TAA compliant for U.S. and Canadian government procurement
- Compact dimensions: 3" H x 8" W x 6" D
- Manufactured in Taiwan with 1-year limited lifetime warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TFC-1600MM |
| Brand Name | TRENDnet |
| Product Model | TFC-1600MM |
| Product Name | Management Module for TFC-1600 |
| Product Condition | New |
| Product Type | Management Module |
| Technical Information | |
| Application/Usage | Network Management |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45 10/100Base-TX Management,1 x Management |
| Physical Characteristics | |
| Height | 3" (76.20 mm) |
| Width | 8" (203.20 mm) |
| Depth | 6" (152.40 mm) |
| Weight (Approximate) | 1.19 lb (538.87 g) |
| Miscellaneous | |
| Compatibility | TFC-1600 16-Slot Chassis System for TFC series Fiber Converter |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year Lifetime |
User Manual
FAQ
What chassis is the TFC-1600MM management module compatible with?
The TFC-1600MM is specifically designed for the TRENDnet TFC-1600 16-slot chassis system, which houses TFC series fiber converters. It is not compatible with other chassis models or standalone units, ensuring optimized integration and management capabilities within this dedicated fiber converter platform.
How many ports does the TFC-1600MM management module have?
This management module features two ports. One is an RJ-45 10/100Base-TX management port for network connectivity, and the other is an additional management interface. These ports support the module's SNMP-based management functions for monitoring and controlling the fiber converters in the chassis.
What management capabilities does the TFC-1600MM provide?
The TFC-1600MM supports SNMP (Simple Network Management Protocol) for port-based management, enabling real-time monitoring of link activity and converter speed across the TFC series fiber converters. It allows network administrators to centrally manage up to 16 converters from a single interface, providing visibility and control over port status and performance.
Is the TFC-1600MM TAA compliant?
Yes, the TFC-1600MM is TAA compliant, meaning it meets the Trade Agreements Act requirements for procurement in the U.S. and Canada. This compliance ensures the module is suitable for use in government and public sector projects that require adherence to these regulations.
What are the physical dimensions of the TFC-1600MM module?
The module measures 3 inches in height, 8 inches in width, and 6 inches in depth (76.20 mm x 203.20 mm x 152.40 mm), with an approximate weight of 1.19 pounds (538.87 grams). Its compact size is designed to fit into the management slot of the TFC-1600 chassis without obstructing other components.
What warranty does the TFC-1600MM management module come with?
The TFC-1600MM includes a 1-year limited lifetime warranty from TRENDnet. This warranty covers defects in materials and workmanship under normal use, providing assurance of product reliability and support for network deployments that depend on this management module.
