TRENDnet TEW-830MDR2K-CA AC2200 Wi-Fi 5 Dual-Band Mesh Router System - 2-Pack - 275 MB/s - Gigabit Ethernet - USB - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This mesh router system is built on Wi-Fi 5 (802.11ac) foundations, utilizing simultaneous dual-band operation to maximize throughput and reduce interference. The 2.40 GHz band provides broader coverage for general web browsing and IoT devices, while the 5 GHz band handles bandwidth-intensive tasks like HD video streaming and large file transfers with lower latency. A dedicated Gigabit Ethernet WAN port connects to your modem or upstream network, and a Gigabit LAN port supports wired devices such as desktop PCs, network-attached storage, or gaming consoles.
The integrated USB 2.0 port enables basic network sharing of printers or storage drives, adding convenience for small office or home office environments. Each unit measures 4.96 inches square and 2.36 inches deep, with a weight of 372 grams, making it discreet and easy to position. The system’s mesh capability allows the two routers to communicate wirelessly, creating a unified network SSID and seamlessly handing off clients as they move throughout the coverage area.
Key Product Advantages
The TEW-830MDR2K-CA mesh router system eliminates common Wi-Fi pain points by extending reliable coverage without complex configuration. Its dual-router design ensures consistent signal strength across larger areas, reducing dead zones and maintaining connection stability for video calls, streaming, and data transfers. The inclusion of wall-mount screws and a compact form factor provides installation flexibility, allowing you to place units optimally for coverage while keeping workspaces tidy.
Seamless Roaming
Clients automatically connect to the router with the strongest signal as they move, maintaining uninterrupted connectivity throughout the covered area.
- Unified network name (SSID)
- Automatic client handoff
- No manual reconnection needed
Dual-Band Efficiency
Simultaneous 2.4 GHz and 5 GHz operation allocates traffic intelligently, dedicating the faster 5 GHz band to high-priority tasks while using 2.4 GHz for broader coverage.
- Reduces congestion
- Optimizes performance for different devices
- Maximizes available bandwidth
Deployment / Use Cases
This two-pack mesh system is ideal for environments where a single wireless router cannot adequately cover the entire area. In small to medium offices, the routers can be placed in separate rooms or floors to ensure strong Wi-Fi in conference rooms, workstations, and common areas. For residential use, it effectively covers multi-story homes, eliminating weak signals in bedrooms, basements, or backyard offices.
The wall-mount capability makes it suitable for retail spaces, clinics, or classrooms where desktop space is limited or aesthetics are important. The Gigabit Ethernet ports allow for wired backhaul connections between routers if preferred, or for connecting stationary devices that benefit from the stability and speed of a physical link. With easy setup via the included quick installation guide, this system deploys quickly without requiring advanced networking knowledge.
Physical Profile
Each router features a compact, square chassis measuring 4.96 inches in width and depth, with a slim 2.36-inch profile. The lightweight 372-gram design and included wall-mount screws enable flexible placement on a desk, shelf, or mounted vertically on a wall or ceiling tile. The neutral styling blends into most environments, and the small footprint minimizes visual clutter while providing adequate ventilation for sustained operation.
- Width
- 4.96" (126 mm)
- Depth
- 2.36" (60 mm)
- Height
- 4.96" (126 mm)
- Weight
- 372 g
What's in the Box
The package includes everything needed for immediate deployment of a two-unit mesh Wi-Fi system.
Highlights
- Dual-band Wi-Fi 5 (802.11ac) mesh router system with two units for expanded coverage
- Aggregate wireless speeds up to 275 MB/s across 2.4 GHz and 5 GHz bands
- Gigabit Ethernet WAN and LAN ports for high-speed wired connections
- USB port for network sharing of printers or storage devices
- Wall-mountable design with included hardware for flexible placement
- Compact dimensions (4.96" x 4.96" x 2.36") and lightweight 372-gram build
- Includes two routers, power adapters, network cables, and mounting screws
- 3-year limited warranty and RoHS/WEEE environmental compliance
- Simplifies setup with unified SSID and seamless client roaming
- Ideal for small offices, multi-story homes, and retail spaces
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEW-830MDR2K-CA |
| Brand Name | TRENDnet |
| Product Model | TEW-830MDR2K |
| Product Name | AC2200 WiFi Mesh Router System(2 pack) |
| Packaged Quantity | 2 |
| Product Type | Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet |
| Wireless LAN Standard | IEEE 802.11ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Total Wireless Transmission Speed | 275 MB/s |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| USB | Yes |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Desktop |
| Height | 4.96" (126 mm) |
| Width | 4.96" (126 mm) |
| Depth | 2.36" (60 mm) |
| Weight (Approximate) | 372 g |
| Miscellaneous | |
| Package Contents | AC2200 WiFi Mesh Router System Quick Installation Guide 2 x Network Cable 0.5m (1.6 ft.) 2 x Power Adapter (12V DC, 1.5A) Wall Mount Screws |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the total wireless speed of this TRENDnet mesh router system?
The TRENDnet TEW-830MDR2K-CA AC2200 system delivers aggregate wireless speeds up to 275 MB/s. This throughput is achieved by combining the performance of both the 2.4 GHz and 5 GHz bands using IEEE 802.11ac (Wi-Fi 5) technology, supporting smooth HD video streaming, fast file transfers, and reliable connectivity for multiple devices simultaneously.
How many routers are included in this package?
This is a two-pack mesh system, containing two identical AC2200 Wi-Fi 5 routers. Both units work together to create a unified wireless network, extending coverage and eliminating dead zones. Each router can operate independently or as part of the mesh, and the package includes all necessary cables, power adapters, and mounting hardware for both units.
Does this router support both 2.4 GHz and 5 GHz bands?
Yes, this is a dual-band router system that operates on both the 2.40 GHz ISM band and the 5 GHz UNII band. The 2.4 GHz band offers longer range and better wall penetration for general use, while the 5 GHz band provides higher speeds and less interference for bandwidth-intensive activities. The system uses both bands simultaneously to optimize performance and device connectivity.
Can I mount these routers on a wall?
Yes, each router is designed for wall mounting and includes the necessary screws in the package. The compact, square form factor allows for vertical or horizontal mounting on drywall, studs, or ceiling tiles. This flexibility helps position the routers for optimal coverage while keeping them out of the way on desks or shelves, making it ideal for offices, retail spaces, or homes with limited surface area.
What wired connectivity options are available?

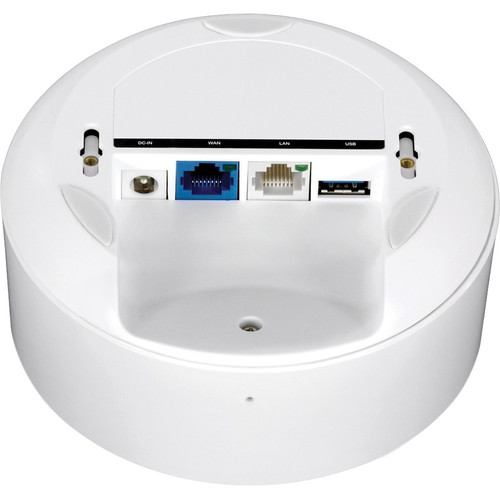

Each router includes one Gigabit Ethernet WAN port for connecting to your modem or upstream network, and one Gigabit Ethernet LAN port for wired devices like computers, printers, or game consoles. These ports support speeds up to 1000 Mbps, ensuring fast and stable connections for tasks that benefit from wired reliability, such as large file transfers, video conferencing, or online gaming.
What is included in the box with this mesh system?
The package contains two AC2200 Wi-Fi 5 mesh routers, two power adapters (12V DC, 1.5A each), two 0.5-meter (1.6-foot) network cables, a quick installation guide, and wall-mount screws. This complete set provides everything needed to set up and deploy the two-router mesh system immediately, with no additional purchases required for basic installation.
