TRENDnet TI-BE200 2-Port Industrial Outdoor Gigabit PoE++ Extender - IP67 Hardened - Wall Mount - 60W Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This extender leverages IEEE 802.3bt (PoE++) technology to deliver up to 60W of power per port, supporting high-power devices like PTZ cameras and multi-radio access points. It accepts one Gigabit PoE++ input and provides two Gigabit outputs: one PoE+ (30W) and one PoE++ (60W), allowing flexible device connectivity. The unit operates without an external power adapter, drawing all necessary power from the upstream PoE++ switch or injector.
Certifications include CE, FCC, and multiple IEC standards for shock, vibration, and surge immunity (IEC 61000-4-2/4/5), ensuring compliance with industrial and commercial requirements. The extender supports daisy-chaining up to four units for total network extensions up to 500 meters, using standard Cat5e/6 cabling. Its True Surge 4kV protection guards against voltage spikes, while the IP67 sealing prevents moisture and particulate ingress.
Key Product Advantages
The TI-BE200 solves critical distance and power limitations in outdoor IP deployments. Its industrial design ensures uninterrupted operation in environments where standard Ethernet extenders would fail, reducing maintenance costs and improving network uptime.
Extended Reach Without Extra Power
Eliminates the need for AC outlets at remote locations by using PoE++ for both data and power, cutting installation time and cost.
- Extends PoE++ 100m for total 200m reach
- Daisy-chain up to 4 units for 500m total
Ruggedized for Harsh Conditions
IP67 housing and wide temperature tolerance allow deployment in extreme weather, industrial sites, and coastal areas.
- IP67 dust/waterproof rating
- -40° to 75°C operating range
Simplified Installation and Protection
Wall-mount design with included hardware and glands, plus built-in surge protection, reduces setup complexity and equipment damage risk.
- Includes mounting screws and IP67 cable glands
- 4kV surge protection on all ports
Deployment / Use Cases
This extender is tailored for scenarios where network infrastructure must extend beyond standard 100-meter Ethernet limits without sacrificing power delivery. It enables cost-effective expansion of surveillance, wireless, and industrial networks into areas lacking convenient power sources.
Common applications include extending PoE to outdoor security cameras on perimeter fences, powering wireless access points in parking lots or warehouses, and connecting IoT sensors in agricultural or utility settings. The daisy-chaining capability supports linear deployments along fences, pipelines, or roadways, while the industrial rating ensures reliability in manufacturing plants, transportation hubs, and outdoor venues.
Outdoor Security and Surveillance
Power PTZ cameras and IR illuminators at remote gates, yards, or building exteriors with consistent 60W delivery.
Industrial Wireless Coverage
Deploy Wi-Fi access points in factories, warehouses, or outdoor storage areas where AC power is inaccessible.
Physical Profile

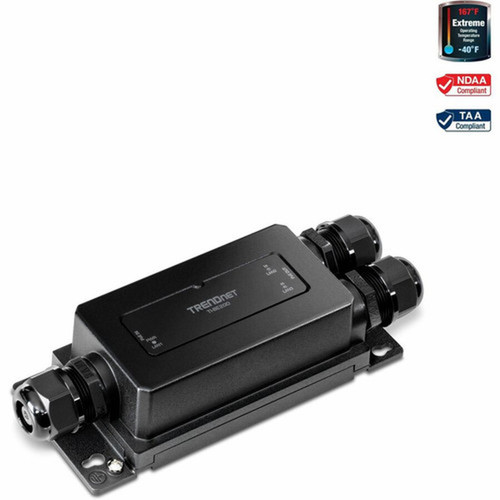

The extender features a compact, wall-mountable metal housing measuring 6.57" x 2.91" x 1.73" (167 x 74 x 44 mm) and weighing 12.84 oz (364 g). Its low-profile design blends into industrial environments while the included mounting screws and IP67 cable glands ensure secure, weatherproof installation. The housing's robust construction resists physical impact and environmental stressors, making it suitable for both indoor and outdoor mounting on walls, poles, or equipment racks.
- Width
- 2.91" (74 mm)
- Depth
- 1.73" (44 mm)
- Height
- 6.57" (167 mm)
- Weight
- 12.84 oz (364 g)
What's in the Box
The package includes all necessary components for immediate deployment in outdoor or industrial settings.
Highlights
- Extends PoE++ connections 100m for total 200m reach
- Daisy-chain up to 4 units for 500m total network extension
- IP67-rated weatherproof housing for outdoor use
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices
- Wide operating temperature range: -40° to 75°C (-40° to 167°F)
- Built-in 4kV surge protection on all ports
- Wall-mountable design with included hardware
- No external power adapter required
- TAA compliant for U.S. and Canadian government contracts
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-BE200 |
| Brand Name | TRENDnet |
| Product Model | TI-BE200 |
| Product Name | 2-Port Industrial Outdoor Gigabit PoE++ Extender |
| Product Type | PoE++ Extender |
| Technical Information | |
| Protection Type | Surge Protection |
| Power Description | |
| Maximum Output Power | 60 W |
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit PoE++ |
| Output Ports | 1 x Gigabit PoE+,1 x Gigabit PoE++ |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 6.57" (167 mm) |
| Width | 2.91" (74 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 12.84 oz (364 g) |
| Miscellaneous | |
| Package Contents | 2-Port Industrial Outdoor Gigabit PoE++ Extender Quick Installation Guide 3 x IP67 Weather Rated Cable Glands Wrench Wall Mount Screws |
| Certifications & Standards | CE FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 (Shock) IEC 60068-2-32 (Free Fall) IEC 60068-2-6 (Vibration) IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum distance this PoE++ extender can achieve?
A single TI-BE200 unit extends a PoE++ connection by 100 meters, allowing a total distance of 200 meters from the power source to the end device when using standard Ethernet cabling. Up to four units can be daisy-chained for a maximum extension of 500 meters, enabling long-range deployments without signal degradation or power loss.
What PoE standards does this extender support?
The extender supports IEEE 802.3af (PoE, 15.4W), IEEE 802.3at (PoE+, 30W), and IEEE 802.3bt (PoE++, 60W) standards. It accepts a PoE++ input and provides one PoE+ output and one PoE++ output, allowing compatibility with a wide range of powered devices such as cameras, access points, and IoT sensors.
Is this extender suitable for outdoor installation?
Yes, the TI-BE200 is designed for outdoor and industrial environments. Its IP67-rated housing provides complete protection against dust ingress and temporary water immersion, while the operating temperature range of -40°C to 75°C ensures reliable performance in extreme heat, cold, or humidity. The included IP67 cable glands maintain weatherproofing at connection points.
Does the extender require an external power adapter?
No external power adapter is needed. The extender draws all required power from the upstream PoE++ switch or injector, simplifying installation in locations without accessible AC outlets. This feature reduces clutter, cost, and points of failure in remote deployments.
What surge protection is included?
The extender features built-in True Surge 4kV protection on all Ethernet ports, guarding against voltage spikes caused by lightning or electrical faults. This protection helps prevent damage to connected devices and extends equipment lifespan in areas prone to power surges or unstable electrical conditions.
What mounting options are available?
The unit is designed for wall mounting with included screws and a wrench for secure installation. Its compact dimensions (6.57" x 2.91" x 1.73") allow flexible placement on walls, poles, or enclosures in both indoor and outdoor settings. The metal housing provides durability and heat dissipation for continuous operation.
