TRENDnet TI-E50 Industrial Unmanaged Fast Ethernet DIN-Rail Switch - 5 Ports - IP30 - 40° to 75°C Operating Temperature - Fanless
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Fast Ethernet (100Base-X) device with a 1 Gbps switching capacity, supporting a maximum data transfer rate of 25 MB/s across its five RJ-45 ports. It complies with key IEEE networking standards including 802.3, 802.3u, and 802.3x for reliable Ethernet communication and flow control.
Power is supplied via dual 12 V DC or 56 V DC inputs using a removable terminal block, drawing only 1.68 W under typical operation. The fanless design eliminates moving parts for silent, maintenance-free performance, while built-in surge protection guards against voltage spikes common in industrial settings.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TI-E50 stands out in industrial networking with its combination of rugged construction, wide temperature tolerance, and simplified deployment. Its hardened IP30-rated aluminum housing resists dust and low-pressure water jets, ensuring durability in harsh conditions where commercial switches would fail.
Extreme Environment Ready
Operates reliably from -40°C to 75°C (-40°F to 167°F), covering the full spectrum of industrial and outdoor temperature extremes without active cooling.
- Fanless for zero noise
- No moving parts to fail
- Consistent performance in temperature swings
Redundant Power Inputs

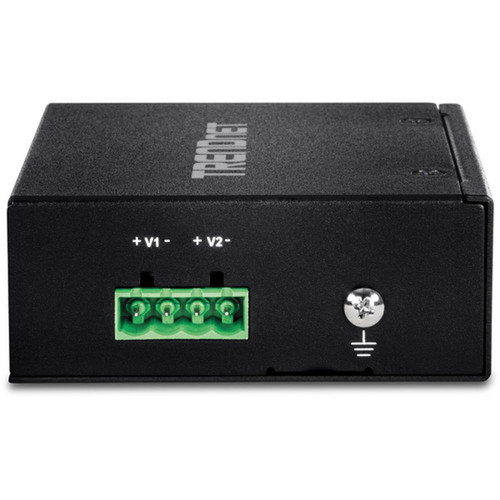

Dual 12 V DC and 56 V DC inputs with terminal block connections provide power redundancy and overload current protection, minimizing downtime in critical applications.
- Continuous operation during power source failure
- Overload protection safeguards connected devices
- Flexible voltage acceptance
Deployment / Use Cases
This unmanaged switch is purpose-built for scenarios requiring dependable Ethernet connectivity in non-climate-controlled or physically challenging locations. Its compact form factor and versatile mounting make it easy to integrate into existing industrial infrastructures without occupying significant panel space.
Common applications include connecting PLCs, sensors, and HMIs on factory automation lines; providing network access in utility and traffic control cabinets; enabling communication for outdoor digital signage and kiosks; and serving as a distribution point in transportation and maritime environments where vibration and temperature fluctuations are routine.
Industrial Automation
Connect machines, controllers, and monitoring devices on production floors where dust, moisture, and temperature extremes are present.
Outdoor & Harsh Environments
Deploy in weatherproof enclosures for traffic systems, renewable energy sites, or remote monitoring stations that experience wide temperature ranges.
Physical Profile
The switch features a compact, low-profile design measuring 4" (101.60 mm) in length, 3.20" (81.28 mm) in width, and 1.20" (30.48 mm) in height, with a lightweight aluminum construction weighing just 5.70 oz (161.59 g). This small footprint allows installation in tight spaces on standard DIN rails or directly onto walls using the included mounting brackets, making it suitable for crowded control panels or enclosures where space is at a premium.
- Width
- 3.20" (81.28 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 5.70 oz (161.59 g)
- Length
- 4" (101.60 mm)
What's in the Box
The package includes all necessary hardware for immediate deployment.
Highlights
- 5 Fast Ethernet (100 Mbps) RJ-45 ports for basic device connectivity
- Hardened IP30-rated aluminum enclosure for dust and low-pressure water resistance
- Extreme operating temperature range from -40°C to 75°C (-40°F to 167°F)
- Dual 12 V DC / 56 V DC power inputs with terminal block for redundancy
- Fanless, silent design with no moving parts for maintenance-free operation
- Includes DIN-rail and wall-mount brackets for flexible installation
- Surge protection safeguards against voltage spikes in industrial settings
- NDAA / TAA compliant for use in government and regulated projects
- Lifetime warranty for long-term reliability assurance
- Compact dimensions: 4" L x 3.20" W x 1.20" H (101.60 x 81.28 x 30.48 mm)
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-E50 |
| Brand Name | TRENDnet |
| Product Model | TI-E50 |
| Product Name | 5-Port Industrial Fast Ethernet DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Surge Protection,Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X |
| Maximum Data Transfer Rate | 25 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Power Description | |
| Input Voltage | 12 V DC,56 V DC |
| Power Source | Power Supply |
| Power Consumption | 1.68 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Product Material | Aluminum |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 1.20" (30.48 mm) |
| Width | 3.20" (81.28 mm) |
| Length | 4" (101.60 mm) |
| Weight (Approximate) | 5.70 oz (161.59 g) |
| Miscellaneous | |
| Package Contents | 5-Port Industrial Fast Ethernet DIN-Rail Switch Removable Terminal Block DIN-Rail / Wall Mount Kit |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many devices can I connect to the TRENDnet TI-E50 switch?
The TI-E50 provides five Fast Ethernet (100 Mbps) RJ-45 ports, allowing you to connect up to five network devices such as computers, printers, PLCs, or sensors directly. It operates as an unmanaged switch, meaning all connected devices will be on the same network segment with plug-and-play functionality, ideal for simple star-topology expansions in industrial settings.
What is the operating temperature range of this industrial switch?
This switch is designed for extreme environments with an operating temperature range of -40°C to 75°C (-40°F to 167°F). This wide tolerance allows reliable deployment in unheated outdoor enclosures, factory floors with high ambient heat, or cold storage facilities without requiring climate control, ensuring consistent network performance across harsh industrial and outdoor applications.
Does the TI-E50 support Power over Ethernet (PoE)?
No, the TI-E50 does not support Power over Ethernet. It is a standard Fast Ethernet switch that provides data connectivity only. Power for connected devices must be supplied separately. The switch itself is powered via dual 12 V DC or 56 V DC inputs using a removable terminal block, which offers redundancy but does not deliver power through the Ethernet ports to endpoints like IP cameras or wireless access points.
What mounting options are included with the switch?
The switch includes both DIN-rail and wall-mount brackets in the package, providing flexible installation options. You can easily mount it on standard 35 mm DIN rails commonly found in industrial control panels, or directly onto a wall or enclosure surface using the supplied hardware. This versatility makes it suitable for integration into existing rack systems, cabinets, or standalone enclosures without additional accessories.
Is the switch fanless, and why is that important?
Yes, the TI-E50 features a completely fanless design. This is critical for industrial environments because it eliminates moving parts that can fail due to dust accumulation, vibration, or wear over time. Fanless operation ensures silent performance, reduces maintenance requirements, and enhances reliability in dirty or particulate-heavy settings where fan clogging could lead to overheating and switch failure.
What power supply is required, and is it included?
The switch requires a 12 V DC or 56 V DC power source connected via its removable terminal block. The power supply itself is not included in the package; it must be purchased separately. TRENDnet recommends using their model TI-M6024 power supply for optimal compatibility, but any power supply meeting the voltage and current specifications can be used. The dual input design allows for redundant power connections to minimize downtime.
