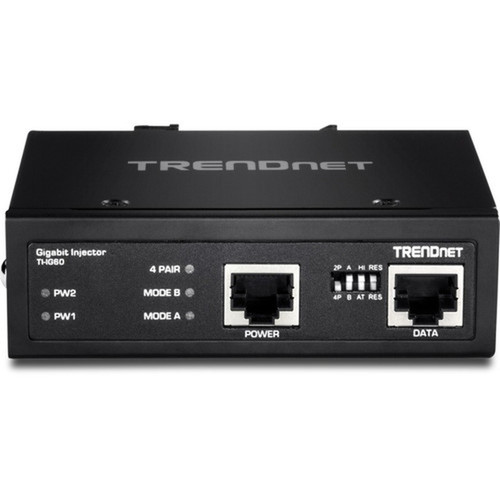

TRENDnet TI-IG60 Hardened Industrial 60W Gigabit PoE+ Injector - DIN-Rail/Wall Mount - IP30 Rated - 48-56V DC Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Gigabit PoE+ injector features a 48-56V DC input voltage with a maximum output power of 72W, supporting a wide range of PoE devices. It includes one 10/100/1000Base-T input port and one output port, ensuring full Gigabit throughput for data and power transmission. The hardened design incorporates overload current protection to safeguard connected equipment against power surges and faults.
The external form factor measures 10" x 5" x 3" (254 x 127 x 76.2 mm) and weighs approximately 4.87 oz (138 g), offering a compact footprint for space-constrained installations. Compliance with CE, FCC, and IEC standards for shock, freefall, and vibration ensures durability in industrial settings, while TAA compliance meets U.S. and Canadian government procurement requirements.
Relevant factors for this section include Protection Type, Input Voltage, Maximum Output Power. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TI-IG60 stands out with its industrial-grade construction and versatile power delivery, making it a reliable choice for network expansions in tough environments. Its hardened IP30 housing resists dust and low-pressure water jets, while the extreme temperature tolerance ensures uninterrupted performance from freezing cold to intense heat.
Flexible Power Options
Supports multiple PoE standards, allowing compatibility with a broad range of devices from low-power sensors to high-demand access points, without requiring separate injectors for different power needs.
- PoE (15W)
- PoE+ (30W)
- High power PoE+ (36W)
- UPoE (60W)
Robust Installation Features
Includes DIN-rail and wall mount kits for easy deployment in industrial racks or on surfaces, with a removable terminal block for simplified power wiring and maintenance.
- DIN-rail mount included
- Wall mount included
- Removable terminal block
Deployment / Use Cases
This PoE+ injector is ideal for extending network power to remote or hard-to-reach locations in industrial and commercial settings. It enables the deployment of PoE devices up to 100 meters from the power source, reducing the need for additional electrical infrastructure and simplifying cable management.
Common applications include powering wireless access points in warehouses, surveillance cameras in manufacturing plants, VoIP phones in office environments, and IoT sensors in outdoor areas. The DIN-rail mounting option makes it perfect for integration into existing control panels or network cabinets, while the wall mount suits smaller installations like retail stores or schools.
Industrial Networking
Deploy in factories or warehouses to power access points and cameras across large areas, leveraging the extreme temperature range and hardened housing for reliable operation in harsh conditions.
Commercial Expansions
Use in offices or retail spaces to add PoE devices without running new power lines, with the wall mount option for discreet installation behind desks or on ceilings.
Physical Profile
The TI-IG60 features a compact external design with dimensions of 10" x 5" x 3" (254 x 127 x 76.2 mm), allowing it to fit into tight spaces in racks or on walls. The IP30-rated housing provides protection against dust and low-pressure water, making it suitable for industrial environments. The included DIN-rail and wall mounts offer versatile installation options, while the lightweight construction at 4.87 oz (138 g) ensures easy handling during setup.
- Width
- 5" (127 mm)
- Height
- 3" (76.20 mm)
- Weight
- 4.87 oz (138 g)
- Length
- 10" (254 mm)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a quick and straightforward installation process.
Highlights
- Hardened IP30-rated Gigabit PoE+ injector for industrial use
- Supports PoE (15W), PoE+ (30W), high power PoE+ (36W), and UPoE (60W)
- DIN-rail and wall mounts included for flexible installation
- Operates in extreme temperatures from -40 to 75°C (-40 to 167°F)
- Dual redundant power inputs with overload current protection
- Delivers power up to 100 meters (328 ft.) to PoE devices
- Maximum output power of 72W with 48-56V DC input
- TAA compliant for U.S. and Canadian government procurement
- 3-year limited warranty for long-term reliability
- Power supply sold separately (models TI-S15052, TI-S12048)
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-IG60 |
| Brand Name | TRENDnet |
| Product Model | TI-IG60 |
| Product Name | Hardened Industrial 60 Watt UPoE Injector |
| Product Condition | New |
| Product Type | PoE Injector |
| Technical Information | |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 48 V DC,56 V DC |
| Maximum Output Power | 72 W |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | External |
| Mount Type | DIN Rail/Wall Mountable |
| Height | 3" (76.20 mm) |
| Width | 5" (127 mm) |
| Length | 10" (254 mm) |
| Weight (Approximate) | 4.87 oz (138 g) |
| Miscellaneous | |
| Package Contents | Hardened Industrial 60 Watt Gigabit PoE+ Injector Quick Installation Guide Removable Terminal Block DIN-Rail And Wall Mount Kit |
| Certifications & Standards | CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What PoE standards does the TI-IG60 injector support?
The TI-IG60 supports multiple PoE standards, including PoE (15W), PoE+ (30W), high power PoE+ (36W), and UPoE (60W). This versatility allows it to power a wide range of devices, from low-power sensors to high-demand access points, without needing separate injectors for different power requirements.
How far can this PoE injector deliver power?
This injector can deliver power up to 100 meters (328 feet) to compatible PoE devices over Ethernet cable. This extended range makes it ideal for networking in large industrial spaces, warehouses, or outdoor areas where devices are located far from power sources.
What mounting options are included with the TI-IG60?
The TI-IG60 includes both DIN-rail and wall mounts in the package. The DIN-rail mount allows for easy integration into industrial control panels or network cabinets, while the wall mount enables installation on surfaces in commercial or office environments, providing flexibility for various deployment scenarios.
What is the operating temperature range of this injector?
This injector operates in extreme temperatures from -40 to 75°C (-40 to 167°F). This wide range ensures reliable performance in harsh conditions, such as unheated warehouses in winter or hot industrial settings in summer, making it suitable for demanding environments.
Is the TI-IG60 TAA compliant?
Yes, the TI-IG60 is TAA compliant, meeting the Trade Agreements Act requirements for U.S. and Canadian government procurement. This compliance ensures it can be used in federal and state contracts where TAA adherence is mandatory for networking equipment.
What power supply is required for the TI-IG60?
The TI-IG60 requires a separate power supply, which is sold separately. Compatible models include TI-S15052 and TI-S12048. The injector accepts 48-56V DC input, so ensure the power supply matches these specifications for proper operation and to deliver the maximum 72W output power.
