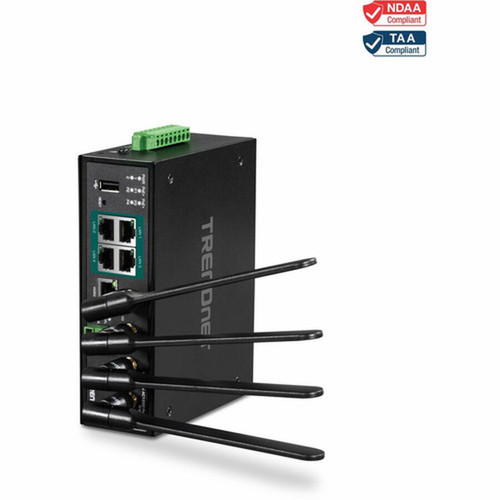

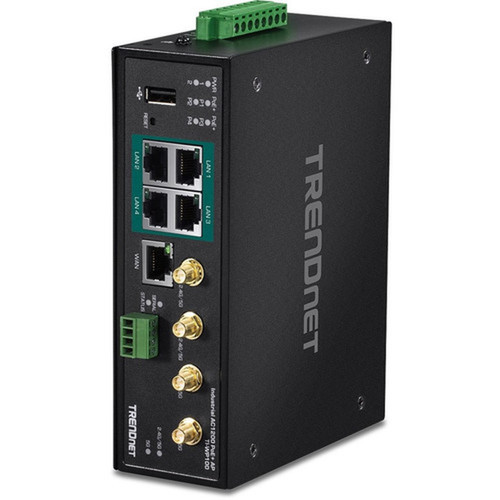

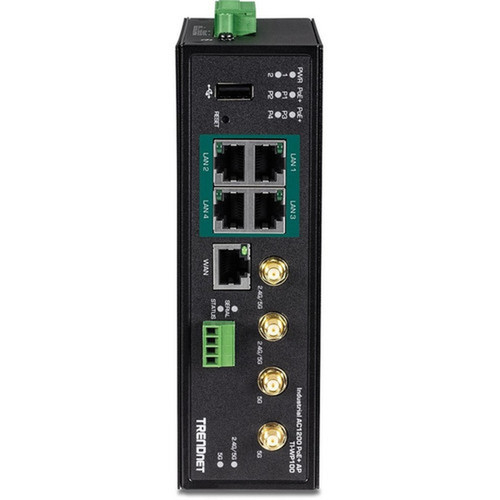

TRENDnet TI-WP100 Industrial AC1200 Wireless Gigabit PoE+ Router - Dual Band Wi-Fi 5 (802.11ac) - 4x Gigabit PoE+ Ports - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This industrial router operates on dual-band Wi-Fi 5 (802.11ac), supporting both the 2.4 GHz ISM band and the 5 GHz UNII band for flexible network design and reduced interference. It achieves a total wireless transmission speed of 145.88 MB/s, suitable for bandwidth-intensive applications across its wireless and wired interfaces.
The wired backbone features four Gigabit Ethernet ports with PoE+ support, each capable of delivering up to 30W per port with a total power budget of 120W from either a 48V or 24V DC input. A dedicated Gigabit WAN port handles broadband uplink connectivity, while a USB port offers potential for peripheral expansion. Advanced networking features include VPN support (IPsec and SSL/OpenVPN), VLAN tagging (802.1Q and port-based), inter-VLAN routing, and wireless WAN support for load balancing or failover between wired and wireless uplinks.
Key Product Advantages
The TI-WP100 stands out with its integrated high-power PoE+ switching, industrial durability, and advanced management features tailored for operational technology (OT) and IT convergence. Its design prioritizes reliability and control in uncontrolled environments.
Industrial-Grade PoE+ Management
Beyond basic PoE, the router includes PoE alive check to automatically restart unresponsive devices, along with configurable power scheduling, per-port power limits, and port priority settings. This granular control helps prevent network downtime and optimizes power distribution across connected devices.
- 120W Total PoE Budget
- PoE Alive Check
- Power Scheduling & Limits
Enhanced Wireless & Security Controls
Supports up to 8 separate SSIDs per radio band, with SSID-to-VLAN mapping for segmenting user or device traffic. Combined with robust VPN options and VLAN support, it enables secure network segmentation for guests, employees, and IoT devices on a single hardware platform.
- 8 SSIDs per Band
- SSID-to-VLAN Mapping
- IPsec & OpenVPN Support
Industrial Connectivity & Monitoring
Includes a serial port with Modbus and virtual COM support for industrial device communication, plus digital input/output terminals for monitoring dry contacts or triggering alerts based on external events. Redundant power inputs with overload protection further enhance system reliability.
Deployment / Use Cases
The TI-WP100 is ideal for environments where networking equipment must withstand temperature extremes, vibration, dust, and limited space, while providing both wireless access and wired power distribution.
In manufacturing and industrial automation, it can be mounted inside a control panel to provide Wi-Fi for handheld scanners and tablets, while also powering PoE+ cameras for machine monitoring or safety systems on the factory floor. The serial port allows direct connection to PLCs or HMIs for data collection.
Outdoor & Harsh Environment Networks
Deploy in parking lots, warehouses, or agricultural settings where the IP30 rating and wide operating temperature range ensure operation through seasonal extremes. Use the wireless WAN feature to create a failover link via a cellular adapter when the primary wired WAN fails.
Converged IT/OT Infrastructure
Serve as a compact network core in transportation hubs, utility substations, or remote sites, combining wireless for personnel, PoE for security cameras and sensors, and serial connectivity for legacy industrial equipment—all in a single DIN-rail mounted unit.
Physical Profile

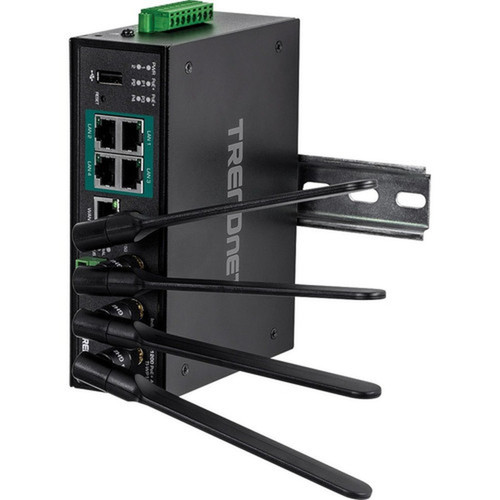

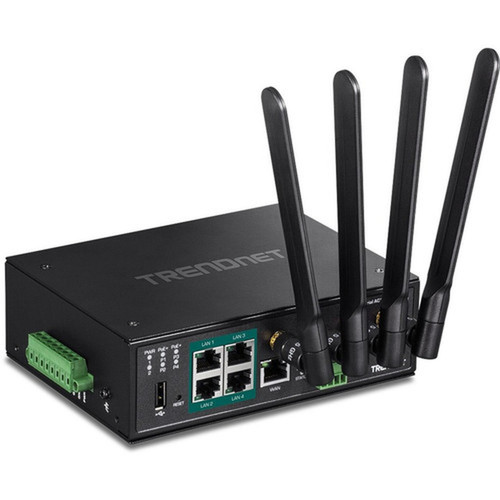

Encased in a sturdy metal housing with an IP30 rating, the router measures 6.30" wide x 4.72" deep x 2.01" high (160 x 120 x 51 mm) and weighs approximately 2.40 lb (1090 g). The compact, low-profile design is optimized for DIN rail installation using the included mounting bracket, saving panel space. Four detachable dual-band antennas provide flexibility in antenna positioning and replacement for optimal radio coverage.
- Width
- 6.30" (160 mm)
- Depth
- 4.72" (120 mm)
- Height
- 2.01" (51 mm)
- Weight
- 2.40 lb (1090 g)
What's in the Box
The package includes all necessary components for immediate deployment in an industrial setting.
Highlights
- Industrial AC1200 Dual-Band Wi-Fi 5 (802.11ac) Wireless Router
- 4 x Gigabit PoE+ Ports with 120W Total Power Budget
- 1 x Gigabit WAN Port for Broadband Uplink
- Hardened IP30 Rated Metal Housing for Durability
- DIN Rail Mountable Form Factor for Industrial Panels
- Wide Operating Temperature: -30°C to 70°C (-22°F to 158°F)
- Advanced PoE Management: Alive Check, Scheduling, Power Limits
- Supports Up to 8 SSIDs per Band with VLAN Mapping
- Wireless WAN Support for Load Balancing/Failover
- VPN Support (IPsec & SSL/OpenVPN) and 802.1Q VLAN
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-WP100 |
| Brand Name | TRENDnet |
| Product Model | TI-WP100 |
| Product Name | Industrial AC1200 Wireless Gigabit PoE+ Router |
| Product Type | Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 5 |
| Network Band | Dual Band |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet |
| Wireless LAN Standard | IEEE 802.11ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Total Number of Antennas | 5 |
| Number of External Antennas | 4 |
| Total Wireless Transmission Speed | 145.88 MB/s |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| USB | Yes |
| PoE (RJ-45) Port | Yes |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 2.01" (51 mm) |
| Width | 6.30" (160 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 2.40 lb (1090 g) |
| Miscellaneous | |

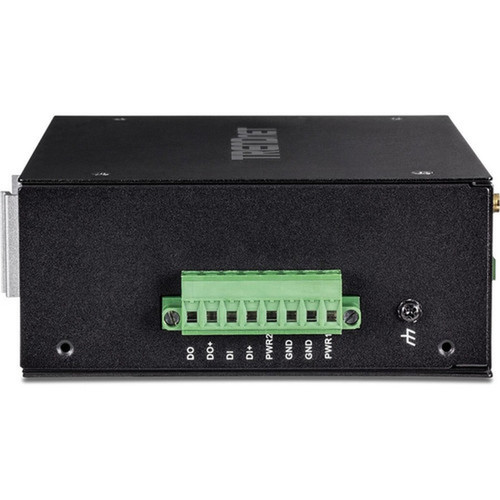

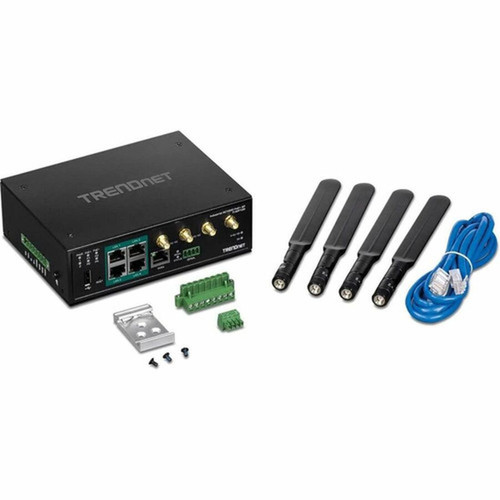

| Package Contents | Industrial AC1200 Wireless Gigabit PoE+ Router Quick Installation Guide 4 x detachable dual-band antennas Network cable (1.5m / 5 ft.) 1 x 8-pin removable terminal block (Power & digital input/output) 1 x 4-pin removable terminal block (Serial) DIN-Rail mounting bracket |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the Wi-Fi standard and speed of the TI-WP100 router?
The TRENDnet TI-WP100 operates on the Wi-Fi 5 (IEEE 802.11ac) standard across dual bands (2.4 GHz and 5 GHz). It delivers a total wireless transmission speed of 145.88 MB/s, providing reliable bandwidth for data-intensive applications in industrial and commercial settings.
How many devices can this router power via PoE and what is the power budget?
The router includes four Gigabit Ethernet ports that support PoE+ (IEEE 802.3at), capable of delivering up to 30W per port. The total PoE power budget is 120W, available from either a 48V DC or 24V DC input. This allows it to power multiple devices like IP cameras, wireless access points, or VoIP phones simultaneously.
Is this router suitable for outdoor or harsh industrial environments?
Yes, the TI-WP100 is built for harsh environments. It features a hardened IP30-rated metal housing that protects against dust and incidental contact. It also operates across an extensive temperature range from -30°C to 70°C (-22°F to 158°F), making it suitable for uncontrolled indoor and sheltered outdoor installations.
What mounting options are available for this industrial router?
This router is designed for DIN rail mounting, which is standard in industrial control panels and electrical cabinets. The package includes a DIN-rail mounting bracket for easy installation. Its compact dimensions (6.30" W x 4.72" D x 2.01" H) allow it to fit in space-constrained enclosures.
Does the TI-WP100 support advanced networking features like VLANs and VPNs?
Yes, it offers comprehensive advanced networking. It supports 802.1Q and port-based VLANs for network segmentation, inter-VLAN routing, and SSID-to-VLAN mapping for wireless networks. For secure remote access, it supports IPsec and SSL VPNs (including OpenVPN), enabling encrypted connections over the internet.
What unique industrial features does this router include?
Beyond typical networking, the TI-WP100 includes a serial port with Modbus and virtual COM support for connecting to industrial equipment like PLCs. It also has digital input/output terminals for monitoring external signals or triggering actions, and redundant power inputs with overload protection to enhance reliability in critical applications.
