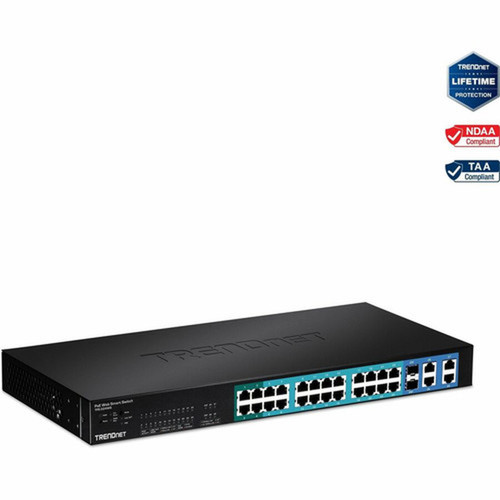

TRENDnet TPE-224WS 28-Port Web Smart PoE+ Switch - 20 PoE & 4 PoE+ Ports - 2 Gigabit Uplinks - 2 SFP Slots - 193W Budget - Rack Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Total Number of Network Ports, Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Switching Fabric
The switch delivers 12.8 Gbps of non-blocking switching capacity, ensuring smooth data transfer across all ports even under high traffic loads. It supports 10/100Mbps Fast Ethernet on 24 ports and Gigabit Ethernet on four ports, with two additional Gigabit uplinks for backbone connectivity.
- 12.8 Gbps switching capacity
- Non-blocking architecture
- 10/100/1000Base-T support
Expansion Flexibility

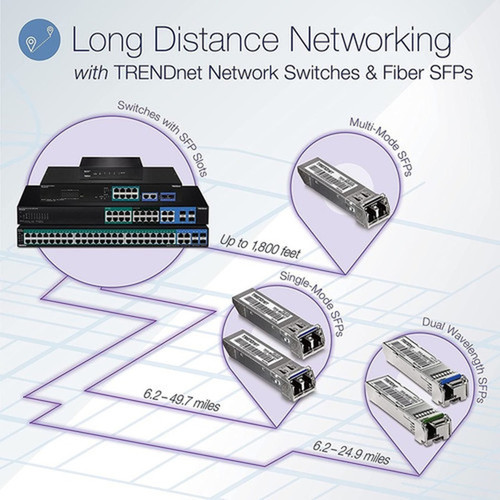

Two shared Gigabit ports support either RJ-45 copper connections or SFP fiber modules, providing flexibility for uplink media selection. The dual SFP slots enable fiber connectivity for longer distance runs or connections to fiber-based network infrastructure.
- RJ-45 or SFP media options
- Fiber connectivity ready
- Dual SFP slots
Key Product Advantages
The TPE-224WS stands out with its substantial PoE budget and flexible uplink options, making it ideal for networks with mixed device types and connectivity requirements.
High-Density PoE Deployment
With 24 PoE-enabled ports (20 PoE + 4 PoE+), this switch can power numerous devices simultaneously. The 193W total budget allows for efficient power allocation across IP cameras, access points, and other PoE devices without requiring additional power injectors.
- 20 x 15.4W PoE ports
- 4 x 30W PoE+ ports
- 193W total budget
Dual Uplink Options
Two dedicated Gigabit ports plus two shared Gigabit/SFP ports provide multiple uplink pathways to core network infrastructure. This redundancy and flexibility ensure reliable connectivity to routers, servers, or other switches.
- 2 dedicated Gigabit ports
- 2 shared Gigabit/SFP ports
- Fiber or copper uplinks
Deployment / Use Cases
The TRENDnet TPE-224WS is designed for environments requiring both data connectivity and power delivery over a single Ethernet cable. Its port configuration and PoE capabilities make it suitable for various business scenarios.
In retail or office settings, the switch can power security cameras while providing network connectivity to workstations and printers. For educational institutions, it supports classroom technology including interactive displays and wireless access points. The rack-mountable design integrates seamlessly into network closets or server rooms.
Surveillance Systems
Power and connect up to 24 IP cameras simultaneously using the PoE ports, eliminating the need for separate power supplies at each camera location. The Gigabit uplinks ensure smooth video streaming to network video recorders.
- PoE for IP cameras
- Gigabit uplinks for video
- 24-port density
Wireless Network Expansion
Deploy multiple wireless access points throughout a facility using PoE, with the PoE+ ports supporting higher-power 802.11ac or 802.11ax access points. The switch manages both power and data connectivity for simplified installation.
- PoE+ for high-power APs
- Centralized power management
- Reduced cabling complexity
Physical Profile
The TPE-224WS features a compact 1U rack-mountable design measuring 1" (25.4mm) in height, 6" (152.4mm) in width, and 9" (228.6mm) in depth, with a length of 17.3" (439.42mm). Weighing approximately 8 ounces (226.8g), it fits standard 19-inch racks using the included mounting kit. Smart fans automatically adjust speed based on temperature, reducing energy consumption while maintaining optimal operating conditions.
- Width
- 6" (152.40 mm)
- Depth
- 9" (228.60 mm)
- Height
- 1" (25.40 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 17.30" (439.42 mm)
What's in the Box
The TPE-224WS ships complete with all necessary components for immediate deployment.
Highlights
- 28 total network ports with 24 Fast Ethernet and 4 Gigabit Ethernet
- 20 PoE ports (15.4W each) plus 4 PoE+ ports (30W each)
- 193W total PoE budget for powering multiple devices
- 2 dedicated Gigabit ports and 2 shared Gigabit/SFP uplinks
- 12.8 Gbps switching capacity for high-performance networking
- Web Smart management with Layer 2 switching capabilities
- Rack-mountable 1U design with included mounting hardware
- Smart fans that adjust speed to reduce energy consumption
- NDAA/TAA compliant for U.S. and Canadian government deployments
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-224WS |
| Brand Name | TRENDnet |
| Product Line | WebSmart |
| Product Model | TPE-224WS |
| Product Name | 24-port 10/100Mbps Web Smart PoE Switch w/ 4 Gigabit Ports and 2 Mini-GBIC Slots |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 28 |
| Port/Expansion Slot Details | 24 x Fast Ethernet Network,4 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10Base-T,10/100/1000Base-T,100/1000Base-T,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 170 W |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 6" (152.40 mm) |
| Depth | 9" (228.60 mm) |
| Length | 17.30" (439.42 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Package Contents | TPE-224WS Gigabit Web Smart PoE Switch Multi-Language User's Guide Web-Smart Utility CD-ROM Power Supply Rack Mount Kit |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE devices can this switch power simultaneously?
The TRENDnet TPE-224WS can power up to 24 PoE devices simultaneously, with 20 ports providing 15.4W each (standard PoE) and 4 ports providing 30W each (PoE+). The total PoE budget is 193W, which means you can mix devices with different power requirements as long as the combined draw doesn't exceed this limit. This makes it suitable for environments with varied PoE device types.
What types of uplink connections does this switch support?
This switch offers multiple uplink options: two dedicated Gigabit Ethernet ports (RJ-45) and two shared ports that support either Gigabit Ethernet (RJ-45) or SFP fiber modules. The shared ports provide flexibility to choose copper or fiber connectivity based on your network infrastructure, distance requirements, or existing cabling.
Is this switch manageable, and what management features does it offer?
Yes, the TPE-224WS is a Web Smart managed switch operating at Layer 2. It provides web-based management through a browser interface, allowing configuration of VLANs, QoS, port mirroring, and PoE settings. The management capabilities enable network segmentation, traffic prioritization, and monitoring without requiring advanced CLI knowledge.
What is the switching capacity of this switch?
The switch delivers 12.8 Gbps of non-blocking switching capacity. This ensures all ports can operate at their maximum rated speeds simultaneously without congestion, supporting high-bandwidth applications like video streaming, large file transfers, and real-time communications across the network.
Can this switch be mounted in a standard network rack?
Yes, the TPE-224WS is designed for standard 19-inch rack mounting and occupies 1U of rack space. The package includes a rack mount kit with all necessary hardware for installation. The compact dimensions (1"H x 6"W x 9"D) make it suitable for space-constrained network closets or server rooms.
What warranty coverage does TRENDnet provide for this switch?
TRENDnet backs the TPE-224WS with a lifetime warranty, covering defects in materials and workmanship for the product's usable life. This long-term support provides confidence in the switch's reliability for business-critical networking applications, with replacement or repair services available through TRENDnet's support channels.
