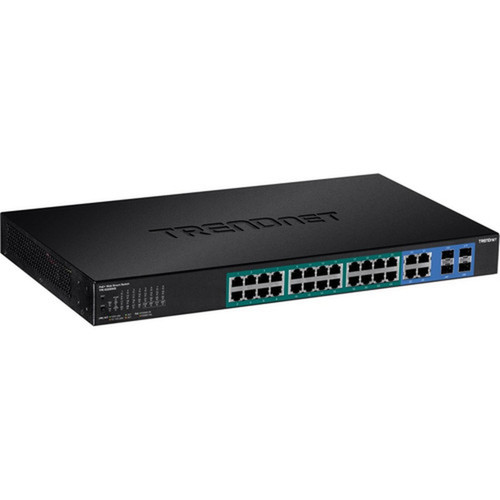

TRENDnet TPE-5028WS 28-Port Web Smart PoE+ Switch - 24 Gigabit PoE+ Ports - 4 Shared SFP Slots - 370W - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Gigabit Ethernet speeds (1000Base-T and 1000Base-X) across all ports, supporting both twisted pair and optical fiber media via its SFP slots. The 24 PoE+ ports comply with IEEE 802.3at standards, delivering up to 30W per port with a total PoE budget of 370W, ensuring reliable power for connected devices without overloading the system. The 4 shared SFP slots allow flexible uplink configurations using SFP transceivers for fiber or copper connections, enabling long-distance links or high-bandwidth aggregation.
As a Layer 2 switch, it provides essential switching functions including MAC address learning, broadcast storm control, and loop prevention via STP/RSTP. The web smart management interface offers accessible configuration for VLANs (port-based and 802.1Q), QoS prioritization, link aggregation with LACP, and IPv6 routing support. The switch lacks dedicated uplink ports but uses the shared SFP slots for uplink purposes, and it does not support stacking or redundant power supplies, focusing on core managed switching in a compact footprint.
Key Product Advantages
The TPE-5028WS combines high-density PoE+ provisioning with manageable switching in a cost-effective 1U package, reducing clutter and simplifying deployments for IT administrators. Its 370W PoE budget supports numerous powered devices simultaneously, eliminating the need for additional injectors or midspans, while the web smart interface allows for straightforward network segmentation and traffic prioritization without complex CLI knowledge.
High-Density PoE+ Ready
With 24 PoE+ ports and 370W total power, this switch can drive a full suite of IP phones, Wi-Fi 6 access points, and 4K security cameras from a single unit, streamlining infrastructure and reducing power cabling.
- IEEE 802.3at compliant
- Up to 30W per port
- Auto-sensing for PoE devices
Flexible Uplink Options
The 4 shared SFP slots enable fiber or copper uplinks for connecting to core switches or extending network segments over longer distances, providing versatility in network topology design.
- Supports SFP and SFP+ modules
- 1000Base-X compatibility
- Shared with RJ-45 ports
Enterprise-Grade Management
Web smart management includes VLANs for security segmentation, QoS for prioritizing voice and video traffic, LACP for link aggregation, and IPv6 support for future-proof networking.
- VLAN (802.1Q)
- QoS (DiffServ)
- LACP for redundancy
Deployment / Use Cases
This switch is ideal for medium to large business environments where centralized PoE and manageable switching are required. In office settings, it can power VoIP phone systems and wireless access points while segmenting traffic between departments via VLANs. For retail or hospitality, it supports IP cameras and digital signage with QoS to ensure video streams remain uninterrupted during peak hours.
In education or healthcare facilities, the TPE-5028WS provides reliable PoE for classroom or patient room devices, with IPv6 readiness for modern network protocols. Its 1U rack design suits data center or network closet installations, where space efficiency and easy management are priorities. The TAA compliance makes it a viable choice for government or public sector projects in the U.S. and Canada, adhering to procurement regulations without sacrificing performance.
Business Office Networks
Deploy in office racks to power and connect IP phones, Wi-Fi access points, and desktop computers, using VLANs to separate guest and internal traffic for enhanced security.
Surveillance and Security Systems
Use in security control rooms to power multiple IP cameras with PoE+, leveraging QoS to prioritize video feeds and SFP uplinks for connecting to NVRs over fiber.
Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 17.30" (439.42 mm) in length, 3" (76.20 mm) in width, and 11" (279.40 mm) in depth, weighing approximately 12.32 oz (349.27 g). This slim profile maximizes rack space efficiency, allowing installation in standard 19-inch racks alongside other networking equipment. The all-metal construction ensures durability in server room environments, with front-panel LED indicators for port status and system diagnostics. The lack of redundant power supply support is offset by the lifetime warranty, providing long-term reliability for continuous operation.
- Width
- 3" (76.20 mm)
- Depth
- 11" (279.40 mm)
- Height
- 2" (50.80 mm)
- Weight
- 12.32 oz (349.27 g)
- Length
- 17.30" (439.42 mm)
Highlights
- 28 total ports: 24 Gigabit PoE+ ports and 4 shared SFP slots for flexible connectivity.
- 370W total PoE budget supports high-density deployments of powered devices.
- Web smart management with VLAN, QoS, LACP, and IPv6 for optimized network control.
- Layer 2 switching with Gigabit Ethernet performance (1000Base-T/1000Base-X).
- 1U rack-mountable form factor fits standard 19-inch racks for space-efficient installation.
- TAA compliant for U.S. and Canadian government procurement requirements.
- Lifetime limited warranty ensures long-term reliability and support.
- Supports twisted pair and optical fiber media via SFP slots for versatile uplinks.
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-5028WS |
| Brand Name | TRENDnet |
| Product Model | TPE-5028WS |
| Product Name | 28-Port Gigabit Web Smart PoE+ Switch (370W) |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 28 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 2" (50.80 mm) |
| Width | 3" (76.20 mm) |
| Depth | 11" (279.40 mm) |
| Length | 17.30" (439.42 mm) |
| Weight (Approximate) | 12.32 oz (349.27 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE+ ports does this switch have, and what is the total PoE budget?
The TRENDnet TPE-5028WS has 24 Gigabit PoE+ ports that comply with IEEE 802.3at standards, delivering up to 30W per port. The total PoE budget is 370W, which allows it to power multiple devices like IP phones, wireless access points, and security cameras simultaneously without requiring additional power injectors.
What are the expansion slots used for, and how many SFP slots are available?
This switch includes 4 shared Gigabit expansion slots that support SFP (Small Form-factor Pluggable) transceivers. These slots can be used for fiber or copper uplinks to connect to other switches or network segments over longer distances. The SFP slots are shared with the RJ-45 ports, providing flexibility in configuring uplinks based on network needs.
Is this switch manageable, and what management features does it offer?
Yes, the TPE-5028WS is a web smart manageable switch. It offers Layer 2 management features including VLAN support (port-based and 802.1Q) for network segmentation, QoS (Quality of Service) for traffic prioritization, LACP (Link Aggregation Control Protocol) for bundling ports, and IPv6 routing. Management is accessible via a web-based interface, making it user-friendly for IT administrators.
What is the rack-mounting compatibility, and how much space does it require?
This switch is compatible with 1U rack units and is designed for rack-mountable installation in standard 19-inch racks. Its dimensions are 17.30" in length, 3" in width, and 11" in depth, with a weight of approximately 12.32 oz. This compact form factor saves space in data centers or network closets, allowing efficient stacking with other equipment.
Does this switch support fiber connections, and what Ethernet technologies does it use?
Yes, the switch supports fiber connections through its 4 SFP slots, which are compatible with 1000Base-X network technology for optical fiber media. It also supports twisted pair copper connections via 1000Base-T technology for Gigabit Ethernet over standard CAT5e/6 cables. This dual-media support enables versatile network designs with both copper and fiber uplinks.
What warranty does this product come with, and is it compliant with government procurement standards?
The TRENDnet TPE-5028WS comes with a lifetime limited warranty, providing long-term assurance against defects. It is TAA (Trade Agreements Act) compliant, meeting U.S. and Canadian government procurement requirements for products sourced from designated countries, making it suitable for public sector and government projects in these regions.
