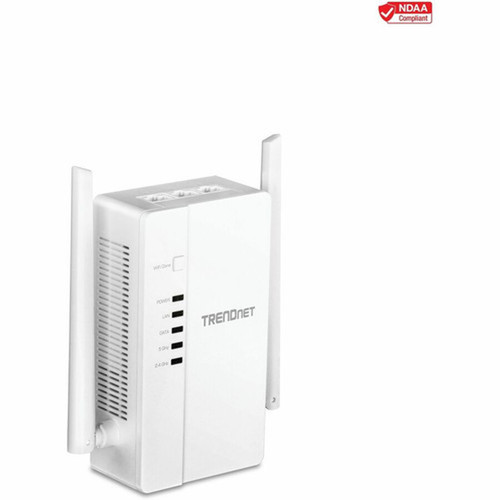

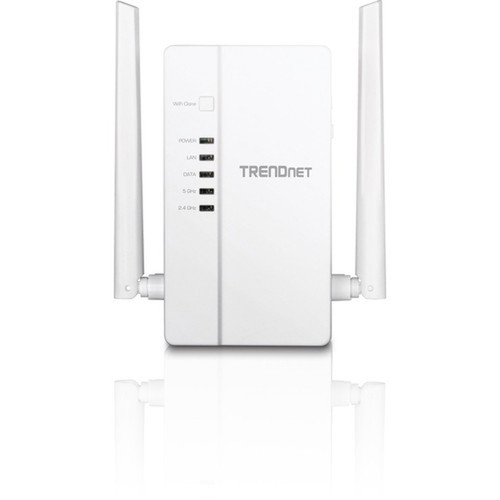

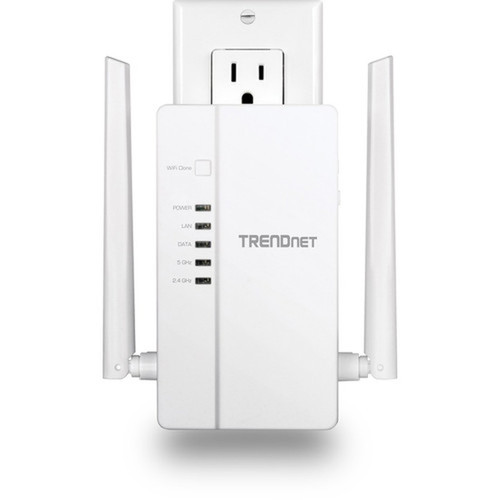

TRENDnet TPL-430AP AC1200 WiFi Everywhere Powerline Access Point - HomePlug AV2 - 1200 Mbps - 3x Gigabit Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TPL-430AP operates on the HomePlug AV2 powerline standard, supporting data transfer rates up to 1200 Mbps over electrical lines. Its integrated wireless access point follows the IEEE 802.11ac standard, providing concurrent dual-band connectivity with speeds up to 1.17 Gbit/s. Enhanced performance is achieved through MIMO and Beamforming technologies, which optimize signal strength and range.
For wired networking, three gigabit Ethernet ports offer high-performance connections for devices like gaming consoles, smart TVs, or desktop computers. The device includes a WiFi Clone button that simplifies setup by copying existing wireless network settings, ensuring quick integration into your current network environment.
Relevant factors for this section include Powerline Data Transfer Rate, Maximum Distance Supported, Wireless LAN, Wireless LAN Standard. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This powerline access point delivers reliable networking by combining the stability of wired connections with the flexibility of wireless access. Its dual-band AC1200 Wi-Fi ensures compatibility with modern devices, while three gigabit ports support high-bandwidth applications. NDAA compliance adds an extra layer of trust for deployment in sensitive environments.
Easy Installation & Setup
TRENDnet adapters auto-connect out of the box, and the WiFi Clone button allows seamless replication of your existing Wi-Fi settings, reducing configuration time and technical complexity.
- Plug-and-play operation
- No software installation required
- Pre-encrypted for security
Extended Coverage Without New Wiring
Utilize existing electrical lines to extend network coverage up to 300 meters, eliminating the need for additional Ethernet cabling while maintaining high-speed connectivity.
- Powerline range up to 984 ft.
- Ideal for multi-story buildings
- Reduces installation costs
Deployment / Use Cases
The TRENDnet TPL-430AP is perfect for residential and small office settings where extending Wi-Fi coverage is challenging. It effectively eliminates dead zones in areas like basements, garages, or remote rooms by using electrical wiring as a network backbone.
Common use cases include streaming high-definition video in distant rooms, online gaming with low latency, and supporting smart home devices that require stable connections. It also serves as a wired network hub for devices that benefit from gigabit Ethernet, such as network-attached storage or desktop workstations.
Home Entertainment Expansion
Extend Wi-Fi to home theaters or gaming rooms for uninterrupted streaming and online gameplay, with wired ports for consoles or media players.
Office Network Extension
Provide reliable internet access in conference rooms or remote office areas without installing new cables, supporting productivity tools and video conferencing.
Physical Profile
The TPL-430AP features a compact design measuring 12 inches in width, 20 inches in depth, and 3 inches in height, with a weight of approximately 9.68 pounds. Its form factor allows for placement on desks, shelves, or mounted on walls, though it does not include PoE support for ceiling installations. The sturdy construction ensures durability in various environments, from home offices to light commercial spaces.
- Width
- 12" (304.80 mm)
- Depth
- 20" (508 mm)
- Height
- 3" (76.20 mm)
- Weight
- 9.68 lb (4390.77 g)
Highlights
- Powerline 1200 networking over existing electrical lines
- Built-in dual-band wireless AC1200 access point
- Enhanced Powerline performance with MIMO and Beamforming technology
- Easy installation with auto-connect and WiFi Clone button
- Three gigabit Ethernet ports for high-performance wired networking
- Powerline range of up to 300 meters (984 feet)
- Pre-encrypted for secure out-of-the-box operation
- NDAA compliant for trusted deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPL-430AP |
| Brand Name | TRENDnet |
| Product Line | WiFi Everywhere |
| Product Model | TPL-430AP |
| Product Name | AC1200 WiFi Everywhere Powerline AP |
| Product Condition | New |
| Product Type | Powerline Network Adapter |
| Media & Performance | |
| Powerline Data Transfer Rate | 1200 Mbit/s |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Wireless Transmission Speed | 1.17 Gbit/s |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Phone Line (RJ-11) | No |
| USB | No |
| PoE (RJ-45) Port | No |
| Audio Line In | No |
| Audio Line Out | No |
| Number of Network (RJ-45) Ports | 3 |
| Network & Communication | |
| Powerline Transmission Standard | HomePlug AV2 |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Height | 3" (76.20 mm) |
| Width | 12" (304.80 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 9.68 lb (4390.77 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum powerline distance supported by the TPL-430AP?
The TPL-430AP supports a maximum powerline distance of 0.30 kilometers, which is approximately 0.19 miles or 984 feet. This range allows it to extend network coverage across typical residential or small office environments using existing electrical wiring without significant signal degradation.
Does this device support Power over Ethernet (PoE)?
No, the TPL-430AP does not include a PoE (RJ-45) port. It requires a standard electrical outlet for power and uses its built-in powerline technology for data transmission over electrical lines, rather than delivering power to connected devices via Ethernet.
How many Ethernet ports are available on the TPL-430AP?
The TPL-430AP features three gigabit Ethernet ports. These ports provide high-speed wired connections for devices such as computers, gaming consoles, or network storage, complementing the wireless access point functionality for flexible networking options.
What wireless standard does the TPL-430AP use?
The TPL-430AP uses the IEEE 802.11ac wireless standard, offering dual-band AC1200 Wi-Fi. This standard delivers fast wireless transmission speeds up to 1.17 Gbit/s, ensuring compatibility with modern Wi-Fi devices and supporting high-bandwidth activities like streaming and online gaming.
Is the TPL-430AP easy to install for non-technical users?
Yes, the TPL-430AP is designed for easy installation. TRENDnet adapters auto-connect out of the box, and the WiFi Clone button allows you to copy existing wireless network settings quickly. This plug-and-play approach minimizes setup time and reduces the need for technical expertise.
What is the warranty period for the TPL-430AP?
The TPL-430AP comes with a 3-year limited warranty from TRENDnet. This warranty covers defects in materials and workmanship under normal use, providing peace of mind and support for long-term reliability in your networking setup.
