TRENDnet TV-IP1514PI 5MP Indoor/Outdoor Bullet Network Camera - White - 98. 43 ft IR Night Vision - H. 265/H. 264 - IP66 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the TV-IP1514PI utilizes a CMOS image sensor that provides a 106° field of view, balancing wide coverage with minimal distortion. The fixed 3.6 mm lens with a bright f/1.6 aperture maximizes light intake for clearer images in low-light conditions, complementing the integrated infrared LEDs that enable night vision up to 98.43 feet (30 meters).
Network connectivity is streamlined through a wired RJ-45 interface with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. The camera accepts input voltages from 100-240 V AC, accommodating standard power infrastructures globally. For storage flexibility, it supports recording directly to a memory card, providing a local backup option alongside network video recorder (NVR) integration.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This camera combines high-resolution imaging with robust construction and intelligent features to deliver a comprehensive surveillance solution. Its all-weather IP66 rating and wide operating temperature range make it exceptionally versatile for perimeter security, parking lots, building entrances, and industrial sites.
Enhanced Low-Light Performance
Infrared night vision extends monitoring capability to 98.43 feet in total darkness, while the f/1.6 lens aperture and 3D digital noise reduction maintain image clarity and reduce grain in challenging lighting.
- Infrared illumination
- Wide dynamic range handles high-contrast scenes
- Day/night functionality automatically adjusts

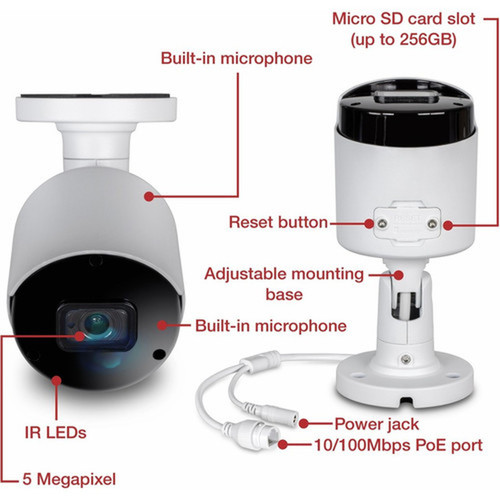

Advanced Surveillance Features
Built-in analytics and security functions reduce false alarms and protect privacy. The camera includes a microphone for audio monitoring and supports multiple configurable zones.
- Tamper detection alerts to physical interference
- Privacy masking blocks sensitive areas from recording
- Mirror function for flexible mounting orientations

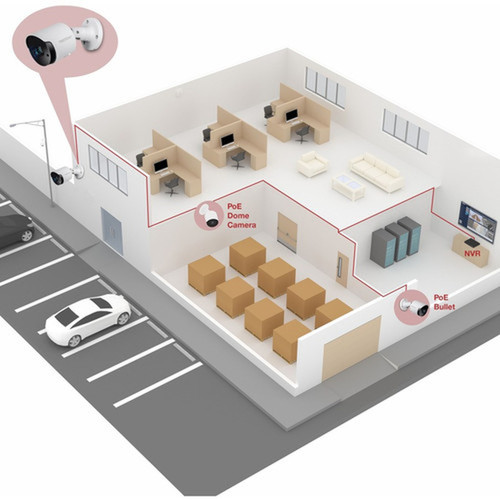

Deployment / Use Cases
The TV-IP1514PI is ideal for organizations requiring reliable, high-definition surveillance across indoor and outdoor environments. Its PoE capability and compact bullet form factor facilitate quick deployment on walls, ceilings, or poles, minimizing cabling complexity and installation time.
Common applications include retail storefronts for loss prevention, school campuses for safety monitoring, warehouse perimeters for asset protection, and residential properties for 24/7 security. The camera's remote management support allows IT and security teams to configure settings, view live feeds, and review recordings from a centralized interface, enhancing operational efficiency.
Commercial & Institutional Security
Deploy at building entrances, loading docks, or parking garages to monitor access points and deter unauthorized activity. The weatherproof design ensures consistent performance through seasonal changes.
Industrial & Infrastructure Monitoring
Use in manufacturing plants, utility sites, or transportation hubs where environmental resilience and detailed imaging are critical for safety compliance and operational oversight.

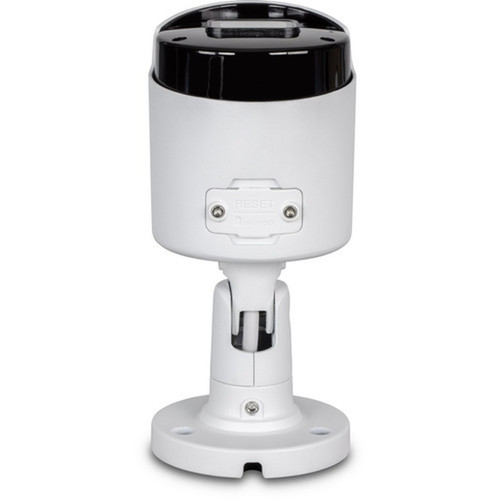

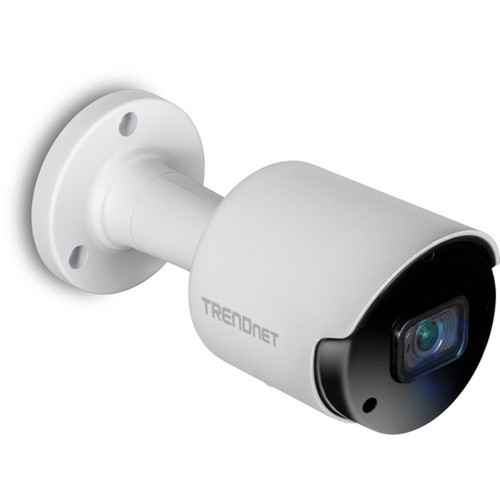

Physical Profile
Encased in a sleek white bullet housing, this camera presents a discreet yet durable profile suitable for both visible and covert installations. The design includes integrated mounting hardware for secure attachment to various surfaces, and the compact form factor minimizes visual intrusion while providing 106° coverage. Weighing approximately 13.72 ounces (389 grams), it is lightweight enough for easy positioning yet substantial for stability.
- Weight
- 13.72 oz (389 g)
- Length
- 3.6 mm (0.14")
What's in the Box
The package includes all necessary components for a complete installation, ensuring you can deploy the camera immediately upon receipt.
Highlights
- 5-megapixel resolution delivers 2608 x 1960 video for detailed surveillance
- 98.43 ft (30 m) infrared night vision ensures 24/7 monitoring capability
- IP66-rated housing for reliable indoor/outdoor use in harsh conditions
- Power over Ethernet (PoE) simplifies installation with single-cable power and data
- H.265 and H.264 video compression optimizes bandwidth and storage efficiency
- Wide 106° field of view covers expansive areas with a single camera
- Built-in microphone enables audio recording alongside video
- TAA compliant for use in U.S. federal government procurement
- 3-year limited warranty provides long-term reliability assurance
- Includes motion detection, privacy masking, and tamper detection features

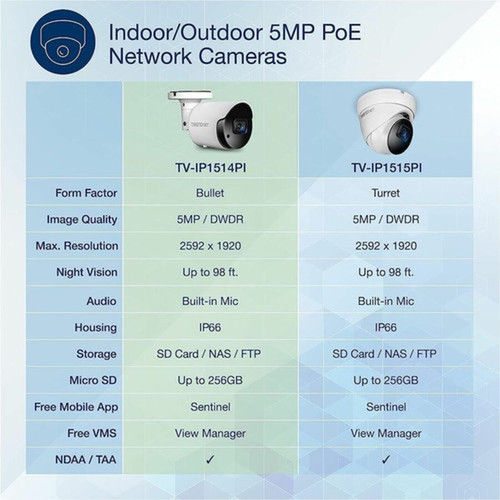

Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TV-IP1514PI |
| Brand Name | TRENDnet |
| Product Model | TV-IP1514PI |
| Product Name | TV-IP1514PI Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 106° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264 |
| Maximum Video Resolution | 2608 x 1960 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 100 V AC,240 V AC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Bullet |
| Weight (Approximate) | 13.72 oz (389 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in Microphone,Wide Dynamic Range,Day/Night,Motion Detection,3D Digital Noise Reduction,Mirror,Privacy Masking,Tamper Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | TV-IP1514PI Network Camera Weather seal Quick installation guide Camera mounting hardware |
| Ingress Protection Rating | IP66 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of the TRENDnet TV-IP1514PI camera?
The camera captures video at a maximum resolution of 2608 x 1960 pixels, which is equivalent to 5 megapixels. This high resolution provides clear, detailed imagery that is essential for identifying faces, license plates, or other critical details in surveillance footage, supporting effective monitoring and forensic review.
How far does the night vision reach, and what type is it?
The infrared night vision has an effective range of up to 98.43 feet (30 meters) in total darkness. It uses infrared LEDs to illuminate the scene without visible light, ensuring discreet 24/7 monitoring. This capability allows the camera to maintain surveillance in low-light or no-light conditions commonly encountered in outdoor or secured indoor areas.
Is this camera suitable for outdoor use, and what is its weatherproof rating?
Yes, the camera is designed for both indoor and outdoor use with an IP66 ingress protection rating. This means it is completely dust-tight and protected against powerful water jets from any direction, making it resilient in rain, snow, or dusty environments. Its operating temperature range of -22°F to 122°F (-30°C to 50°C) further ensures reliability in extreme climates.
Does the camera support Power over Ethernet (PoE)?
Yes, the TV-IP1514PI supports Power over Ethernet, allowing it to receive both data connectivity and electrical power over a single standard Ethernet cable (RJ-45). This simplifies installation by reducing the need for separate power outlets near the camera location, which is particularly advantageous for remote or ceiling-mounted deployments.
What video compression formats are supported, and why does it matter?
The camera supports both H.265 and H.264 video compression formats. H.265 (HEVC) offers approximately double the data compression efficiency of H.264, meaning it can deliver the same video quality at lower bitrates, reducing bandwidth usage and storage requirements. This is crucial for maintaining high-resolution recordings over extended periods without overwhelming network or storage resources.
What is included in the box with the camera?
The package includes the TV-IP1514PI network camera unit, a weather seal to ensure environmental protection at the connection points, a quick installation guide for setup instructions, and all necessary camera mounting hardware. These components provide everything needed for a basic installation, though you may require additional Ethernet cables or a PoE switch depending on your network setup.
