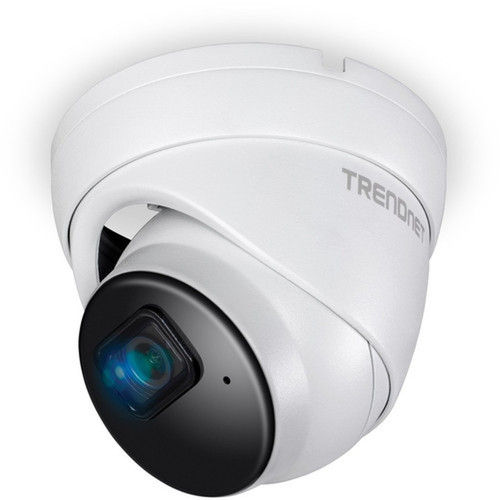

TRENDnet TV-IP1515PI 5MP Indoor/Outdoor Dome Network Camera - White - 98. 43 ft Night Vision - H. 265/H. 264 - PoE - IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the TV-IP1515PI utilizes a CMOS image sensor that balances cost-effectiveness with power efficiency, delivering high-definition video without excessive energy consumption. The camera records in 5-megapixel resolution, capturing detailed footage suitable for identification and evidence purposes. Video is encoded in H.265 and H.264 formats, allowing flexibility in network bandwidth and storage optimization.
The lens system includes a fixed focal length of 3.6 mm with an f/1.6 maximum aperture, ensuring adequate light intake in varying conditions. Connectivity is wired via an RJ-45 Ethernet port, with Power over Ethernet (PoE) support simplifying installation by delivering both data and power through a single cable. Remote management capabilities enable administrators to configure and monitor the camera from any network location.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This camera combines high-resolution imaging with durable construction, making it a versatile choice for diverse surveillance environments. Its indoor/outdoor rating and IP66 protection ensure reliable performance in rain, dust, and extreme temperatures, reducing maintenance needs and downtime.
Enhanced Night Vision
Infrared illumination provides clear black-and-white video up to 98.43 feet, enabling continuous monitoring in low-light or no-light conditions without additional lighting.
- Infrared type
- 30-meter range
- Day/night operation
Advanced Video Features

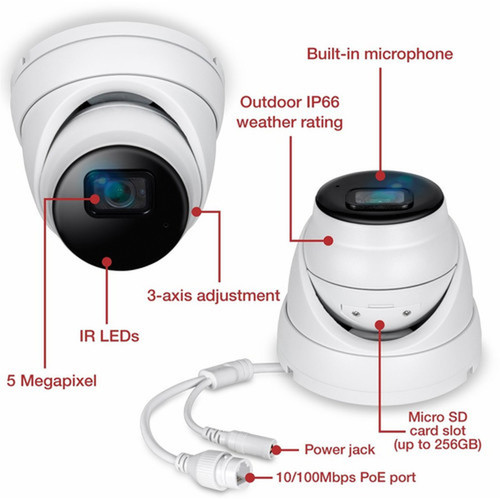

Includes wide dynamic range, 3D digital noise reduction, and a built-in microphone for audio capture, improving video clarity and situational awareness in challenging lighting or noisy environments.
- WDR support
- Noise reduction
- Audio recording
Deployment / Use Cases

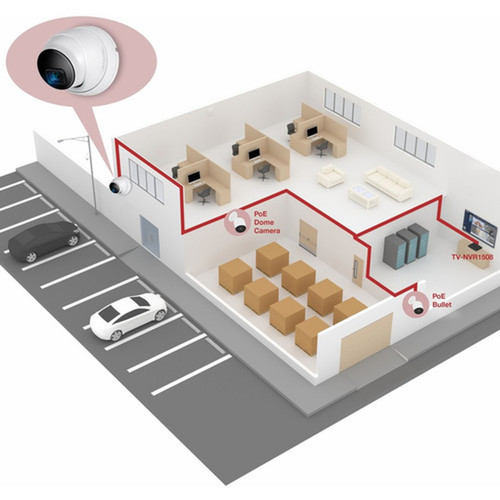

The TV-IP1515PI is ideal for perimeter security, entryway monitoring, and general surveillance in commercial, industrial, or residential settings. Its dome form factor and white color blend discreetly into ceilings or walls, while the tilt range of 0° to 80° allows for flexible mounting angles to cover specific areas.
Common applications include retail store oversight, warehouse inventory protection, parking lot monitoring, and home security systems. The camera's motion detection and tamper detection features trigger alerts for unauthorized activity, enabling proactive response. With PoE support, it integrates seamlessly into existing network infrastructures, reducing wiring complexity and installation costs.
Physical Profile
The camera features a compact dome design in white, measuring with a fixed 3.6 mm lens. It weighs approximately 15.45 ounces (438 grams), making it lightweight yet sturdy for various mounting surfaces. The IP66 rating guarantees protection against dust and water jets, suitable for outdoor installations exposed to the elements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 15.45 oz (438 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 15.45 oz (438 g)
- Length
- 3.6 mm (0.14")
What's in the Box
The package includes all necessary components for immediate deployment: the TV-IP1515PI network camera, a weather seal for outdoor protection, a quick installation guide, and camera mounting hardware. This ensures a complete, ready-to-install solution without additional purchases.
Highlights
- 5-megapixel resolution for detailed surveillance footage
- 98.43 ft (30 m) infrared night vision for 24/7 monitoring
- IP66-rated dome housing for indoor/outdoor durability
- Power over Ethernet (PoE) for simplified installation
- H.265 and H.264 video compression for bandwidth efficiency
- Wide 106° field of view with 0° to 80° tilt adjustment
- Built-in microphone and advanced features like motion detection
- TAA compliant with a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TV-IP1515PI |
| Brand Name | TRENDnet |
| Product Model | TV-IP1515PI |
| Product Name | TV-IP1515PI Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Tilt | 0° to 80° |
| Field of View | 106° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264 |
| Maximum Video Resolution | 2608 x 1960 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Minimum Thermal Focal Length | 0.14" (3.60 mm) |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 100 V AC,240 V AC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Dome |
| Weight (Approximate) | 15.45 oz (438 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in Microphone,Wide Dynamic Range,Day/Night,Motion Detection,3D Digital Noise Reduction,Mirror,Privacy Masking,Tamper Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | TV-IP1515PI Network Camera Weather seal Quick installation guide Camera mounting hardware |
| Ingress Protection Rating | IP66 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution of the TRENDnet TV-IP1515PI camera?
The camera delivers 5-megapixel resolution at 2608 x 1960 pixels, providing high-definition video suitable for clear identification of subjects and details in surveillance footage. This resolution supports real-time monitoring at 30 frames per second.
How far does the night vision reach on this camera?
Infrared night vision extends up to 98.43 feet (30 meters), allowing the camera to capture black-and-white video in complete darkness. This range ensures reliable monitoring during nighttime or low-light conditions without external lighting.
Is this camera suitable for outdoor use?
Yes, it is rated for indoor/outdoor use with an IP66 ingress protection rating, meaning it is dust-tight and protected against powerful water jets. It operates in temperatures from -22°F to 122°F and up to 95% humidity.
What power source does the camera require?
The camera supports Power over Ethernet (PoE), which delivers both data and power through a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera location.
What video compression formats are supported?
It supports H.265 and H.264 video formats. H.265 offers more efficient compression for reduced bandwidth and storage usage, while H.264 ensures compatibility with a wide range of recording systems and network video recorders.
Does the camera include audio recording capabilities?
Yes, it features a built-in microphone for audio capture, enhancing surveillance by recording sound alongside video. This is useful for environments where audio monitoring adds context, such as in retail or security checkpoints.
