Tripp Lite by Eaton AVR750U 750VA Desktop UPS - 450W Output - 12 Outlets - AVR Voltage Regulation - 3-Minute Full-Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite AVR750U 750VA Desktop UPS delivers reliable battery backup and power conditioning for critical electronics in home, office, and small business environments. This line-interactive UPS safeguards connected equipment against blackouts, brownouts, overvoltages, surges, and line noise, ensuring uninterrupted operation and data integrity.

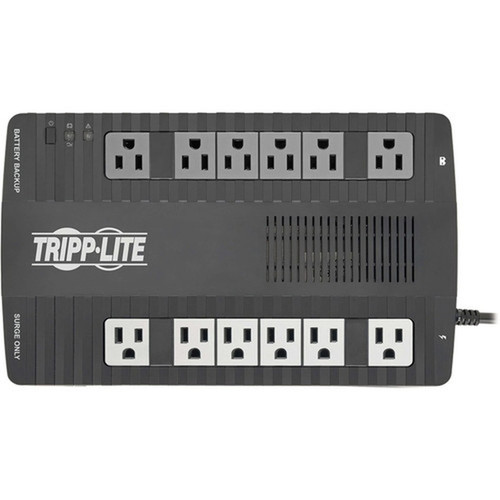

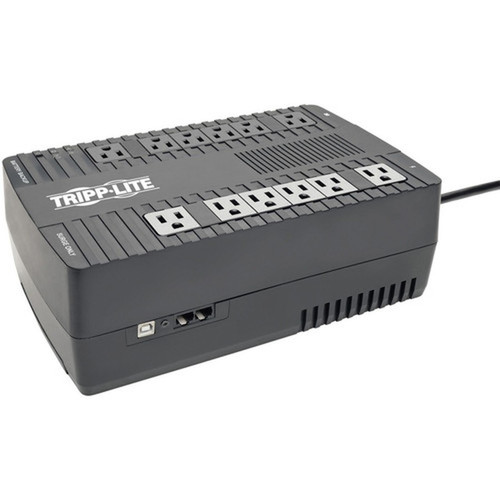

With a compact design that supports desktop, tower, or wall-mount installation, the unit offers flexible placement options. It features 12 NEMA 5-15R outlets—six with battery backup and surge protection plus six surge-only—providing ample connectivity for computers, networking gear, home theater components, and digital signage. The built-in Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without switching to battery, extending runtime and battery life.
The UPS provides 750 VA and 450 W of output capacity, handling a wide range of loads from computers to security systems. Its 3-minute full-load runtime allows time for safe shutdowns during outages, while the 11-minute half-load runtime supports extended operation for lighter equipment. High efficiency over 95% reduces energy costs and heat output, making it a sustainable choice for continuous use.
Designed for ease of use, the unit includes a USB HID-compliant port for software management, enabling graceful system shutdowns. Status indicators with green and red LEDs provide clear alerts for power conditions and faults. The replaceable battery system ensures long-term reliability, backed by a 3-year limited warranty and 100,000 Ultimate Lifetime Insurance for added protection.
Technical Overview
This UPS provides 750 VA / 450 W of output capacity, supporting a wide range of connected loads. It accepts 120 V AC input and delivers regulated output at 110 V AC, 115 V AC, or 120 V AC, maintaining stable power within a 60 Hz frequency. The pulse-width modulated sine wave output ensures compatibility with active PFC power supplies found in modern computers and servers.

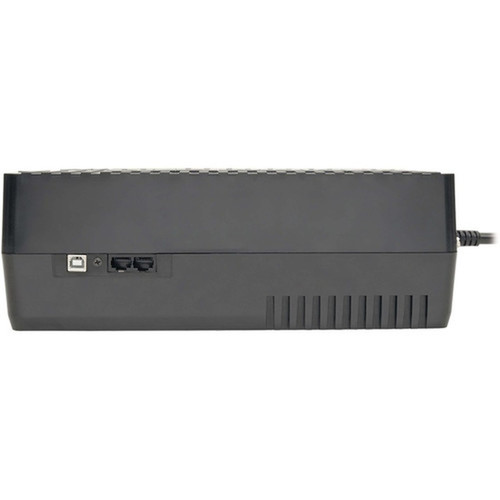

The unit incorporates a 12 V DC battery system with user-replaceable batteries. It offers a transfer time of 6 ms, EMI/RFI noise filtering, and dataline protection via an RJ-11 port. Status is indicated by two LEDs: green for power status and operating mode, red for battery-low, overload, replace-battery, and fault conditions. A USB HID-compliant port enables communication with power management software for graceful system shutdown.
Relevant product facts for this section include AVR: Yes, AVR Range: Boost +18% / Buck -15%, Plug/Connector Type: NEMA 5-15P, Load Capacity (VA): 750 VA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Tripp Lite AVR750U combines robust protection with user-friendly features designed for reliability and ease of use. Its high efficiency reduces energy consumption and heat output, while the intelligent alarm system remains silent during normal backup operation, only sounding when immediate attention is required.
Voltage Regulation
Automatic Voltage Regulation (AVR) boosts voltage by +18% and bucks by -15%, correcting brownouts and overvoltages without draining the battery.
- Extends battery life
- Maintains stable output
Outlet Configuration
Twelve outlets provide dedicated power and protection zones, with six offering full battery backup and six providing surge-only protection for non-critical devices.
- Flexible load management
- Maximizes connected devices
Deployment / Use Cases
This UPS is engineered for environments where power continuity is essential for operational integrity and data protection. Its 3-minute full-load runtime provides sufficient time to save work and perform safe shutdowns during extended outages, while the 11-minute half-load runtime supports longer operation for lighter loads.
Ideal applications include desktop computers, routers, printers, televisions, Blu-ray players, gaming consoles, ATMs, security systems, digital signage, home offices, media centers, and home theater setups. The ultra-compact form factor allows installation in space-constrained locations, and the wall-mount capability frees up desk or floor space.
Home Office & Media
Protects computers, networking equipment, and entertainment systems from power disturbances, ensuring uninterrupted productivity and entertainment.
Small Business & Digital Signage
Maintains uptime for point-of-sale systems, security cameras, and digital displays, preventing revenue loss and security gaps during power events.
Physical Profile
The black chassis measures 4.14" H x 7.48" W x 12" D (105.16 mm x 189.99 mm x 304.80 mm), offering a low-profile footprint suitable for desktop, tower, or wall-mount placement. Weighing 15.84 lb (7184.90 g), the unit is portable yet stable. It operates reliably at temperatures up to 104°F (40°C) and elevations up to 10,000 ft (3,048,000 mm), with storage tolerance from 5°F to 113°F (-15°C to 45°C).
- Width
- 7.48" (189.99 mm)
- Depth
- 12" (304.80 mm)
- Height
- 4.14" (105.16 mm)
- Weight
- 15.84 lb (7184.90 g)
What's in the Box
The package includes the AVR 750VA Desktop UPS, a USB cable for management connectivity, and an instruction manual. All components are RoHS compliant and originate from China.
Highlights
- 750 VA / 450 W output capacity for reliable backup power
- 12 NEMA 5-15R outlets: 6 battery backup + 6 surge-only
- AVR technology corrects voltage fluctuations without battery drain
- 3-minute full-load runtime, 11-minute half-load runtime
- Ultra-compact desktop, tower, or wall-mount form factor
- High efficiency >95% reduces energy costs and heat output
- USB HID-compliant port for software management and shutdown
- 3-year limited warranty with 100,000 Ultimate Lifetime Insurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | AVR750U |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Name | AVR 750VA Desktop UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Computer,Router,Printer,TV,Blu-ray Player,Gaming Console,ATM,Security System,Digital Signage,Home/Office,Media Center,Home Theater |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Management | |
| Alarm | Battery Backup,Low Battery,Overload,Replace Battery,Fault |
| Controls/Indicators | |
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 9 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 4.14" (105.16 mm) |
| Width | 7.48" (189.99 mm) |
| Depth | 12" (304.80 mm) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 15.84 lb (7184.90 g) |
| Miscellaneous | |
| Package Contents | AVR 750VA Desktop UPS USB cable Instruction manual |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
| Additional Warranty Information | 2-year warranty. 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite AVR750U provides 750 VA and 450 W of output capacity, suitable for protecting computers, networking equipment, and home theater systems from power interruptions.
How long does the battery last during a power outage?
At full load, the UPS offers a 3-minute runtime, allowing time for safe shutdowns. At half load, runtime extends to 11 minutes, providing longer backup for lighter equipment.
How many outlets does this UPS have?
It includes 12 NEMA 5-15R outlets: six with battery backup and surge protection, and six surge-only outlets for non-critical devices, offering flexible connectivity options.
What voltage does this UPS support?
The UPS accepts 120 V AC input and delivers regulated output at 110 V AC, 115 V AC, or 120 V AC, maintaining stable power for connected equipment.
Can this UPS be mounted on a wall?
Yes, the ultra-compact design supports desktop, tower, or wall-mount installation, providing flexible placement options to save space in home, office, or small business environments.
What management features are included?
A USB HID-compliant port enables software management for graceful system shutdowns, while status LEDs indicate power conditions and faults for easy monitoring.
