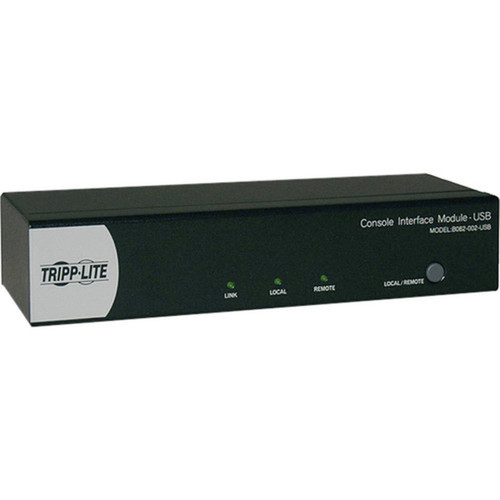

Tripp Lite by Eaton B062-002-USB Tripp Lite NetDirector KVM Extender - 1 Computer - 500 ft Range - 2 VGA - 3 USB - 1 RJ-45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender operates over a single Cat5e cable, supporting a maximum distance of 500 feet (152400 mm) between the console and the connected computer. It uses analog technology to transmit VGA video, USB keyboard, and USB mouse signals, ensuring compatibility with a wide range of legacy and modern systems without digital conversion latency.
The extender features a built-in KVM switch module that allows additional PC or server control directly from the console location. This integrated switching capability eliminates the need for separate hardware when managing multiple devices from a single station. The device accepts dual-voltage input (110 V AC or 220 V AC), providing flexibility for international deployments and varied power environments.
Relevant factors for this section include Connectivity Technology, KVM Technology, Number of Computers Supported, Network (RJ-45). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NetDirector B062-002-USB extends console control to remote locations with minimal infrastructure, reducing cable clutter and improving workspace organization. Its 500-foot range allows IT staff to position consoles in convenient, secure areas while keeping computers in isolated or environmentally controlled spaces.
Integrated Switching
The built-in KVM switch module enables control of additional PCs or servers without extra hardware, streamlining multi-device management from a single console.
- Eliminates separate switch units
- Simplifies cable management
- Reduces overall deployment cost
Compact Design
With a small desktop footprint, the extender occupies minimal space while delivering full extension capabilities, making it suitable for crowded IT racks or compact workstations.
- Saves valuable desk or rack space
- Lightweight and portable
- Easy to install and relocate
Deployment / Use Cases
This KVM extender is engineered for environments where direct physical access to computers is restricted or undesirable. In data centers, it allows administrators to control servers from a centralized console room, enhancing security and reducing exposure to noise and heat. For educational or corporate IT labs, it enables instructors to manage student workstations from a dedicated instructor station without crowding the lab area.
The extender also supports industrial control rooms, where computers may be located in harsh or inaccessible environments, and broadcast facilities, where equipment racks are often separated from production consoles. Its compatibility with Cat5e cable simplifies installation in existing structured cabling systems, avoiding the need for specialized video or USB extension cables.
Data Center Remote Management
Extend console control from a secure, climate-controlled office to server racks located in noisy or hot aisles, improving administrator comfort and equipment security.
Classroom or Training Room Setup
Allow instructors to manage multiple student computers from a single desk, facilitating demonstrations and troubleshooting without moving between stations.
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution for extending KVM console connections.
Highlights
- Extends console control up to 500 feet over Cat5e cable
- Supports one computer with USB keyboard, mouse, and VGA monitor

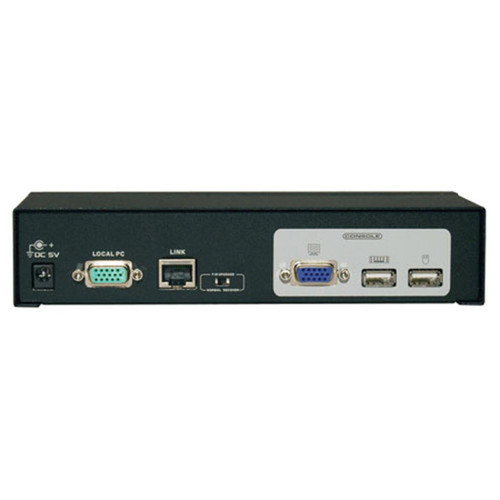

- Features 2 VGA ports, 3 USB ports, and 1 RJ-45 port
- Built-in KVM switch for additional PC/server control
- Compact desktop design with small footprint
- TAA compliant for GSA Schedule and government purchases
- Dual-voltage input (110 V AC / 220 V AC)
- Includes power adapter and 2-in-1 USB KVM cable kit
- Environmentally friendly construction
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B062-002-USB |
| Brand Name | Tripp Lite series |
| Product Line | NetDirector |
| Product Model | B062-002-USB |
| Product Name | NetDirector B062-002-USB KVM Extender |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 500 ft (152400 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Miscellaneous | |
| Package Contents | NetDirector B062-002-USB KVM Extender Power Adapter 2-in-1 USB KVM Cable Kit |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The Tripp Lite NetDirector B062-002-USB KVM Extender supports a maximum operating distance of 500 feet (152400 mm) over standard Cat5e cable. This range allows you to position the console in a convenient location while keeping the computer in a remote or secured area, ideal for data centers, server rooms, and large office setups.
How many computers can I connect with this extender?
This extender is designed to support a single computer. It connects one computer console—including USB keyboard, USB mouse, and VGA monitor—to the extender unit, enabling remote control from up to 500 feet away. For multi-computer setups, you would need additional extenders or a compatible KVM switch.
What types of ports does the extender have?
The extender includes 2 VGA ports for monitor connections, 3 USB ports for keyboard and mouse peripherals, and 1 RJ-45 port for network connectivity via Cat5e cable. These ports provide comprehensive console extension capabilities, ensuring compatibility with standard VGA displays and USB input devices.
Does this extender include a built-in KVM switch?
Yes, the NetDirector B062-002-USB features a built-in KVM switch module that allows control of additional PCs or servers directly from the console. This integrated switching functionality eliminates the need for a separate external switch, simplifying cable management and reducing hardware costs in multi-device environments.
Is this product compliant with government procurement regulations?
Yes, this KVM extender is TAA (Trade Agreements Act) compliant, making it suitable for GSA Schedule purchases and other government or institutional procurement programs. TAA compliance ensures the product meets federal requirements for origin and trade agreements, which is essential for public sector and regulated industry deployments.
What power input voltages does the extender support?
The extender supports dual input voltages of 110 V AC and 220 V AC, providing flexibility for use in different regions and power environments. This wide voltage range allows for easy deployment in North America, Europe, and other international locations without requiring additional voltage converters or adapters.
