Tripp Lite by Eaton B127F-1A1-MM-DD Video Extender Transmitter/Receiver - 4K HDMI/DisplayPort/USB - 1000 ft Range - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This extender leverages DisplayPort 1.2a standards with 4:4:4 chroma subsampling to support HDR televisions and deliver full-color accuracy without compression artifacts. It handles uncompressed multi-channel audio formats including DTSHD and Dolby AC-3 alongside 8-channel LPCM, making it suitable for immersive multimedia applications. The system supports one computer source with dedicated local and remote user access, maintaining responsive USB peripheral control over the extended distance.

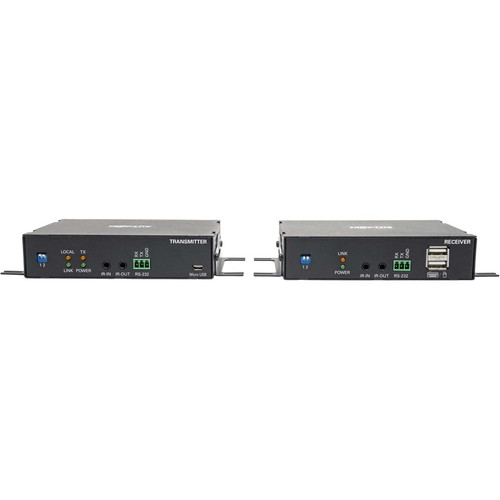

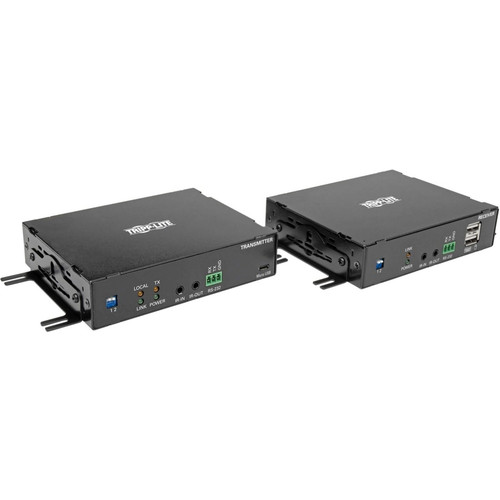

Connectivity is provided through HDMI, DisplayPort, and USB interfaces, with three USB ports enabling keyboard, mouse, and storage device pass-through. The rack-mountable black chassis houses separate transmitter and receiver units, each measuring 4.53" wide by 2.46" deep by 1.06" high and weighing approximately 1.10 pounds. Universal 100-240V AC power input with included international adapters ensures compatibility across global electrical standards.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The B127F-1A1-MM-DD delivers reliable long-distance extension without sacrificing signal quality, combining high bandwidth support with straightforward installation. Its compliance with environmental regulations and inclusion of global power adapters reduce deployment hurdles in diverse operational settings.
High-Fidelity 4K Extension
Maintains 3840 x 2160 resolution at 30 Hz over 1000 feet, preserving detail for critical visualization tasks.
- Supports HDR via DisplayPort 1.2a
- 4:4:4 chroma for accurate color reproduction
- Local HDMI port for signal verification
Comprehensive Audio Support
Transmits uncompressed digital audio formats for immersive sound in entertainment and professional AV systems.
- DTSHD and Dolby AC-3 passthrough
- 8-channel LPCM support
- Synchronized audio-video delivery
Global Deployment Ready
Includes eight international plug adapters and wide-range power supplies for immediate use worldwide.
- 100-240V AC input range
- RoHS, REACH, WEEE compliant
- TAA compliant for government procurement
Deployment / Use Cases
This video extender is ideal for environments where source equipment and displays must be separated beyond standard cable lengths. In data centers, it allows administrators to place servers in secure racks while extending console access to remote monitoring stations. Control rooms benefit from extending workstation outputs to large-format video walls without degrading 4K .
Digital signage networks can centralize media players in equipment closets while distributing content to distant displays in lobbies, retail floors, or outdoor locations. AV integrators use it in conference rooms and lecture halls to connect podium computers to projectors or displays across the room, maintaining high-resolution video and interactive USB peripheral control. The rack-mountable design integrates neatly into standard 19-inch racks alongside other network and AV gear.
Data Center Console Extension
Remotely access server consoles from administrative desks up to 1000 feet away, maintaining full keyboard, video, and mouse control.
Digital Signage Distribution
Centralize media players and extend 4K content to multiple displays across large facilities like airports, malls, or corporate campuses.

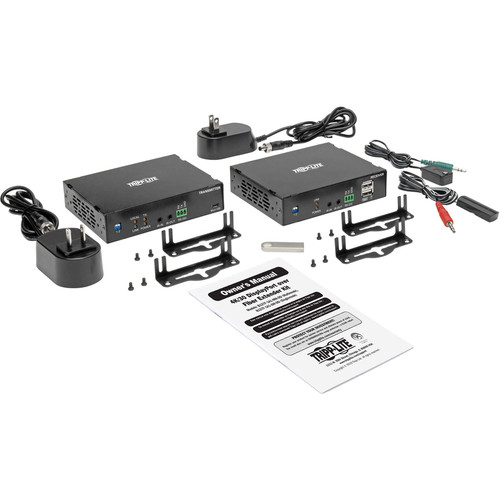

What's in the Box
The package includes all components necessary for immediate setup and global operation.
Highlights
- Extends 4K video, USB, and audio up to 1000 feet
- Supports 3840 x 2160 resolution at 30 Hz with HDR compatibility
- Transmits uncompressed DTSHD, Dolby AC-3, and 8-channel LPCM audio
- Includes HDMI, DisplayPort, and three USB ports for comprehensive connectivity
- Plug-and-play operation with no software required
- Rack-mountable black chassis for professional installation
- Universal 100-240V AC power input with eight international adapters
- Compliant with RoHS, REACH, WEEE, and TAA regulations
- Local HDMI port on transmitter for signal verification
- One-year limited warranty with manufacturer support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127F-1A1-MM-DD |
| Brand Name | Tripp Lite series |
| Product Model | B127F-1A1-MM-DD |
| Product Name | B127F-1A1-MM-DD Video Extender Transmitter/Receiver |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 1 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.06" (26.92 mm) |
| Transmitter Width | 4.53" (115.06 mm) |
| Transmitter Depth | 2.46" (62.48 mm) |
| Receiver Height | 1.06" (26.92 mm) |
| Receiver Width | 4.53" (115.06 mm) |
| Receiver Depth | 2.46" (62.48 mm) |
| Transmitter Weight (Approximate) | 1.10 lb (500 g) |
| Receiver Weight (Approximate) | 1.10 lb (500 g) |
| Miscellaneous | |
| Package Contents | 1 x Transmitter Unit 1 x Receiver Unit 2 x External power supplies with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) 8 x International plug adapters (North America, Europe, Australia, United Kingdom) 2 x Sets of Mounting Hardware Owner's Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum distance this video extender supports?
The Tripp Lite B127F-1A1-MM-DD extends video, USB, and audio signals up to 1000 feet (304.8 meters). This long-distance capability allows flexible placement of computer sources and displays in large facilities like data centers, control rooms, or digital signage networks without signal degradation.
Does this extender support 4K resolution and HDR content?
Yes, it supports 4K Ultra HD resolution up to 3840 x 2160 at 30 Hz and is compatible with HDR content through its DisplayPort 1.2a implementation with 4:4:4 chroma subsampling. This ensures high-fidelity video transmission for detailed graphics, video playback, and professional visualization applications.
What audio formats can this extender transmit?
It transmits uncompressed digital audio formats including DTSHD, Dolby AC-3, and 8-channel LPCM. This multi-channel audio support makes it suitable for immersive multimedia environments like home theaters, conference rooms, and digital signage where synchronized high-quality sound is required alongside 4K video.
How many USB ports are available, and what peripherals can I connect?
The extender provides three USB ports that support keyboard, mouse, and storage device pass-through over the extended distance. This allows full interactive control of the remote computer source, enabling tasks like file transfers, peripheral management, and real-time input without latency issues.
Is this extender rack-mountable, and what are its physical dimensions?
Yes, both the transmitter and receiver units are rack-mountable with included hardware. Each unit measures 4.53 inches wide, 2.46 inches deep, and 1.06 inches high, with a weight of approximately 1.10 pounds. The compact black design integrates neatly into standard 19-inch racks for organized professional installations.
What power requirements does this extender have, and does it include international adapters?
It operates on 100-240V AC input power, making it compatible with global electrical standards. The package includes two external power supplies and eight international plug adapters for North America, Europe, Australia, and the United Kingdom, ensuring immediate deployment in multinational environments without additional accessories.
