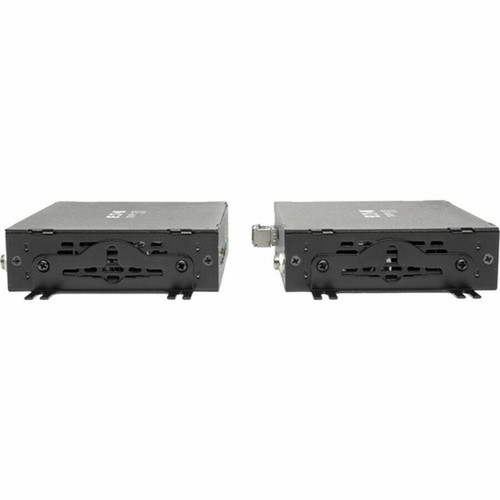

Tripp Lite by Eaton B127F-1A1-MMDDA KVM Console/Extender - 4K 3840 x 2160 - 985 ft Range - Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender utilizes wired connectivity technology to deliver reliable performance without compression artifacts. It supports a maximum operating distance of 985 feet (300228 mm), making it suitable for large facilities where direct connections are impractical.
The video subsystem handles 4K UHD resolution at 3840 x 2160, maintaining full detail for monitoring and administrative tasks. Connectivity includes one HDMI port and three USB ports on the transmitter and receiver units, with DisplayPort compatibility for additional input flexibility.
Relevant factors for this section include Connectivity Technology, Maximum Operating Distance, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This KVM extender combines extended reach with high-resolution support, eliminating the need for local consoles near equipment racks. The 985-foot range provides flexibility in console placement while maintaining responsive keyboard and mouse control.
High-Resolution Extension
Delivers 4K 3840x2160 video quality over extended distances, ensuring detailed visual monitoring without degradation.
- Full 4K resolution support
- Crisp 3840 x 2160 pixel detail
- No compression artifacts
Flexible Installation Options
Supports both rack mounting and wall mounting configurations to adapt to various infrastructure layouts.
- Rack-mountable design
- Wall mount compatible
- Compact form factor
Global Power Compatibility
Accepts 100-240V AC input with included international plug adapters for deployment in multiple regions.
- Wide voltage range
- International plug adapters included
- Global deployment ready
Deployment / Use Cases
This KVM extender is engineered for environments where equipment must be monitored and controlled from a distance. Its 985-foot range makes it ideal for large data centers where server racks are distributed across expansive floors.
The system excels in control room applications where operators need to manage multiple devices from a centralized console. The high-resolution 4K support ensures clear visualization of system status screens, security camera feeds, and monitoring interfaces.
Data Center Management
Enables remote console access to servers and networking equipment from a centralized administrative station.
- Extended reach to distant racks
- Centralized control point
- Reduced need for local consoles
Broadcast & Production Environments
Supports high-resolution video extension for monitoring production equipment and editing workstations.
- 4K video quality
- Precise peripheral control
- Reliable wired connection
What's in the Box
The package includes all necessary components for immediate deployment of the KVM extension system.
Highlights
- Extends KVM signals up to 985 feet (300228 mm)
- Supports 4K video resolution at 3840 x 2160
- Includes HDMI and DisplayPort connectivity
- Features three USB ports for peripheral control
- Rack-mountable and wall-mountable design
- Accepts 100-240V AC input voltage
- Includes international plug adapters for global use
- Black finish matches professional IT equipment
- TAA compliant for government procurement
- Backed by 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127F-1A1-MMDDA |
| Brand Name | Tripp Lite series |
| Product Model | B127F-1A1-MMDDA |
| Product Name | B127F-1A1-MMDDA KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 985 ft (300228 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 1 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable,Wall Mountable |
| Transmitter Height | 5.04" (128.02 mm) |
| Transmitter Width | 1.17" (29.72 mm) |
| Transmitter Depth | 3.94" (100.08 mm) |
| Receiver Height | 5.04" (128.02 mm) |
| Receiver Width | 1.17" (29.72 mm) |
| Receiver Depth | 3.94" (100.08 mm) |
| Transmitter Weight (Approximate) | 8.11 oz (230 g) |
| Receiver Weight (Approximate) | 8.11 oz (230 g) |
| Miscellaneous | |

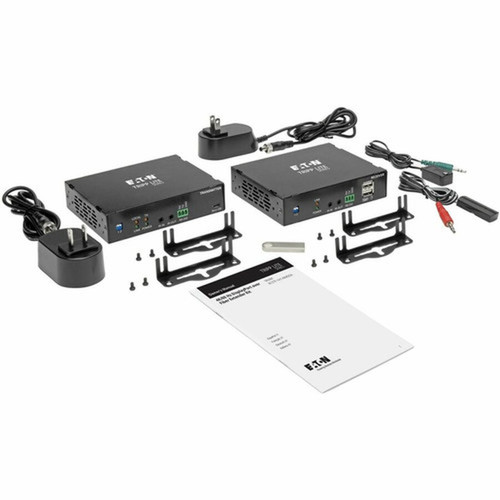

| Package Contents | Transmitter Receiver 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) with 4.5 ft. (1.4 m) cord 8 x International Plug Adapters (North America, Europe, Australia, United Kingdom) 2 x Sets of Mounting Hardware Owner's Manual |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The Tripp Lite B127F-1A1-MMDDA KVM Console/Extender supports a maximum operating distance of 985 feet (300228 mm). This extended range allows console placement far from equipment racks in large data centers, control rooms, or production environments while maintaining full keyboard, video, and mouse functionality.
What video resolutions does this extender support?
This KVM extender supports 4K Ultra HD video at a maximum resolution of 3840 x 2160 pixels. It maintains this high-resolution signal quality across the full 985-foot extension range, ensuring detailed visual monitoring for administrative tasks, security feeds, or production monitoring applications.
What types of video inputs are compatible with this extender?
The extender supports both HDMI and DisplayPort video inputs. The transmitter unit includes one HDMI port for direct connection, with DisplayPort compatibility for additional input flexibility. This dual-interface support accommodates various source devices including computers, servers, and monitoring equipment.
How many USB ports are available for peripheral connections?
The KVM extender system provides three USB ports on both the transmitter and receiver units. These ports support keyboard and mouse connectivity, allowing full peripheral control over the extended distance. The USB implementation maintains responsive input without lag for precise equipment management.
What power requirements does this extender have?
The extender accepts input voltage from 100V AC to 240V AC, making it compatible with power standards worldwide. The package includes two external power supplies with this wide voltage range, plus eight international plug adapters for North American, European, Australian, and United Kingdom outlets.
What mounting options are available for installation?
This KVM extender supports both rack mounting and wall mounting configurations. The compact transmitter and receiver units (5.04" H × 1.17" W × 3.94" D) include two sets of mounting hardware for flexible installation in data center racks, equipment cabinets, or wall-mounted enclosures.
