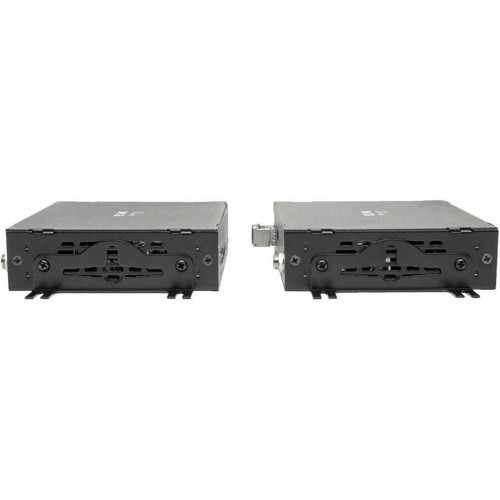

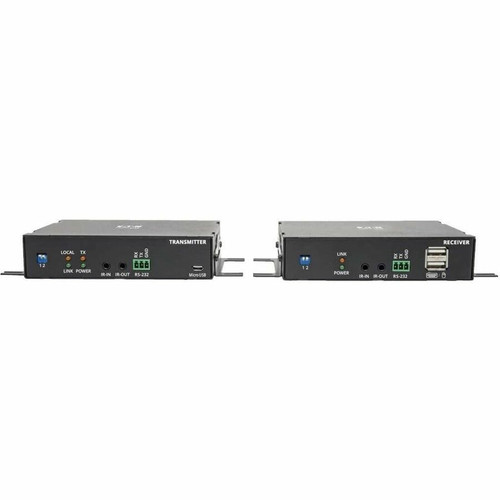

Tripp Lite by Eaton B127F-1A1-SM-DD Video Extender Transmitter/Receiver - 4K 3840 x 2160 - 32808. 4 ft Distance - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video extender operates over a maximum distance of 32808.40 feet (approximately 10 kilometers), maintaining 4K video quality throughout its range. The system supports DisplayPort 1.2a standards with 4:4:4 subsampling for HDR televisions, ensuring color accuracy and detail preservation for professional video applications.
Connectivity includes HDMI, DisplayPort, and USB interfaces, with the transmitter featuring a local HDMI port that allows monitoring of the Ultra HD image being displayed. The extender supports uncompressed DTSHD, Dolby AC-3, and 8-channel LPCM digital audio, providing complete audio-visual transmission without compression artifacts.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This video extender delivers several distinct advantages for professional video extension applications. The combination of long-distance capability with 4K resolution support addresses the growing demand for high-quality video transmission in surveillance, broadcasting, and presentation environments.
Plug-and-Play Operation
No software installation required for immediate deployment, reducing setup time and technical complexity.
- Immediate functionality
- No driver installation
- Simplified configuration
International Deployment Ready
Includes eight international plug adapters covering North America, Europe, Australia, and United Kingdom standards.
- Global power compatibility
- Reduced accessory costs
- Simplified international rollout
Environmental Compliance
Meets RoHS, REACH, and WEEE directives while being TAA compliant for government and institutional procurement.
- Regulatory compliance
- Government procurement ready
- Environmental standards met
Deployment / Use Cases
The B127F-1A1-SM-DD video extender serves critical roles in environments where source equipment must be separated from display or control locations. Its 32808.40-foot maximum distance makes it suitable for large facilities, campuses, and industrial complexes where running direct video cables would be impractical or cost-prohibitive.
Common applications include digital signage networks where content sources are centralized in server rooms while displays are distributed throughout buildings, surveillance control rooms where monitoring stations are separated from recording equipment, and presentation systems in auditoriums or lecture halls where computers are kept in technical closets away from projection equipment.
Control Room Integration
Extend computer signals from server racks to operator consoles while maintaining 4K video quality for monitoring and control applications.
Digital Signage Distribution
Centralize media players in secure locations while distributing high-resolution content to displays throughout facilities without quality degradation.
What's in the Box
The package includes all necessary components for immediate deployment, with international power compatibility built into the supplied accessories.
Highlights
- Extends 4K video up to 32808.40 feet (approximately 10 kilometers)
- Supports 3840 × 2160 resolution at 30 Hz refresh rate
- Includes HDMI, DisplayPort, and USB connectivity
- Plug-and-play operation with no software required
- Rack-mountable design for professional installations
- International power adapters for global deployment
- Supports uncompressed DTSHD, Dolby AC-3, and 8-channel LPCM audio
- Meets DisplayPort 1.2a standards with 4:4:4 subsampling
- TAA compliant for government procurement
- Includes mounting hardware for server cabinet installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127F-1A1-SM-DD |
| Brand Name | Tripp Lite series |
| Product Model | B127F-1A1-SM-DD |
| Product Name | B127F-1A1-SM-DD Video Extender Transmitter/Receiver |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 32808.40 ft (10000000 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 1 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.06" (26.92 mm) |
| Transmitter Width | 4.53" (115.06 mm) |
| Transmitter Depth | 2.46" (62.48 mm) |
| Receiver Height | 1.06" (26.92 mm) |
| Receiver Width | 4.53" (115.06 mm) |
| Receiver Depth | 2.46" (62.48 mm) |
| Transmitter Weight (Approximate) | 1.10 lb (500 g) |
| Receiver Weight (Approximate) | 1.10 lb (500 g) |
| Miscellaneous | |
| Package Contents | 1 x Transmitter Unit 1 x Receiver Unit 2 x External power supplies with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) 8 x International plug adapters (North America, Europe, Australia, United Kingdom) 2 x Sets of Mounting Hardware Owner's Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum distance this video extender supports?
The Tripp Lite by Eaton B127F-1A1-SM-DD supports video extension up to 32808.40 feet (approximately 10 kilometers or 6.2 miles). This extended range makes it suitable for large facilities, campuses, and industrial applications where source equipment must be located far from display or control points while maintaining 4K video quality throughout the transmission distance.
What video resolutions does this extender support?
This video extender supports 4K Ultra HD resolution at 3840 × 2160 pixels with a 30 Hz refresh rate. It maintains full 4:4:4 color subsampling for HDR televisions and meets DisplayPort 1.2a standards, ensuring color accuracy and detail preservation for professional video applications requiring high-quality image transmission over extended distances.
What types of audio does this system support?
The extender supports uncompressed digital audio formats including DTSHD, Dolby AC-3, and 8-channel LPCM. This ensures high-fidelity audio transmission alongside video signals without compression artifacts, making it suitable for applications where audio quality is critical, such as presentation systems, digital signage with sound, and control room environments.
How many computers and users does this extender support?
This KVM console/extender supports a single computer with one local user and one remote user configuration. The single-computer design provides dedicated extension for individual systems, making it ideal for applications where specific computers need to be extended to remote locations while maintaining local access capabilities at the source location.
What power requirements does this extender have?
The system operates on 100-240V AC input voltage with external power supplies that accept 100V AC to 240V AC range at 50/60 Hz. Each unit includes an external power supply with international plug adapters for North America, Europe, Australia, and United Kingdom standards, providing global deployment flexibility without requiring additional power conversion equipment.
Is this extender rack-mountable and what are its dimensions?
Yes, both transmitter and receiver units are rack-mountable and include mounting hardware for standard 19-inch server cabinets. Each unit measures 1.06 inches in height, 4.53 inches in width, and 2.46 inches in depth (26.92 × 115.06 × 62.48 mm), with a weight of approximately 1.10 pounds (500 grams) per unit. The compact design allows efficient use of rack space in professional installations.
