Tripp Lite by Eaton B140-202 Tripp Lite DVI over Cat5 2 x 2 Matrix Switch - 2-Port - WUXGA 1920 x 1200 - 200 ft Range
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

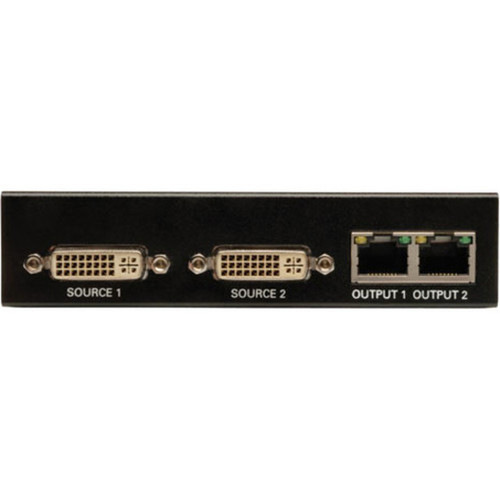

This video matrix switch operates over Cat5e or Cat6 cable using DVI Single Link technology, supporting computer resolutions up to 1920x1200. It features two DVI inputs and two RJ-45 outputs, with each RJ-45 port carrying video signals to corresponding displays. The external power supply accepts 100-240V input and delivers 5V/2A output for reliable operation across different electrical environments.
The switch's compact form factor measures 5" wide x 3.90" deep x 1.20" high, weighing approximately 12.80 ounces for easy placement on desks, shelves, or equipment racks. Signal transmission maintains quality across the maximum 200-foot distance without requiring signal boosters or repeaters when using quality Cat5e/6 cabling.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The B140-202 delivers cost-effective video distribution by leveraging existing network cabling infrastructure instead of requiring dedicated DVI cables. Its matrix switching capability provides operational flexibility that static splitters cannot match, while maintaining signal quality across extended distances.
Extended Distance Capability
Transmits DVI signals up to 200 feet over standard Cat5e/6 cable, enabling display placement far from video sources without signal degradation.
- Eliminates DVI cable distance limitations
- Uses inexpensive network cabling
- Maintains 1920x1200 resolution
Flexible Matrix Switching
Routes any of two DVI inputs to any of two displays independently, allowing dynamic display configuration changes without physical reconnection.
- Any-input-to-any-output routing
- Remote control included
- Eliminates manual cable swapping
Government Procurement Ready
TAA compliance ensures eligibility for government and institutional purchases under GSA Schedule contracts, with full documentation support.
- Federal Trade Agreements Act compliant
- Suitable for GSA Schedule
- Complete ownership documentation
Deployment / Use Cases
This matrix switch excels in environments requiring flexible video sharing between multiple sources and displays. Conference rooms benefit from the ability to switch between laptop presentations and dedicated media players on wall-mounted displays. Control centers can distribute surveillance feeds or operational data to multiple monitoring stations from centralized video sources.
Digital signage installations use the switch to manage content across multiple displays from compact media players, while educational facilities employ it in computer labs and training rooms to share instructor demonstrations across student workstations. The 200-foot transmission distance enables displays to be placed throughout larger spaces without locating video sources centrally.
Conference Room AV
Switch between laptop inputs and media players on wall displays during meetings and presentations.
Control Center Monitoring
Distribute video feeds from security cameras or data sources to multiple operator stations.
Physical Profile
The compact switch measures 5" wide by 3.90" deep by 1.20" high, with a lightweight design at approximately 12.80 ounces. This small footprint allows placement on desks, mounting under surfaces, or integration into equipment racks using included hardware. The unit's low-profile design maintains discreet installation while providing full matrix switching functionality.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.20" (30.48 mm), 5" (127 mm), 3.90" (99.06 mm), 12.80 oz (362.87 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5" (127 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 1.20" (30.48 mm)
- Weight
- 12.80 oz (362.87 g)
What's in the Box
The package includes all components needed for immediate deployment of the DVI matrix switching system.
Highlights
- Shares two DVI sources between two monitors simultaneously
- Supports WUXGA resolution up to 1920x1200 at 60Hz
- Transmits video signals up to 200 feet over Cat5e/6 cable
- Matrix switching allows any input to any output routing
- Plug-and-play operation requires no software configuration
- Compact design measures 5"W x 3.90"D x 1.20"H
- Includes remote control for convenient switching
- TAA compliant for government procurement eligibility
- Universal power supply supports 100-240V input
- Backed by 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B140-202 |
| Brand Name | Tripp Lite series |
| Product Name | DVI over Cat5 2x2 Matrix Switch, 2-Port |
| Product Type | Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Display |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| DVI In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 2 |
| Number of DVI Inputs | 2 |
| Media & Performance | |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Physical Characteristics | |
| Height | 1.20" (30.48 mm) |
| Width | 5" (127 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 12.80 oz (362.87 g) |
| Miscellaneous | |
| Package Contents | DVI over Cat5 2x2 Matrix Switch, 2-Port External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A Mounting Hardware Remote Control Owners Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What type of cable does this matrix switch require for video transmission?
The Tripp Lite B140-202 uses standard Cat5e or Cat6 network cable for video transmission between the switch and displays. This allows you to leverage existing network cabling infrastructure instead of purchasing expensive dedicated DVI cables. The switch supports transmission distances up to 200 feet when using quality Cat5e/6 cable while maintaining full 1920x1200 resolution.
How many video sources and displays can this switch support simultaneously?
This is a 2x2 matrix switch, meaning it supports two DVI video inputs and two display outputs simultaneously. You can connect two different video sources (such as computers or media players) and two monitors or displays. The matrix switching capability allows you to route either input to either output independently, providing flexible display configuration options.
What is the maximum resolution supported by this DVI over Cat5 switch?
The switch supports DVI Single Link computer resolutions up to WUXGA (1920 x 1200) at 60Hz refresh rate. This resolution is suitable for most business and presentation applications, including detailed spreadsheets, design work, and high-quality video playback. The signal maintains integrity across the full 200-foot transmission distance without resolution degradation.
How is the switching between video sources controlled?
Switching between video sources is controlled via the included remote control, allowing you to change which input displays on which output without physical cable changes. The plug-and-play design requires no software installation or configuration - simply connect your DVI sources to the inputs, connect displays via Cat5e/6 cable to the outputs, and use the remote to select your desired input/output combinations.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance means this product meets the requirements for purchase by U.S. federal government agencies and institutions under GSA Schedule contracts. The switch is manufactured in Taiwan, which is a TAA-designated country, and includes all necessary documentation to support government procurement processes. This makes it suitable for educational, municipal, and federal installations.
What power requirements does this matrix switch have?
The switch includes an external universal power supply that accepts 100-240V AC input at 50/60Hz, making it compatible with power standards worldwide. The power supply outputs 5V DC at 2A to the switch unit. This design keeps heat generation away from the switch enclosure and allows easy replacement if needed, while the wide voltage range ensures reliable operation in different electrical environments.
