Tripp Lite by Eaton BC450 BC450450VA Desktop/Wall Mountable UPS - 255W - 4 Battery-Backed Outlets - 6.5-Hour Recharge - Standby UPS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

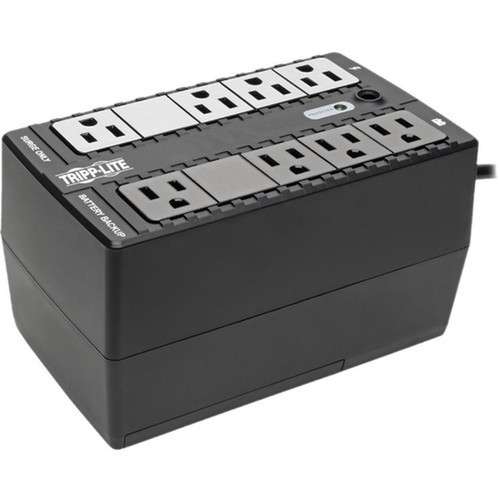

The Tripp Lite by Eaton BC450 is a 450VA standby UPS engineered for small office and home office environments where reliable power protection is essential. This compact unit delivers 255 watts of power capacity through a combination of four battery-backed outlets and four surge-only outlets, providing comprehensive coverage for essential networking equipment, computers, and digital signage systems.
Designed with greater than 95% efficiency, this GREEN UPS reduces energy consumption and thermal emissions while maintaining consistent performance. The pulse-width modulated sine wave output ensures clean power delivery to sensitive electronics, and the 10ms transfer time prevents disruption during power events. The unit's compact desktop or wall-mountable form factor makes it ideal for space-constrained installations where footprint matters.
With a 12V DC battery system that supports replaceable batteries, the BC450 provides up to 6.9 minutes of runtime at half load, allowing sufficient time for graceful shutdowns during brief outages. LED status indicators clearly display operating mode and fault conditions, while the intelligent alarm system remains silent during normal battery operation but audibly alerts for critical events like low battery or overload conditions.
Technical Overview
This standby UPS operates on 120V AC input with output voltages adjustable between 110V, 115V, and 120V AC to accommodate various equipment requirements. The 60Hz frequency remains stable during both utility and battery operation, while the integrated EMI/RFI noise filter eliminates line interference that can damage connected devices. The unit features a NEMA 5-15P plug and eight NEMA 5-15R receptacles, providing flexible connectivity options for North American power standards.
The power management system includes a 316-joule surge energy rating for robust protection against voltage spikes, and the single-phase design ensures compatibility with standard residential and commercial electrical systems. Thermal dissipation is managed at 13.10 BTU/h, and the unit operates reliably in temperatures up to 104°F (40°C) with storage capabilities from 5°F to 113°F (-15°C to 45°C). Maximum operating elevation extends to 9,842 feet (3,000,000 mm), supporting deployment in various geographic locations.
Battery performance is optimized through controlled charging cycles, with typical recharge time of 6.5 hours after complete discharge. The replaceable battery design extends service life, and the system monitors battery health through dedicated status indicators. Transfer between utility and battery power occurs within 10 milliseconds, ensuring uninterrupted operation for connected equipment during power transitions.
Key Product Advantages
The BC450 combines compact desktop design with wall-mount flexibility, making it ideal for space-constrained installations. Its comprehensive protection suite guards against blackouts, brownouts, surges, and line noise while providing sufficient runtime for graceful shutdowns.
Intelligent Alarm System
Remains silent during normal battery operation but audibly alerts for low battery, faults, and overload conditions, ensuring you're notified only when intervention is required.
- Silent during normal backup
- Audible for critical events
- Low battery warning
Energy Efficient Design
Greater than 95% efficiency reduces power consumption and heat generation, lowering operating costs while minimizing environmental impact.
- Reduces energy costs
- Lowers thermal dissipation
- GREEN UPS certified
Deployment / Use Cases
The BC450 is engineered for small office and home office environments where reliable power protection is essential but space is limited. Its compact footprint and versatile mounting options make it suitable for desks, shelves, or wall installations near critical equipment.
This UPS supports a wide range of applications including networking infrastructure, point-of-sale systems, security equipment, and entertainment centers. The combination of battery backup and surge protection ensures continuous operation and equipment longevity across diverse use cases.
SOHO Networking
Protects routers, switches, access points, and modems from power fluctuations, maintaining network connectivity during outages.
- Router protection
- Network continuity
- Remote access maintenance
Digital Signage & Kiosks
Ensures display systems remain operational during brief power interruptions, preventing content disruption and system reboots.
- Display continuity
- Prevents reboot cycles
- Public information systems
Physical Profile
Measuring 4.33 inches wide by 4.13 inches high by 7.28 inches deep, the BC450 offers a compact footprint that fits easily on desktops or mounts securely to walls. Weighing just 3.96 pounds, this lightweight design simplifies installation and relocation while maintaining structural integrity for long-term deployment.
The desktop/wall mountable configuration provides installation flexibility for various environments, from office workstations to retail counter spaces. The compact dimensions make it suitable for placement under monitors, on shelves, or in network closets where space is limited. The unit's finish and construction are designed for durability in typical SOHO environments, with proper ventilation maintained through strategic port placement and thermal management features.
- Width
- 4.33" (109.98 mm)
- Depth
- 7.28" (184.91 mm)
- Height
- 4.13" (104.90 mm)
- Weight
- 3.96 lb (1796.23 g)
What's in the Box
The BC450 ships complete with all necessary components for immediate deployment and proper operation. Each unit includes the UPS itself along with comprehensive documentation to support setup, installation, and ongoing maintenance.
Highlights
- 450VA/255W power capacity for SOHO equipment protection
- 4 battery-backed outlets plus 4 surge-only outlets
- Up to 6.9 minutes runtime at half load
- 6.5-hour typical battery recharge time
- Desktop or wall mountable compact design
- Greater than 95% energy efficiency
- EMI/RFI noise filtering and surge protection
- 2-year limited warranty with lifetime insurance
- Replaceable battery for extended service life
- Silent alarm with audible alerts for critical events
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BC450 |
| Brand Name | Tripp Lite series |
| Product Model | BC450 |
| Product Name | BC450 450VA Desktop/Wall Mountable UPS |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | SOHO Networking Device,Digital Signage,Home Theater,Desktop Computer,Computer,SOHO Office,Media Center,Kiosk,Security System,Business,Router,Printer,TV,Gaming Console,Blu-ray Player,ATM,Monitor,Telephone System,Access Point |
| Power Description | |
| Load Capacity (VA) | 450 VA |
| Load Capacity (Watt) | 255 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Management | |
| Alarm | Low Battery,Fault,Overload,Replace Battery |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Operating mode Fault status |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 1.50 Minute |
| Backup/Run Time (Half Load) | 6.90 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 13.10 BTU/h |
| Physical Characteristics | |
| Height | 4.13" (104.90 mm) |
| Width | 4.33" (109.98 mm) |
| Depth | 7.28" (184.91 mm) |
| Form Factor | Desktop/Wall Mountable |
| Weight (Approximate) | 3.96 lb (1796.23 g) |
| Miscellaneous | |
| Package Contents | BC450 450VA Desktop/Wall Mountable UPS Owner's Manual |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the Tripp Lite by Eaton BC450 UPS?
The Tripp Lite by Eaton BC450 UPS provides 450 VA (volt-amps) and 255 watts of power capacity, making it suitable for protecting small office and home office equipment like computers, networking devices, and digital signage systems. This capacity ensures reliable backup power during outages to support essential operations and graceful shutdowns.
What is the runtime for this UPS at full and half load?
At full load, the BC450 offers 1.5 minutes of backup runtime, while at half load, it provides up to 6.9 minutes. This runtime allows sufficient time to save files and safely shut down connected equipment during power interruptions, minimizing data loss and system damage in SOHO environments.
How many outlets does the BC450 UPS have, and what types are included?
The BC450 features eight total outlets: four battery-backed outlets that provide both surge protection and backup power, and four surge-only outlets for additional protection without battery support. This configuration allows you to prioritize critical devices for battery backup while extending surge protection to less essential equipment.
What input and output voltage specifications does this UPS support?
The UPS operates on a standard 120V AC input and delivers output voltages adjustable between 110V, 115V, and 120V AC. This flexibility ensures compatibility with a wide range of North American electronic devices, providing stable power delivery during both utility and battery operation to protect sensitive equipment.
Is the Tripp Lite BC450 designed for desktop or rack deployment?
The BC450 is designed as a desktop or wall-mountable UPS, not for rack deployment. Its compact form factor measures 4.33 inches wide by 4.13 inches high by 7.28 inches deep, making it ideal for space-constrained installations on desks, shelves, or walls in small office and home office settings.
What management and connectivity features are included with this UPS?
The BC450 includes LED status indicators for operating mode and fault conditions, an intelligent alarm system that remains silent during normal battery operation but audibly alerts for low battery, faults, and overloads, and a replaceable 12V DC battery. It also features EMI/RFI noise filtering, a 316-joule surge energy rating, and a NEMA 5-15P plug with eight NEMA 5-15R receptacles for flexible connectivity.
