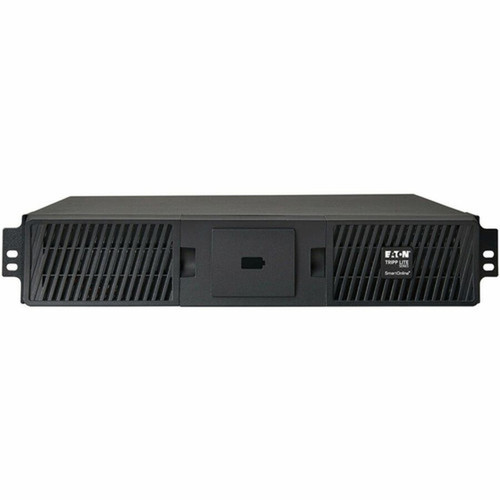

Tripp Lite by Eaton BP72RT Tripp Lite 72V Extended Battery Module - EBM for SmartOnline UPS Systems - 2U Rack/Tower - Hot-swappable Lead Acid
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This extended battery module is built around a robust lead-acid battery bank, configured to deliver 72 volts DC to compatible SmartOnline UPS systems. The valve-regulated design minimizes maintenance and prevents electrolyte leakage, making it suitable for installation in office or data center environments. The module is explicitly designed for hot-swapping, permitting trained personnel to replace the battery unit while the UPS remains online and supporting the connected load.

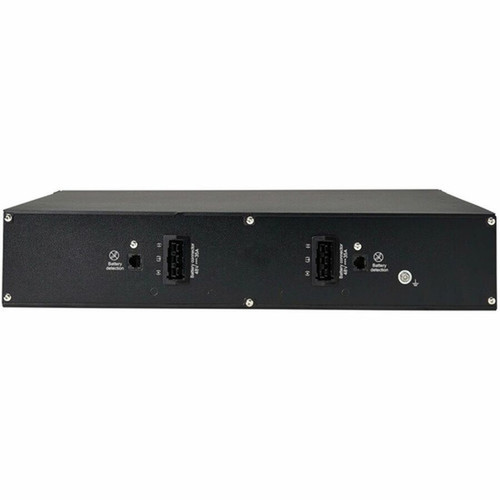

The electrical interface is straightforward, connecting via the supplied external battery cable to extend the DC bus of the host UPS. This integration allows the UPS to utilize the additional battery capacity transparently, extending runtime proportionally based on the connected load. The module operates effectively within a standard temperature range of 32°F to 104°F (0°C to 40°C).
Relevant factors for this section include Battery Characteristics, Battery Chemistry, Hot Swappable, Minimum Operating Temperature. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The BP72RT EBM delivers tangible benefits for UPS runtime management and system longevity. Its primary advantage is the restoration of full backup capacity to a UPS whose original internal batteries may have weakened over time, effectively renewing the system's performance without replacing the entire UPS unit.
Hot-swappable Design
Enables battery replacement without interrupting the protected load. IT staff can perform maintenance during business hours without causing downtime.
- No system shutdown required
- Supports continuous uptime
Extended Runtime Capacity
Adds substantial battery reserve to compatible SmartOnline UPS systems, directly increasing the available backup time for connected equipment during a utility power failure.
Rack-Optimized Form Factor
The 2U height fits standard 19-inch rack enclosures, conserving valuable data center space. The included rack-mounting hardware facilitates secure installation.
- Standard 19-inch rack width
- Includes mounting hardware
Deployment / Use Cases
This extended battery module is deployed as a strategic upgrade or replacement component for existing Tripp Lite SmartOnline UPS infrastructure. It is ideal for environments where the original UPS batteries are approaching end-of-life but the UPS electronics remain fully functional, offering a cost-effective alternative to a complete system replacement.
Common deployment scenarios include server rooms, network closets, and telecom installations where extended backup runtime is necessary to complete orderly shutdowns or ride through short-term power disturbances. The module is compatible with specific Tripp Lite SmartOnline UPS models, including the SU2200RTXLCD2U, SU3000RTXLCD2U, SUINT2200LCD2U, and SUINT3000LCD2U series, among others listed in the specifications.
UPS Runtime Extension
Deploy this EBM to add backup minutes or hours to a compatible UPS, ensuring critical systems have sufficient time to shut down gracefully or remain operational during an outage.
Battery Refresh for Aging UPS
Use this module to replace depleted internal batteries in a SmartOnline UPS, restoring it to like-new backup performance and postponing capital expenditure on a new UPS.
Physical Profile
The module is engineered for density and stability in a rack environment. It occupies 2U (3.41 inches) of vertical rack space, with a width of 17.33 inches to fit standard 19-inch rack frames. The depth of 23.82 inches provides a stable footprint, and the unit's approximate weight of 86.4 pounds reflects its substantial lead-acid battery content. The design includes integrated handles or features to aid installation and removal from the rack.
- Width
- 17.33" (440.18 mm)
- Depth
- 23.82" (605.03 mm)
- Height
- 3.41" (86.61 mm)
- Weight
- 86.40 lb (39190.38 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- Extends runtime for compatible Tripp Lite SmartOnline UPS systems.
- Hot-swappable design allows for battery replacement without downtime.
- 72 V DC output from a reliable lead-acid battery bank.
- 2U rack-mountable form factor saves valuable data center space.
- Valve-regulated, maintenance-friendly battery chemistry.
- Includes external battery cable and rack-mounting hardware.
- Backed by a 2-year limited warranty.
- Compliant with REACH and RoHS environmental standards.
- Compatible with specific SU2200RTXLCD2U, SU3000RTXLCD2U, and SUINT series UPS models.
- Operates in temperatures from 32°F to 104°F (0°C to 40°C).
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BP72RT |
| Brand Name | Tripp Lite series |
| Product Model | BP72RT |
| Product Name | 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower |
| Product Type | External Battery Pack |
| Technical Information | |
| Battery Characteristics | Valve-regulated,Hot-swappable,User Replaceable |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Output Voltage | 72 V DC |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.41" (86.61 mm) |
| Width | 17.33" (440.18 mm) |
| Depth | 23.82" (605.03 mm) |
| Weight (Approximate) | 86.40 lb (39190.38 g) |
| Miscellaneous | |
| Package Contents | 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower External Battery Cable Rack-mounting Hardware Quick Start Guide |
| Compatibility | Tripp Lite SmartOnline UPS Systems: SU2200RTXLCD2U SU2200RTXLCDN SU3000RTXLCD2U SU3000RTXLCD2UN SUINT2200LCD2U SUINT3000LCD2U |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | Extended Service Plans: 5-year depot exchange plan: TL9SW5Y-3000BCExpedited parts coverage for 5 yearsParts, electronics and batteries coverageNext business day shippingTechnical support5-year onsite plan: TLWEBN75XX-7000BCOnsite parts and labor coverage for 5 yearsParts, electronics and batteries coverage24x7 onsite labor coverage, next-day responseNext-day shippingTechnical support |
User Manual
FAQ
What is the output voltage of this extended battery module?
This Tripp Lite Extended Battery Module provides a 72 Volt DC output. It is designed to connect directly to the DC bus of compatible Tripp Lite SmartOnline UPS systems to supplement their internal battery capacity and extend overall backup runtime.
Is this battery module hot-swappable?
Yes, the BP72RT is designed as a hot-swappable unit. This means qualified personnel can remove and replace the module while the connected UPS remains operational and continues to provide power to the critical load, eliminating the need for a system shutdown during battery maintenance or replacement.
What type of battery chemistry does it use?
This module utilizes valve-regulated lead-acid (VRLA) battery technology. This chemistry is known for its reliability, sealed construction that prevents electrolyte leakage, and minimal maintenance requirements, making it well-suited for use in IT environments and data centers.
What is the form factor and how do I install it?
The module has a 2U rack-mountable form factor, meaning it occupies two rack units (3.41 inches) of vertical space in a standard 19-inch rack. The package includes the necessary rack-mounting hardware for secure installation. It can also be configured for tower (freestanding) use if not installed in a rack.
Which Tripp Lite UPS models is this EBM compatible with?
This Extended Battery Module is compatible with specific Tripp Lite SmartOnline UPS systems. Key compatible models include the SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U, and SUINT3000LCD2U. Always verify compatibility with your specific UPS model before purchase.
What warranty coverage is provided?
The BP72RT comes with a 2-year limited warranty from the manufacturer. Additionally, Tripp Lite offers optional extended service plans, including a 5-year depot exchange plan and a 5-year onsite service plan, which provide extended coverage for parts, electronics, batteries, and technical support.
