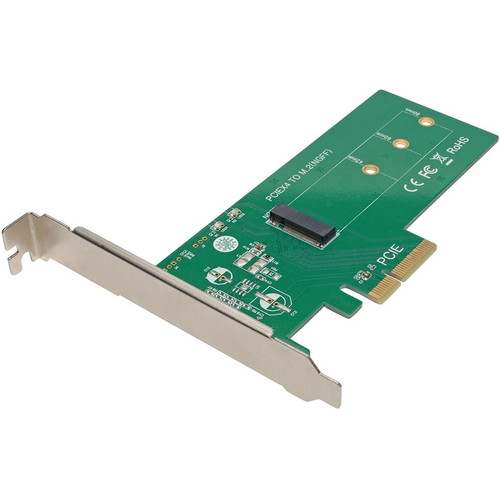

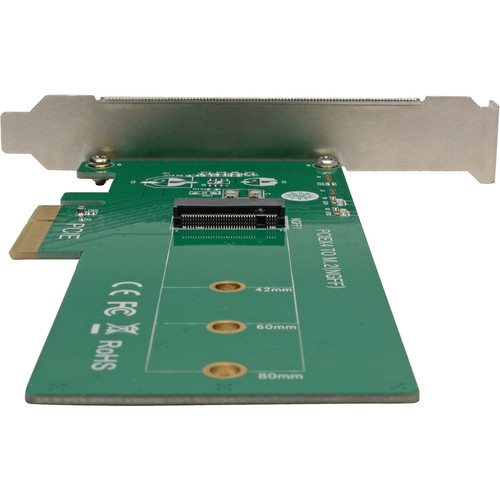

Tripp Lite by Eaton PCE-1M2-PX4 M. 2 NGFF PCIe SSD (M-Key) to PCI Express x4 Adapter Card - Silver
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter card converts the M.2 NGFF PCIe SSD interface to a standard PCI Express x4 slot, allowing direct connection of M.2 SSDs to desktop motherboards. The M-Key design specifically supports PCIe-based SSDs, enabling full utilization of NVMe protocol speeds for reduced latency and improved data transfer rates compared to traditional SATA connections.
The card operates as a passive adapter, meaning it does not require additional power connectors or drivers for basic functionality. It maintains signal integrity through proper PCB routing and connector alignment, ensuring stable performance for your storage device. The silver finish not only provides an aesthetic match for many system builds but also offers a durable surface resistant to minor scratches and wear.
Relevant factors for this section include Color Family, Product Color, Package Contents, Environmentally Friendly. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This adapter enables desktop users to leverage the speed advantages of modern M.2 NVMe SSDs without requiring a motherboard with built-in M.2 slots. By providing a direct PCIe x4 connection, it maintains the full performance potential of PCIe-based SSDs, making it an efficient upgrade path for older systems or workstations needing additional high-speed storage.
Performance Preservation
Maintains the full PCIe bandwidth of your M.2 SSD, ensuring no performance bottleneck compared to native motherboard connections.
- Direct PCIe x4 interface
- Supports NVMe protocol speeds
- No SATA conversion latency
Broad Compatibility
Works with standard M.2 NGFF PCIe SSDs using the M-Key configuration, covering most modern NVMe drives from various manufacturers.
- M-Key design
- PCIe x4 slot compatible
- Standard motherboard mounting
Easy Installation
Includes all necessary mounting hardware for secure SSD installation, with clear documentation to guide setup.
- Includes screws and standoff
- Standard PCI bracket
- Comprehensive manual
Deployment / Use Cases
This adapter card serves multiple practical applications in both professional and enthusiast computing environments. For IT departments managing older workstations, it provides a cost-effective method to add NVMe storage performance without complete system replacement. The adapter enables organizations to extend the useful life of existing hardware while benefiting from modern storage speeds.
Content creators and professionals working with large media files can use this adapter to add high-speed scratch disks or project storage to their editing workstations. Gamers and PC enthusiasts can install additional M.2 SSDs for game libraries or operating systems, taking advantage of faster load times and improved system responsiveness. The adapter also supports testing and development environments where multiple SSD configurations need evaluation across different systems.
What's in the Box
The package includes everything needed for immediate installation and operation of your M.2 SSD in a PCI Express slot.
Highlights
- Converts M.2 NGFF PCIe SSD (M-Key) to PCI Express x4 interface
- Enables NVMe SSD installation in desktop PCs without native M.2 slots
- Silver finish for professional appearance and durability
- Includes all necessary mounting hardware (screws and standoff nut)
- Comprehensive owner's manual for easy installation guidance
- Environmentally compliant with WEEE and RoHS standards
- Backed by 2-year limited warranty from Eaton Corporation
- Passive adapter design requires no additional power connections
- Manufactured by Eaton Corporation, a trusted name in power management
- Country of origin: China
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PCE-1M2-PX4 |
| Brand Name | Tripp Lite series |
| Product Model | PCE-1M2-PX4 |
| Product Name | M.2 NGFF PCIe SSD (M-Key) PCI Express (x4) Card |
| Product Type | M.2 to PCI Express Adapter |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Miscellaneous | |
| Package Contents | M.2 NGFF PCIe SSD (M-Key) PCI Express (x4) Card 2 x Screws SSD Standoff Nut Owner's Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
Does this adapter require additional power connections?
No, this is a passive adapter that does not require separate power connections. It draws power directly from the PCI Express slot, which provides sufficient power for most M.2 SSDs. This simplifies installation compared to some active adapters that need supplemental power cables, making it ideal for clean system builds with limited cable management.
What PCI Express slot is required for this adapter?
The adapter requires a standard PCI Express x4, x8, or x16 slot. It will physically fit in any of these slots and will operate at x4 speeds. While it can be installed in an x16 slot (commonly used for graphics cards), it will only utilize four of the available lanes. The adapter uses a standard PCI bracket that fits most desktop computer cases.
What mounting hardware is included with the adapter?
The package includes two screws and an SSD standoff nut for securing your M.2 SSD to the adapter card. These components ensure proper mounting and prevent movement or vibration that could affect connection stability. The owner's manual provides clear instructions for installation, making the setup process straightforward even for users with limited hardware experience.
What environmental standards does this product meet?
This adapter complies with the Waste Electrical and Electronic Equipment Directive (WEEE) and Restriction of Hazardous Substances (RoHS) standards. These regulations ensure responsible disposal practices and limit the use of specific hazardous materials in manufacturing. The environmentally friendly design reflects Eaton Corporation's commitment to sustainable product development and corporate responsibility.
What warranty coverage does this adapter include?
The adapter comes with a 2-year limited warranty from Eaton Corporation. This warranty covers defects in materials and workmanship under normal use conditions. For warranty service or support, customers should contact Eaton or their authorized reseller with proof of purchase. The warranty provides peace of mind for professional deployments where reliable hardware is essential.
What connectivity or interface options are available?
Connectivity details help confirm how Tripp Lite series M.2 NGFF PCIe SSD (M-Key) PCI Express (x4) Card (PCE-1M2-PX4) can integrate with your network, accessories, and surrounding peripherals before rollout or replacement planning.
