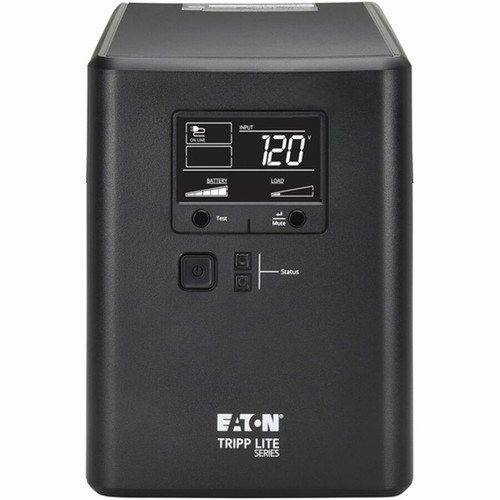

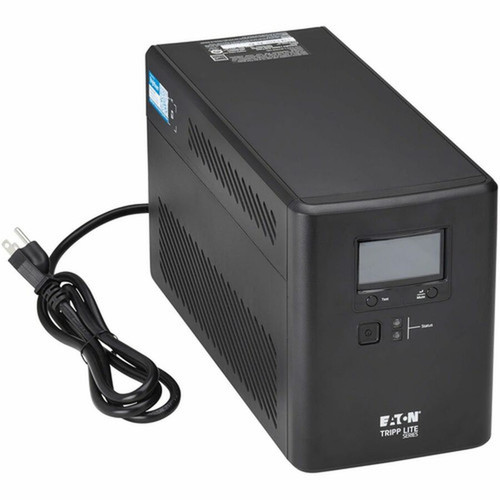

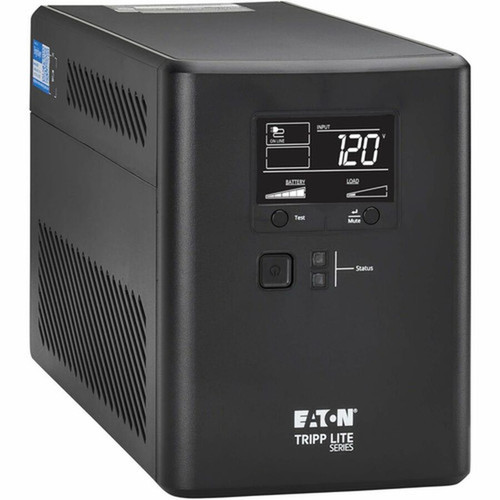

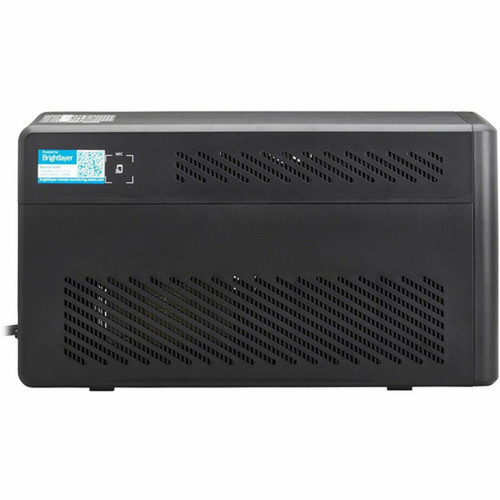

Tripp Lite by Eaton SMART1000LCDTNC 1000VA Compact Tower UPS - 600W - 10 Outlets - LCD Display - 0U Tower - AVR - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton SMART1000LCDTNC is a 1000VA compact tower UPS designed to deliver reliable power protection for critical office and network equipment. This line-interactive UPS features automatic voltage regulation (AVR) to correct minor power fluctuations without switching to battery power, extending battery life and maintaining stable operation during sags and surges.
With a 600W load capacity and 10 NEMA 5-15R outlets (5 battery-backed and 5 surge-only), this unit provides comprehensive connectivity for workstations, monitors, networking gear, and other essential devices. The integrated LCD display offers real-time monitoring of input/output voltage, load percentage, battery status, and estimated runtime, giving users clear visibility into system performance and power conditions.
Relevant product facts for this section include AVR: Yes, Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Load Capacity (VA): 1 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
This line-interactive UPS operates on single-phase 120V AC input with a wide voltage range of 92-145V AC, ensuring compatibility with standard North American power systems. It delivers a pulse-width modulated sine wave output at 50/60 Hz, providing clean power suitable for sensitive electronics. The unit includes essential protection features such as overload protection, circuit breaker, and 380J surge energy rating to safeguard connected equipment from power anomalies.
Energy efficiency exceeds 95%, earning ENERGY STAR certification and GREEN UPS designation. The valve-regulated lead-acid battery system operates at 24V DC and features user-replaceable batteries with an 8-hour typical recharge time. Thermal dissipation is managed at 31.01 BTU/h, supporting reliable operation in environments from 32°F to 104°F. The 4 ms transfer time ensures seamless transition to battery power during outages, minimizing disruption to connected devices.
Relevant product facts for this section include AVR: Yes, Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Load Capacity (VA): 1 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SMART1000LCDTNC combines compact tower design with comprehensive power management features, making it an ideal solution for space-constrained environments. The 0U form factor allows placement on desktops, shelves, or under workstations without requiring rack mounting hardware.
Intelligent Monitoring
The LCD display provides detailed status information including input/output voltage, frequency, AVR status, load in watts and percentage, battery voltage, and estimated runtime. LED indicators supplement the display with visual status for AC power, battery charge state, and fault conditions.
- Real-time load monitoring
- Battery voltage display
- Estimated runtime calculation
Comprehensive Protection
Beyond battery backup, this UPS includes multiple layers of protection including automatic voltage regulation, surge suppression, EMI/RFI noise filtering, and overload protection. The audible alarm alerts users to low battery and fault conditions.
- AVR corrects sags/surges
- Noise filtering for clean power
- Overload protection circuit
Deployment / Use Cases
This compact tower UPS is engineered for small to medium office environments, retail point-of-sale systems, and network infrastructure applications. The 4-minute full-load runtime provides sufficient time for graceful shutdown of connected equipment during extended outages, while the 14.3-minute half-load runtime supports longer operation for essential devices.
The unit's 10-outlet configuration allows protection of multiple devices including computers, monitors, networking equipment, security cameras, audio/video systems, and other critical electronics. USB and network connectivity enable management software integration for automated shutdown sequences and remote monitoring capabilities.
Office Workstation Protection
Ideal for protecting desktop computers, monitors, and peripherals in office environments where power fluctuations could cause data loss or hardware damage.
Network Infrastructure Support
Suitable for routers, switches, and network-attached storage devices that require continuous operation to maintain network connectivity and data accessibility.
Physical Profile
The compact tower design measures 7.87" H × 5.75" W × 14.57" D (200 × 146 × 370 mm) with a weight of 22.92 lb (10.4 kg). The 0U form factor makes this unit suitable for placement on desktops, under monitors, or on shelves without requiring rack space. The 5-foot power cord provides flexible placement options relative to wall outlets.
- Width
- 5.75" (146 mm)
- Depth
- 14.57" (370 mm)
- Height
- 7.87" (200 mm)
- Weight
- 22.92 lb (10396.34 g)
- Length
- 5 ft (1.52 m)
What's in the Box
The package includes the SMART1000LCDTNC 1000VA compact tower UPS unit and a quick start guide to facilitate installation and initial configuration. These components ensure you have everything needed for immediate deployment without requiring additional accessories.
Highlights
- 1000VA/600W load capacity for office and network equipment
- 10 NEMA 5-15R outlets (5 battery-backed, 5 surge-only)
- LCD display with real-time monitoring of voltage, load, and runtime
- Automatic voltage regulation corrects sags and surges
- 4-minute full-load runtime for graceful shutdowns
- Compact 0U tower design for desktop placement
- USB and network connectivity for management software
- User-replaceable valve-regulated lead-acid battery
- ENERGY STAR certified with >95% efficiency
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1000LCDTNC |
| Brand Name | Tripp Lite series |
| Product Model | SMART1000LCDTNC |
| Product Name | SMART1000LCDTNC 1000VA Compact tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Overload Protection | Yes |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Network,Retail,POS,Home,Office,Workstation,Digital Signage,Equipment,Computer,Monitor,Security,Camera,Desk Lamp,Speaker,Desktop,Audio/Video Equipment,Hospital |
| Surge Suppression | Yes |
| Features | Audible Alarm,Cold Start Function,Auto Restart,Self Test |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 92 V AC - 145 V AC |
| Input Current | 10 A |
| Output Voltage | 120 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 380 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.6 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Alarm | Low Battery,Fault |
| Controls/Indicators | |
| Status Indicators | LCD Display: Input Voltage Output Voltage Frequency (Hz) AVR Boost / Cut Status Output Load in Watts Output Load Percentage Battery Voltage Estimated Runtime LEDs Indictors: AC Power Battery Fully Charged Running on AC power Battery Charging Fault |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| DC System Voltage | 24 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 31.01 BTU/h |
| Physical Characteristics | |
| Height | 7.87" (200 mm) |
| Width | 5.75" (146 mm) |
| Depth | 14.57" (370 mm) |
| Rack Height | 0U |
| Form Factor | Compact Tower |
| Weight (Approximate) | 22.92 lb (10396.34 g) |
| Miscellaneous | |
| Package Contents | SMART1000LCDTNC 1000VA Compact tower UPS Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SMART1000LCDTNC provides a power capacity of 1000VA (1 kVA) with a 600W load rating, suitable for protecting office and network equipment like computers, monitors, and networking gear.
What runtime can I expect at full and half loads?
At full load (600W), this UPS offers a 4-minute runtime for graceful shutdowns. At half load (300W), runtime extends to 14.3 minutes, allowing longer operation for essential devices during power outages.
How many outlets does this UPS have, and what types are included?
This unit features 10 NEMA 5-15R outlets: 5 are battery-backed and surge-protected for critical devices, and 5 are surge-only for additional protection, supporting multiple workstations or network setups.
What input and output voltage specifications does it support?
It operates on 120V AC input with a wide range of 92-145V AC, compatible with standard North American power. Output is 120V AC, ensuring stable power delivery for connected equipment.
Is this UPS designed for rack or tower deployment?
This is a compact tower UPS with a 0U form factor, ideal for desktop, shelf, or under-desk placement without rack mounting. Its dimensions are 7.87" H × 5.75" W × 14.57" D for space-efficient setups.
What management and connectivity options are available?
It includes USB and network (RJ-45) ports for integration with management software, enabling remote monitoring, automated shutdowns, and status alerts via the LCD display and audible alarms.
