Tripp Lite by Eaton APSWX3K24VMPPT 3kW Continuous / 6kW Peak Sine Wave Solar Inverter-Charger - 24V DC / 230V AC Input - 230V AC Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

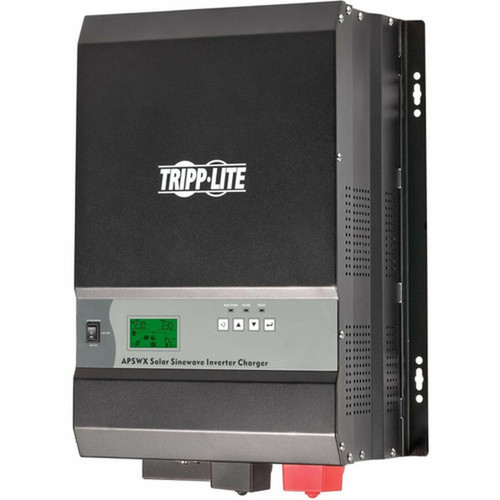

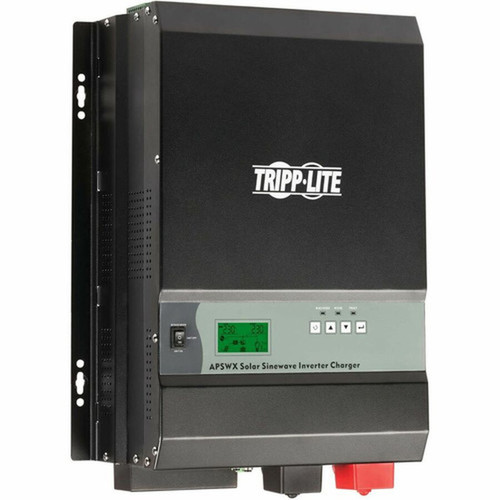

This solar inverter-charger features dual input voltage support, accepting 230V AC from the grid and 24V DC from solar panels or batteries, with a 230V AC output for consistent power delivery. The sine wave technology ensures low harmonic distortion, providing clean electricity that mimics utility-grade power for safe operation of all connected devices. Hardwired plug and receptacle connections enhance durability and reduce maintenance in permanent installations.
With a continuous power load of 3kW and peak capacity of 6kW, it handles sudden surges from motors or compressors without shutdown. The frequency tolerance from 47 to 65 Hz allows operation in regions with varying grid stability, making it suitable for international deployments. Its robust construction includes a metal chassis that dissipates heat efficiently, supporting continuous use in demanding environments.
Key Product Advantages
The APSWX3K24VMPPT offers distinct advantages for solar power systems, starting with its high-efficiency sine wave output that protects sensitive electronics from damage. The dual input capability allows seamless switching between grid and solar sources, optimizing energy use and providing backup during outages. Its 6kW peak power ensures reliable performance under heavy loads, reducing the risk of overload in critical applications.
Clean Power Delivery
Sine wave output eliminates electrical noise, ensuring safe operation for computers, medical devices, and other sensitive equipment without interference or risk of malfunction.
- Low harmonic distortion
- Utility-grade power quality
- Compatible with all AC loads
Robust Build Quality

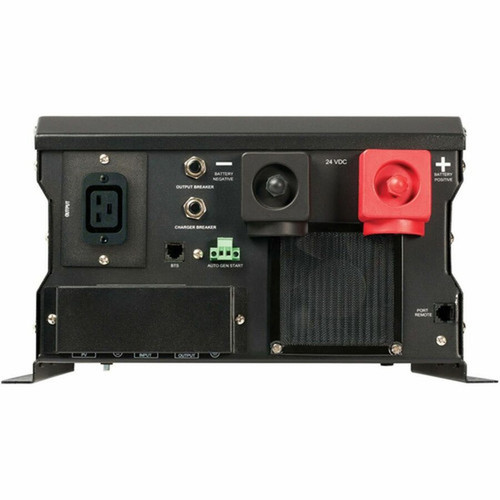

Constructed with a heavy-duty metal enclosure and hardwired terminals, this inverter-charger withstands harsh environments and reduces connection failures over time.
- Durable chassis
- Secure hardwired connections
- Efficient thermal management
Deployment / Use Cases
This inverter-charger is ideal for off-grid solar systems, providing reliable AC power from solar panels and batteries in remote locations like cabins, telecom towers, or agricultural sites. It also serves as a backup power solution for homes and small businesses, automatically switching to solar during grid failures to keep essential systems running.
In commercial settings, it supports renewable energy projects by integrating with solar arrays to reduce grid dependence and lower electricity costs. Applications include powering lighting, refrigeration, office equipment, and industrial tools, with its 3kW continuous capacity suitable for moderate loads. The hardwired design makes it a permanent fixture in electrical panels or dedicated power rooms, ensuring long-term stability.
Residential Solar Backup
Provides uninterrupted power for homes during outages, running refrigerators, lights, and communication devices from solar panels and battery banks.
Commercial Energy Management
Integrates into business solar installations to offset grid usage, powering servers, point-of-sale systems, and other critical equipment with clean energy.
Physical Profile
The inverter-charger measures 20 inches in height, 13.75 inches in width, and 7.24 inches in depth, with a weight of approximately 64.50 pounds. This compact footprint allows installation in standard electrical enclosures or on wall mounts, saving space in utility rooms or outdoor shelters. The sturdy metal construction ensures durability, with ventilation designed for efficient cooling during continuous operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 20" (508 mm), 13.75" (349.25 mm), 7.24" (183.90 mm), 64.50 lb (29256.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 13.75" (349.25 mm)
- Depth
- 7.24" (183.90 mm)
- Height
- 20" (508 mm)
- Weight
- 64.50 lb (29256.71 g)
What's in the Box

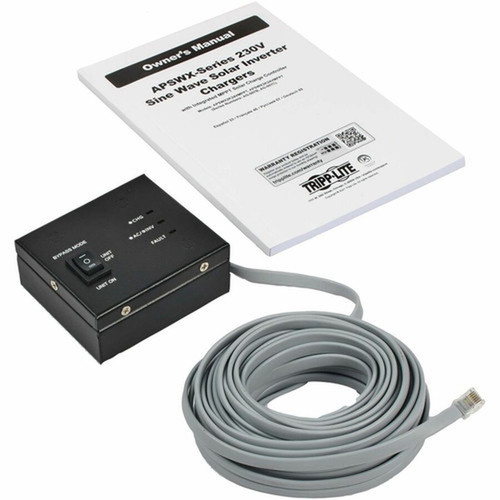

The package includes the APSWX3K24VMPPT sine wave solar inverter-charger, a wired on/off remote for convenient control, and an owner's manual for installation and operation guidance.
Highlights
- 3kW continuous / 6kW peak power capacity for reliable load handling
- Pure sine wave output ensures compatibility with sensitive electronics
- Dual input: 24V DC from solar/batteries and 230V AC from grid
- 230V AC output suitable for international voltage standards
- Hardwired connections for secure, low-maintenance installation
- 47-65 Hz frequency range accommodates varying grid conditions
- Heavy-duty metal construction with efficient thermal design
- Two-year limited warranty for peace of mind
- REACH and RoHS compliance for environmental safety
- Includes wired remote for easy on/off control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | APSWX3K24VMPPT |
| Brand Name | Tripp Lite series |
| Product Model | APSWX3K24VMPPT |
| Product Name | APSWX3K24VMPPT Sine Wave Solar Inverter/Charger |
| Product Type | Solar Inverter |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacles | Hardwired |
| Power Description | |
| Input Voltage | 230 V AC,24 V DC |
| Output Voltage | 230 V AC |
| Minimum Frequency | 47 Hz |
| Maximum Frequency | 65 Hz |
| Peak Power Load | 6 kW |
| Continuous Power Load | 3 kW |
| Waveform Type | Sine Wave |
| Physical Characteristics | |
| Height | 20" (508 mm) |
| Width | 13.75" (349.25 mm) |
| Depth | 7.24" (183.90 mm) |
| Weight (Approximate) | 64.50 lb (29256.71 g) |
| Miscellaneous | |
| Package Contents | APSWX3K24VMPPT Sine Wave Solar Inverter/Charger Wired On/Off Remote Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the continuous power rating of this solar inverter-charger?
The Tripp Lite by Eaton APSWX3K24VMPPT has a continuous power load of 3 kilowatts (3000 watts), meaning it can steadily deliver this amount of power to connected devices under normal operating conditions. This rating makes it suitable for powering essential home or business equipment like refrigerators, lights, and computers without overloading.
Can this inverter-charger handle peak power surges?
Yes, it supports a peak power load of 6 kilowatts (6000 watts), allowing it to manage short-term surges from devices like motors, pumps, or compressors that require higher startup power. This capability prevents shutdowns during sudden load increases, ensuring reliable performance in dynamic environments.
What input voltages does this unit accept?
This inverter-charger accepts dual input voltages: 24 volts DC from solar panels or battery banks, and 230 volts AC from the grid. This flexibility enables seamless integration into hybrid systems that use both solar and grid power, providing backup during outages and optimizing energy sources.
Is the output suitable for sensitive electronics?
Absolutely. The sine wave output produces clean, stable electricity with low harmonic distortion, mimicking utility-grade power. This makes it safe for sensitive electronics such as computers, medical devices, and audio equipment, preventing damage or performance issues common with modified sine wave inverters.
How is this inverter-charger installed?
Installation involves hardwired connections for both input and output, requiring professional electrical setup to ensure safety and compliance. The unit is designed for permanent mounting in electrical panels or on walls, with its compact dimensions fitting standard enclosures. The included wired remote allows convenient on/off control from a distance.
What warranty and environmental standards does it meet?
This product comes with a two-year limited warranty, covering defects in materials and workmanship. It also complies with REACH and RoHS environmental regulations, restricting hazardous substances and promoting safer manufacturing practices, which aligns with eco-friendly deployment in residential and commercial settings.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 230 V AC,24 V DC, which helps position the unit for the right load level and installation role.
