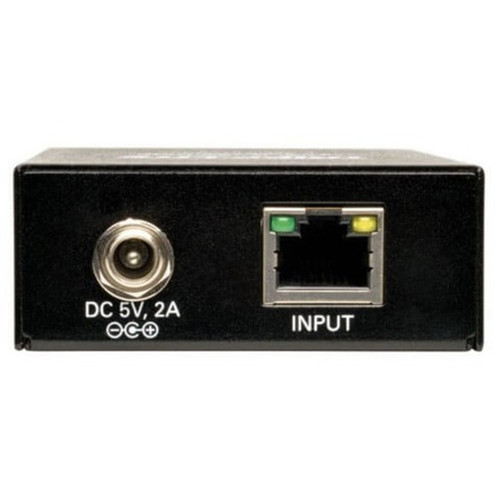

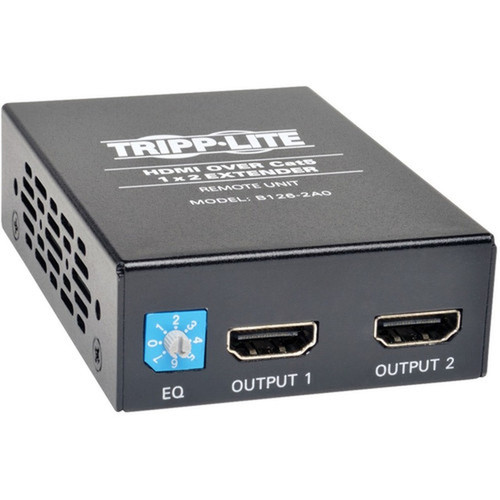

Tripp Lite series B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver - 2 Output Device - 200 ft (60960 mm) Range - 1 x Network - 2 x (B126-2A0)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- HDMI Over Cat5 Active Extender 2-Port Remote Unit
- Screwdriver For Adjustment Of Equalization
- Mounting Hardware
- External Power Supply (Input: 100-240V)
Connectivity Technology: Wired
Number of Output Devices Supported: 2
Maximum Operating Distance: 200 ft (60960 mm)
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Color Family: Black
Product Color: Black
Receiver Height: 1" (25.40 mm)
Receiver Width: 2.50" (63.50 mm)
Receiver Depth: 3.60" (91.44 mm)
Form Factor: Rack-mountable,Wall Mountable,Pole-mountable
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play-no software or drivers to install
- Built-in equalization control lets you adjust monitor image
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B126-2A0 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B126-2A0 |
| Product Name | B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Receiver Height | 1" (25.40 mm) |
| Receiver Width | 2.50" (63.50 mm) |
| Receiver Depth | 3.60" (91.44 mm) |
| Form Factor | Rack-mountable,Wall Mountable,Pole-mountable |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
