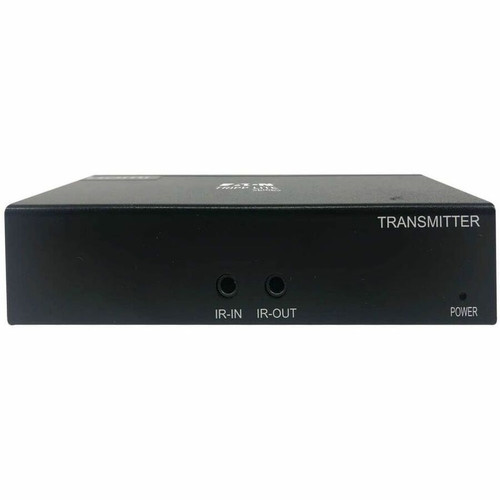

Tripp Lite series B127A-1A1-BHPH Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 230 ft (70104 mm) Range - 2 (B127A-1A1-BHPH)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 x Transmitter
- 1 x Receiver
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
- 4 x International plug adapters (North America, Europe, U.K. and Australia)
- Mounting hardware
- Owner's Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft (70104 mm)
Graphics Modes: 4K UHD
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Transmitter Height: 2.70" (68.58 mm)
Transmitter Width: 11.50" (292.10 mm)
Transmitter Depth: 6.24" (158.50 mm)
Receiver Height: 1.86" (47.24 mm)
Receiver Width: 4.70" (119.38 mm)
Receiver Depth: 7.50" (190.50 mm)
Form Factor: Wall Mountable,Rack-mountable
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 1 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127A-1A1-BHPH |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B127A-1A1-BHPH |
| Product Name | B127A-1A1-BHPH Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 230 ft (70104 mm) |
| Video | |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 2.70" (68.58 mm) |
| Transmitter Width | 11.50" (292.10 mm) |
| Transmitter Depth | 6.24" (158.50 mm) |
| Receiver Height | 1.86" (47.24 mm) |
| Receiver Width | 4.70" (119.38 mm) |
| Receiver Depth | 7.50" (190.50 mm) |
| Form Factor | Wall Mountable,Rack-mountable |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
