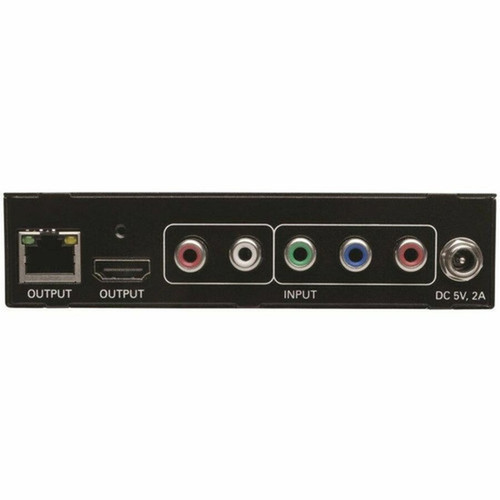

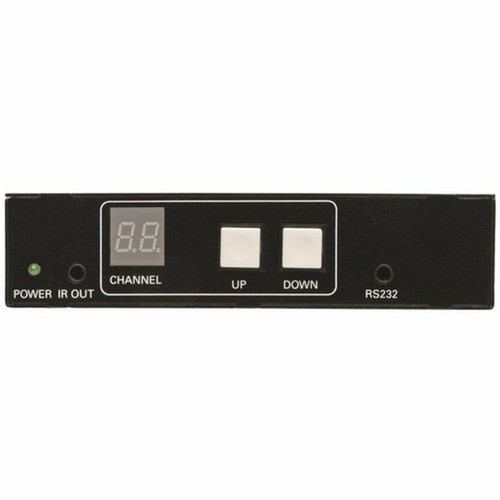

Tripp Lite series B160-001-CSI Video Extender Transmitter - 1 Output Device - 328.08 ft (100000 mm) Range - 1 x Network (RJ-45) - 1 x (B160-001-CSI)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features

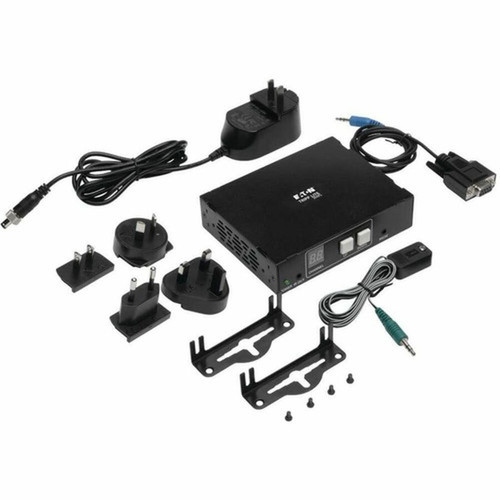

- B160-001-CSI Video Extender Transmitter
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 2A)
- Plug Adapters for North America, U.K., Europe and Australia
- IR-Out Cable
- 3.5 mm to DB9 Adapter Cable (M/F)
- Mounting Hardware
- Owner's Manual
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Color Family: Black
Product Color: Black
Transmitter Height: 1.17" (29.70 mm)
Transmitter Width: 5.04" (128 mm)
Transmitter Depth: 3.94" (100 mm)
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 1.59 lb (720 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Converts audio and video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away
- Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch
- HDMI output for connecting a local display
- Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
- IGMP-enabled switches allow centralized control over which sources show on which displays
- Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors
- Supports video resolutions up to 1080i
- Uses H.264 video compression standard
- Transmits on 20-60 kHz IR frequency
- Sends IR control signals that control a source from a remote display
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B160-001-CSI |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B160-001-CSI |
| Product Name | B160-001-CSI Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.17" (29.70 mm) |
| Transmitter Width | 5.04" (128 mm) |
| Transmitter Depth | 3.94" (100 mm) |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 1.59 lb (720 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite series Receiver Unit - 1 Output Device - 328.08 ft (100000 mm) Range - 1 x Network (RJ-45) - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 - Rack-mountable |
| SKU | B160-100-CSI |
| Sale Price | $174.95 |
[/custom-options]
