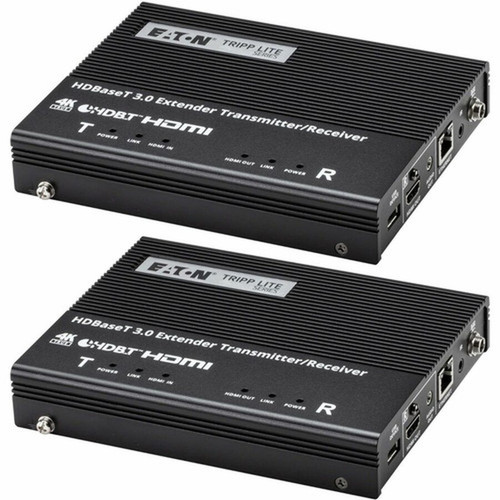

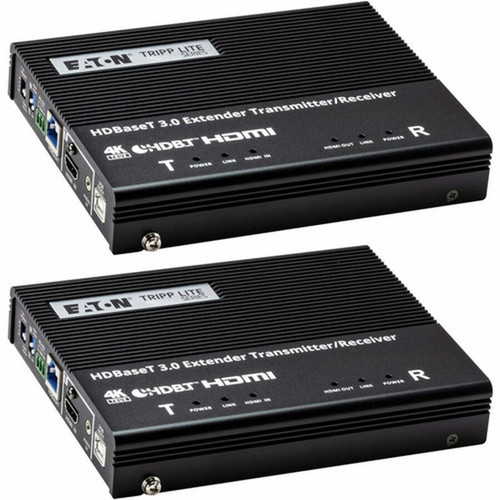

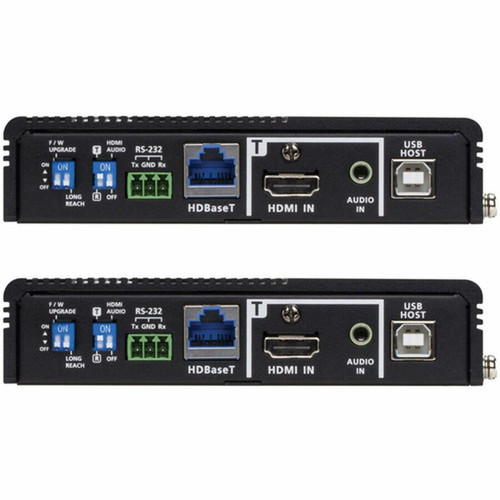

Tripp Lite series BHDBT3-TRX2 Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 328.08 ft (100000 mm) Range - 4 (BHDBT3-TRX2)

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 1

Maximum Operating Distance: 328.08 ft (100000 mm)

HDBase-T: Yes

Graphics Modes: 4K

Maximum Video Resolution: 4096 x 2160

Network (RJ-45): Yes

HDMI In: Yes

HDMI Out: Yes

USB: Yes

Number of Network (RJ-45) Ports: 4

Number of USB Ports: 4

Number of HDMI Inputs: 2

Number of HDMI Outputs: 2

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6a

Color Family: Black

Product Color: Black

Transmitter Height: 1.20" (30.48 mm)

Transmitter Width: 5" (127 mm)

Transmitter Depth: 4" (101.60 mm)

Receiver Height: 1.20" (30.48 mm)

Receiver Width: 5" (127 mm)

Receiver Depth: 4" (101.60 mm)

Form Factor: Wall Mountable

Package Contents:

• HDBaseT 3.0 Transmitter
• HDBaseT 3.0 Receiver
• 2 x RS-232 terminal blocks
• 4 x Wall-mount brackets
• 8 x Foot pads
• 2 x USB-B to USB-A cables
• 2 x Power adapters
• 2 x C13 to NEMA 5-15P power cords
• 2 x C13 to BS1363 power cords
• 2 x C13 to Schuko power cords
• 2 x IR emitters
• 2 x IR receivers
• Owner's manual
• Quick Start Guide

Application/Usage: Lecture Hall,Exhibition,Auditorium,Museum

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 1 Year
