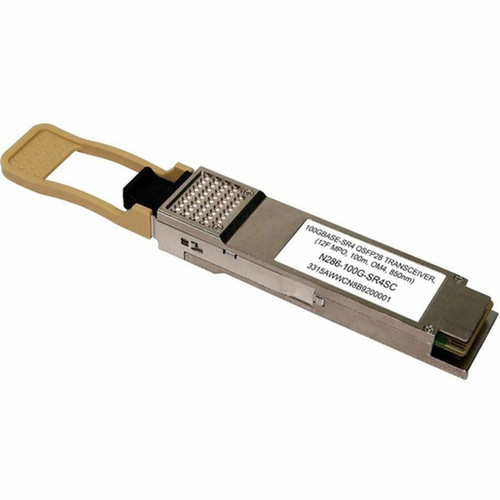

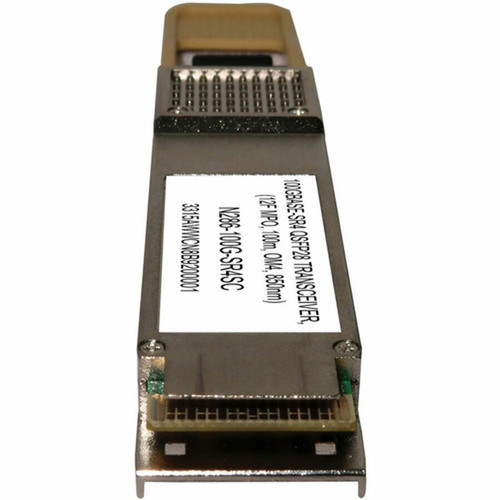

Tripp Lite by Eaton N286-100G-SR4SC QSFP28 Module - 100GbE SR4 MPO/MTP Multimode 0. 10 km Hot-swappable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This QSFP28 module operates on the 100GBase-SR standard, providing full-duplex 100 Gbps data transfer rates over optical fiber. The module supports multimode fiber media, which is ideal for high-bandwidth applications within data centers and enterprise networks where shorter distances are required.
The hot-swappable design allows for installation and replacement without powering down the host device, minimizing network downtime. The module is compliant with Multi-Source Agreement (MSA) specifications, ensuring interoperability with a wide range of networking hardware from various manufacturers.
This section brings together practical product details such as Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The N286-100G-SR4SC module offers several advantages for network architects and IT professionals deploying high-speed infrastructure. Its 100GbE capability future-proofs network backbones, while the multimode fiber support balances performance with deployment economics.
High-Density Connectivity
The QSFP28 form factor enables high port density in switches and routers, maximizing rack space efficiency in data center environments.
- Compact design
- Supports 100G aggregation
- Ideal for spine-leaf architectures
Operational Reliability
Built with quality components and compliant with industry standards, this module delivers consistent performance in demanding network environments.
- 3-year limited warranty
- RoHS compliant
- MSA interoperability
Deployment / Use Cases
This optical transceiver is designed for specific networking scenarios where 100 Gigabit Ethernet connectivity is required over short to medium distances. Its 0.10 km reach makes it suitable for intra-data center connections, server-to-switch links, and network aggregation points.
The module excels in data center environments where high bandwidth is needed for server clusters, storage networks, and backbone connections. It's also effective in enterprise campus networks for connecting distribution switches to core routers, or in high-performance computing environments where low-latency, high-throughput connections are essential.
Data Center Interconnect
Connect top-of-rack switches to spine switches within the same data center rack or across adjacent racks using multimode fiber infrastructure.
Server Networking
Provide high-bandwidth connectivity for servers with 100GbE network interfaces, supporting data-intensive applications and virtualization workloads.

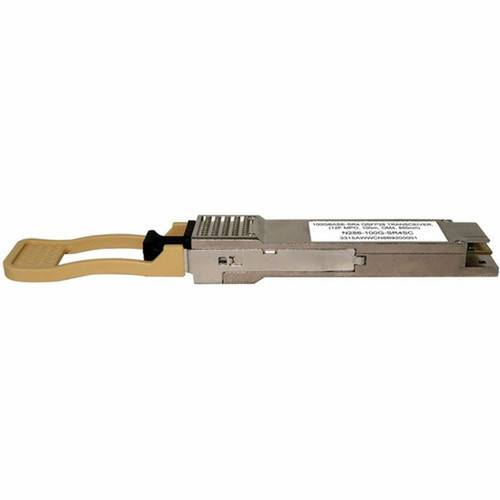

Physical Profile
The module features a compact physical design with dimensions of 0.70" (17.78 mm) in height, 3.10" (78.74 mm) in width, and 5.70" (144.78 mm) in depth. Weighing approximately 1.76 oz (50 g), its lightweight construction minimizes stress on host device connectors while maintaining structural integrity. The standard QSFP28 form factor ensures proper fit in compatible cages and connectors across various networking equipment.
- Width
- 3.10" (78.74 mm)
- Depth
- 5.70" (144.78 mm)
- Height
- 0.70" (17.78 mm)
- Weight
- 1.76 oz (50 g)
Highlights
- 100 Gigabit Ethernet QSFP28 optical transceiver module
- 100GBase-SR technology for 100 Gbps data transfer rates
- MPO/MTP connector for multimode fiber connections
- 0.10 km (0.06 mile) maximum reach over multimode fiber
- Hot-swappable design for easy installation and maintenance
- MSA compliant for broad hardware compatibility
- RoHS compliant for environmental responsibility
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N286-100G-SR4SC |
| Brand Name | Tripp Lite series |
| Product Model | N286-100G-SR4SC |
| Product Name | Cisco N286-100G-SR4SC QSFP28 Module |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking,Server,Switching Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO/MTP |
| Interfaces/Ports Details | 1 x 100GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-SR |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.70" (17.78 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 5.70" (144.78 mm) |
| Weight (Approximate) | 1.76 oz (50 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ

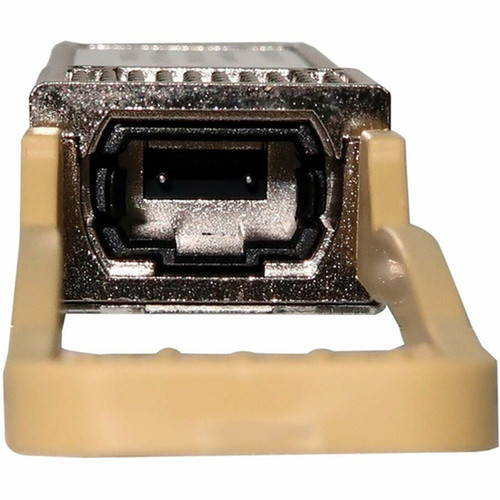

What type of connector does this QSFP28 module use?
This module uses an MPO/MTP connector interface, which is standard for 100GBase-SR applications over multimode fiber. The MPO/MTP connector supports multiple fiber strands in a single interface, enabling the parallel optics required for 100 Gbps transmission. This connector type provides reliable optical connections in high-density networking environments.
What is the maximum distance supported by this optical transceiver?
The N286-100G-SR4SC supports a maximum distance of 0.10 km (approximately 0.06 miles) over multimode fiber. This reach is typical for 100GBase-SR applications using multimode media and is suitable for data center interconnects, server-to-switch connections, and other short to medium distance networking scenarios within the same facility or between adjacent buildings.
Is this module hot-swappable?
Yes, this QSFP28 module features a hot-swappable design that allows for installation or replacement without powering down the host networking equipment. This capability minimizes network downtime during maintenance, upgrades, or module replacements, which is particularly valuable in always-on data center and enterprise environments where continuous operation is critical.
What does MSA compliance mean for this transceiver?
MSA compliance indicates that this module meets the Multi-Source Agreement specifications established by industry manufacturers. This ensures mechanical, electrical, and optical interoperability with networking equipment from various vendors that support the QSFP28 form factor and 100GBase-SR standard. MSA compliance provides assurance of broad compatibility across different hardware platforms.
What type of fiber is compatible with this module?
This module is compatible with multimode optical fiber, which supports multiple light paths through a larger core diameter. Multimode fiber is commonly used for shorter distance, high-bandwidth applications like data center interconnects. The module specifically supports the 100GBase-SR standard over multimode media, making it suitable for OM3 or OM4 fiber installations.
What applications is this optical transceiver designed for?
This QSFP28 module is designed for optical network, data networking, server, and switching network applications. It's particularly effective for 100 Gigabit Ethernet connections in data centers for spine-leaf architectures, server aggregation, storage networking, and network backbone links. The 100GBase-SR technology makes it suitable for high-bandwidth scenarios requiring reliable, low-latency connectivity over multimode fiber.
