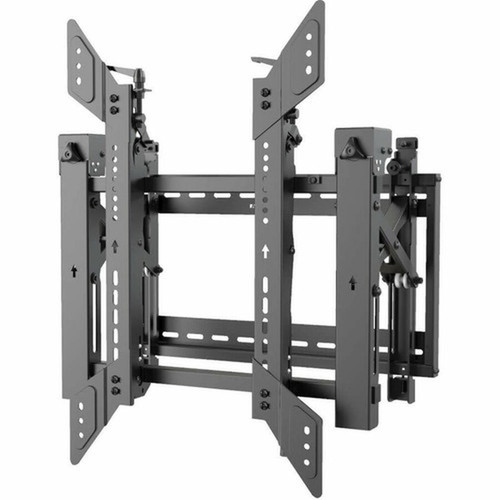

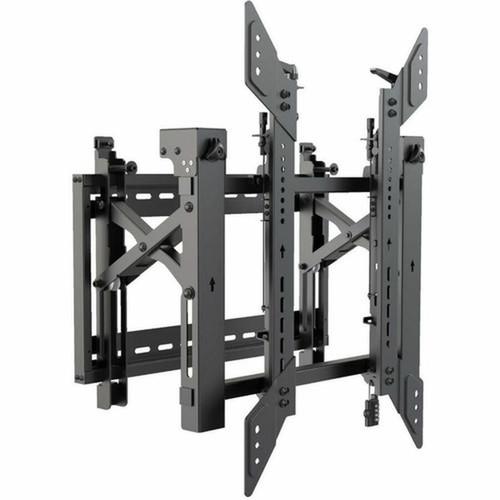

Tripp Lite by Eaton DWMSCP4570VW Pop-Out Security TV Wall Mount - Full Motion - 45-70" Screen - 154 lb Capacity - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount is built around a solid steel construction that meets rigorous durability standards, including tamper and scratch resistance. The full-motion articulation allows for tilt, swivel, and extension, enabling optimal viewing angles and easy access to ports. The height-adjustable design accommodates precise positioning, with a mounting footprint that supports screens from 45 inches to 70 inches diagonally.
The mechanical design includes an anti-skid surface to prevent display slippage and a heavy-duty mechanism that ensures smooth, reliable movement even under maximum load. Compliance with environmental standards such as RoHS 3 and REACH confirms its manufacture with restricted hazardous substances, aligning with eco-friendly procurement policies.
Key Product Advantages
The DWMSCP4570VW distinguishes itself with a focus on security and user-friendly installation, making it ideal for settings where equipment protection and ease of setup are priorities. The combination lock and anti-theft features deter unauthorized removal, while the tool-less micro-adjustment simplifies the mounting process, reducing installation time and complexity.
Enhanced Security
A 4-position combination lock and built-in security mechanisms provide reliable protection against theft, crucial for public spaces like classrooms, conference rooms, and retail environments.
- 4-position combination lock
- Anti-theft design
- Tamper-resistant construction
Simplified Installation
Tool-less micro-adjustment allows for fine-tuning of the display position without additional tools, and the included mounting hardware supports a straightforward wall attachment process.
- Tool-less adjustment
- Complete hardware kit
- Clear manual guidance
Cable Management
Integrated channels and clips organize power and signal cables, maintaining a clean, professional appearance and reducing clutter and tripping hazards.
- Built-in cable channels
- Concealed routing
- Reduced clutter
Deployment / Use Cases
This wall mount is suited for a variety of commercial and institutional applications where displays need to be securely mounted with flexible viewing options. Its robust construction and security features make it a reliable choice for high-traffic or public-access areas.
In educational settings, it securely holds interactive whiteboards or monitors in classrooms, allowing for adjustable heights to accommodate different users. For corporate environments, it enables optimal positioning of displays in conference rooms or digital signage in lobbies, with full-motion capability for shared viewing. In healthcare or retail, the anti-theft design protects equipment in patient rooms or point-of-sale displays, while the cable management ensures a tidy installation that meets safety standards.
Classroom & Training Rooms
Securely mounts interactive displays or TVs for dynamic teaching, with height adjustment for ergonomic use by instructors and students.
Corporate & Conference Spaces
Provides flexible viewing angles for presentations and video conferencing, with a professional look that enhances meeting environments.
Physical Profile
The mount features a sleek black finish that blends discreetly with most interiors. Its dimensions—26.97 inches in height, 22.83 inches in width, and 12.40 inches in depth—define a compact footprint that minimizes wall space usage while providing sturdy support. The 31-pound weight reflects its heavy-duty steel build, ensuring stability without excessive bulk. The design includes a kickstand for added support during adjustment, and the anti-skid pads prevent marring on walls or displays.
- Width
- 22.83" (579.88 mm)
- Depth
- 12.40" (314.96 mm)
- Height
- Yes
- Weight
- 31 lb (14061.36 g)
What's in the Box
The package includes all necessary components for a complete installation.
Highlights
- Supports TVs, monitors, interactive displays, whiteboards, and flat panels up to 70"
- Heavy-duty steel construction with a 154 lb maximum load capacity
- Full-motion design allows tilt, swivel, and extension for optimal viewing
- Includes a 4-position combination lock and anti-theft features for security
- Tool-less micro-adjustment simplifies installation and alignment
- Integrated cable management keeps wires organized and out of sight
- VESA compatible with patterns from 200x200mm to 400x600mm
- Height adjustable to accommodate precise screen positioning
- Black finish with tamper-resistant and scratch-resistant durability
- Backed by a 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DWMSCP4570VW |
| Brand Name | Tripp Lite series |
| Product Model | DWMSCP4570VW |
| Product Name | DWMSCP4570VW Pop-Out Security TV Wall Mount |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | TV,Monitor,Interactive Display,Whiteboard,Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 154 lb (69853.22 g) |
| Minimum Screen Size Supported | 45" |
| Maximum Screen Size Supported | 70" |
| Height Adjustable | Yes |
| Features | Combination Lock,Full Motion,Security Lock,Kickstand,Anti-theft,Tool-less Micro-Adjustment,Cable Management,Heavy Duty,Durable,Anti-skid |
| Durability | Tamper Resistant,Scratch Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200,200 x 400,300 x 300,400 x 400,400 x 600 |
| Height | 26.97" (685.04 mm) |
| Width | 22.83" (579.88 mm) |
| Depth | 12.40" (314.96 mm) |
| Weight (Approximate) | 31 lb (14061.36 g) |
| Miscellaneous | |
| Package Contents | DWMSCP4570VW Pop-Out Security TV Wall Mount 4-position Combination Lock Mounting Hardware Owner's Manual |
| Application/Usage | Wall |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of displays are compatible with this wall mount?
The DWMSCP4570VW is compatible with a wide range of flat-panel displays, including TVs, computer monitors, interactive displays, whiteboards, and digital signage. It supports screen sizes from 45 inches to 70 inches diagonally, making it suitable for most commercial and institutional display applications.
How much weight can this wall mount support?
This mount has a maximum load capacity of 154 pounds (approximately 69.85 kilograms). Its heavy-duty steel construction ensures it can securely hold larger displays, such as interactive whiteboards or large-format TVs, without compromising stability or safety.
Does this mount offer full-motion adjustment?
Yes, it features full-motion articulation, allowing for tilt, swivel, and extension movements. This enables flexible positioning to achieve optimal viewing angles, reduce glare, and provide easy access to ports on the display, enhancing usability in dynamic environments like classrooms or conference rooms.
What security features are included?
Security features include a 4-position combination lock and anti-theft mechanisms designed to deter unauthorized removal. The mount is also tamper-resistant and constructed from durable steel, providing added protection for valuable equipment in public or high-traffic areas.
Is this mount VESA compatible, and what patterns does it support?
Yes, it is VESA compatible and supports multiple mounting patterns: 200 x 200mm, 200 x 400mm, 300 x 300mm, 400 x 400mm, and 400 x 600mm. This broad compatibility ensures it can be used with a wide variety of modern displays that adhere to VESA standards.
What is included in the package, and is installation straightforward?
The package includes the DWMSCP4570VW Pop-Out Security TV Wall Mount, a 4-position combination lock, all necessary mounting hardware, and an owner's manual. Installation is simplified with tool-less micro-adjustment features, allowing for precise alignment without additional tools, and the manual provides clear guidance for secure wall attachment.
