Tripp Lite by Eaton ECO900UPSM 900VA Ultra-compact Desktop/Tower/Wall Mount UPS - 480W - 12 Outlets - Pure Sine Wave - 8 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a single-phase 120V AC input, delivering output voltages adjustable between 110V, 115V, and 120V AC at 60Hz. The 6ms transfer time ensures seamless switching to battery power during outages, while the 316-joule surge energy rating and RJ-11 dataline protection safeguard connected equipment from voltage spikes and line noise.
The valve-regulated lead-acid battery system operates at 12V DC and is user-replaceable, extending the unit's service life. Status indicators provide clear visual feedback on power status, overload conditions, battery health, and Eco-Mode operation.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ECO900UPSM combines compact design with comprehensive protection features, making it an efficient choice for space-constrained installations. Its ultra-compact form factor allows placement under desks, on shelves, or mounted to walls without consuming excessive floor space.
Intelligent Power Management
USB connectivity with HID compliance enables communication with PowerAlert software for automated shutdowns, runtime monitoring, and configuration management, enhancing system reliability.
- USB (HID Compliant) Port
- PowerAlert Software Included
- Eco-Mode for Energy Savings
Enhanced Safety Features
Built-in circuit breaker and overload protection prevent damage from excessive current draw, while audible alarms alert users to battery faults, low battery conditions, and overload situations.
- Circuit Breaker
- Overload Protection
- Battery Fault Alarm
Deployment / Use Cases
This UPS is engineered for environments where reliable power backup is essential for operational continuity. Its compact design and versatile mounting options make it suitable for installations where space optimization is a priority.
In retail settings, it protects point-of-sale systems and digital signage from power interruptions that could disrupt transactions. Hospital applications benefit from its ability to maintain power to monitoring equipment and peripheral devices during brief outages. For computer peripheral protection, it ensures workstations and network equipment have time for proper shutdown procedures.
Small Office & Home Office
Provides sufficient runtime for saving documents and safely shutting down computers, routers, and modems during power failures.
Digital Signage & Kiosks
Maintains display operation through brief power disturbances, preventing content interruption and system reboots.
Physical Profile
Measuring 3.35" (85 mm) in height, 5.12" (130 mm) in width, and 12.20" (310 mm) in depth, the ECO900UPSM occupies minimal space while delivering substantial power protection. The 6.82 lb (3093.50 g) weight facilitates easy installation in various orientations, supported by its ultra-compact desktop, tower, or wall-mount form factor.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.35" (85 mm), 5.12" (130 mm), 12.20" (310 mm), 6.82 lb (3093.50 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.12" (130 mm)
- Depth
- 12.20" (310 mm)
- Height
- 3.35" (85 mm)
- Weight
- 6.82 lb (3093.50 g)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 900VA/480W power capacity for reliable backup of critical equipment

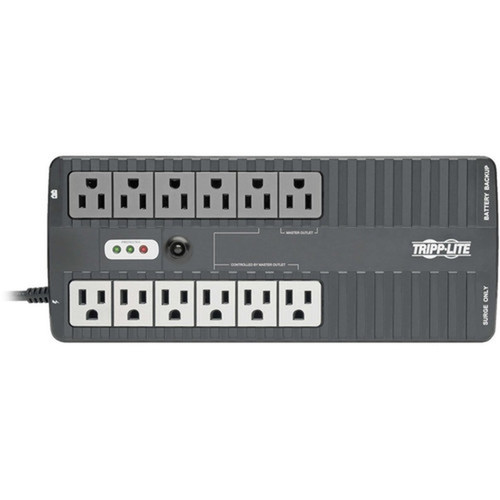

- 12 NEMA 5-15R outlets with six battery backup plus surge and six surge-only
- Pure sine wave output ensures compatibility with sensitive electronics
- Ultra-compact design supports desktop, tower, or wall-mount installation
- 8-hour typical battery recharge time minimizes downtime
- USB connectivity with PowerAlert software for automated management
- ENERGY STAR certified for reduced energy consumption and costs
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for long-term reliability assurance
- User-replaceable valve-regulated lead-acid battery system
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ECO900UPSM |
| Brand Name | Tripp Lite series |
| Product Series | ECO |
| Product Model | ECO900UPSM |
| Product Name | ECO900UPSM 900VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Overload Protection | Yes |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Retail,Hospital,Computer Peripheral |
| Power Description | |
| Load Capacity (VA) | 900 VA |
| Load Capacity (Watt) | 480 W |
| Input Voltage | 120 V AC |
| Input Current | 10 A |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| Circuit Breaker | Yes |
| Management | |
| Alarm | Battery Fault,Overload,Low Battery |
| Controls/Indicators | |
| Status Indicators | Power Status Overload/Check Battery Eco-Mode Status |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Backup/Run Time (Half Load) | 7.80 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Storage Elevation | 6561 ft (1999792.80 mm) |
| Storage Temperature | 5°F (-15°C) - 133°F (56.1°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.35" (85 mm) |
| Width | 5.12" (130 mm) |
| Depth | 12.20" (310 mm) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 6.82 lb (3093.50 g) |
| Miscellaneous | |
| Package Contents | ECO900UPSM 900VA Ultra-compact Desktop/Tower/Wall Mount UPS USB Cable Owner's Manual |
| Software Included | PowerAlert Software |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the ECO900UPSM UPS?
The ECO900UPSM provides 900VA (volt-ampere) and 480W (watt) power capacity. This rating determines how much equipment it can support during a power outage, making it suitable for computers, monitors, networking gear, and other essential electronics in small office or retail environments.
How many outlets does this UPS have and what types are they?
This unit features 12 NEMA 5-15R outlets total. Six outlets provide both battery backup and surge protection, while the remaining six offer surge-only protection. This configuration allows you to prioritize critical devices for battery backup while still protecting additional equipment from power surges.
What is the runtime at full load versus half load?
At full 480W load, the ECO900UPSM provides approximately 1.70 minutes of runtime. At half load (240W), runtime extends to about 7.80 minutes. These times allow for safe system shutdowns and brief power interruption bridging in most scenarios.
Does this UPS produce pure sine wave output?
Yes, the ECO900UPSM delivers pure sine wave output. This clean power waveform is essential for sensitive electronics like servers, medical equipment, and advanced power supplies that may malfunction or sustain damage from simulated sine wave or stepped approximations.
What management features are included with this UPS?
The unit includes USB connectivity with HID compliance for communication with PowerAlert software, enabling automated shutdowns, runtime monitoring, and configuration management. Status indicators display power status, overload conditions, battery health, and Eco-Mode operation for at-a-glance monitoring.
What installation options does the ultra-compact design support?
The ECO900UPSM supports three installation configurations: desktop placement, tower orientation, or wall mounting. Its compact dimensions (3.35"H × 5.12"W × 12.20"D) and 6.82 lb weight make it versatile for space-constrained environments where traditional UPS units might not fit.
What power capacity is listed for this UPS?
The listed power specification is 900 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
