Tripp Lite by Eaton PDUMH20HVAT Metered 10-Outlet PDU - 2xC19 & 8xC13 Outlets - 230V AC - 1U Rack Mount - Auto Transfer Switch
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU features separate primary and secondary inputs with IEC C20 connectors, enabling connection to two compatible power sources for automatic failover. The auto transfer switch functionality provides redundant power options for single-corded network devices, ensuring continuous operation during primary power source interruptions.
The unit supports input voltages from 200V to 240V AC and delivers stable output across five voltage settings. With 2 IEC C19 and 8 IEC C13 outlets, it accommodates a mix of high-power and standard equipment connections in a single compact unit.
This section brings together practical product details such as Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDUMH20HVAT delivers critical power management capabilities for modern IT environments. Its combination of metered monitoring, redundant power inputs, and flexible outlet configuration makes it an essential component for maintaining uptime and optimizing power infrastructure.
Redundant Power Protection
Dual input connections with automatic transfer switching provide backup power paths for connected equipment, minimizing downtime during power source failures.
- Separate primary & secondary inputs
- Automatic failover between sources
- Supports single-corded devices
Precise Power Monitoring
The integrated two-digit current meter enables accurate load measurement, helping administrators balance circuits and prevent overload conditions.
- Visual current display
- Real-time load monitoring
- Prevent circuit overloads
Flexible Deployment
With Federal Trade Agreements Act compliance and RoHS environmental certification, this PDU meets government procurement requirements and environmental standards.
- TAA Compliant for GSA purchases
- RoHS certified
- Upgrade options available
Deployment / Use Cases
This metered PDU is ideal for data centers, server rooms, and network closets where reliable power distribution and monitoring are essential. The 1U rack-mount design maximizes space efficiency in standard 19-inch racks while providing comprehensive outlet coverage for mixed equipment environments.
The auto transfer switch capability makes it particularly valuable for critical infrastructure where uptime is paramount. IT administrators can deploy this unit to provide redundant power to servers, switches, storage arrays, and other network equipment that lack dual power supplies.
This section brings together practical product details such as Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Distribution
Distribute and monitor power to multiple rack-mounted devices while maintaining redundancy through dual input connections.
Server Room Redundancy
Provide automatic failover protection for single-corded equipment that requires continuous operation during power source transitions.
Physical Profile

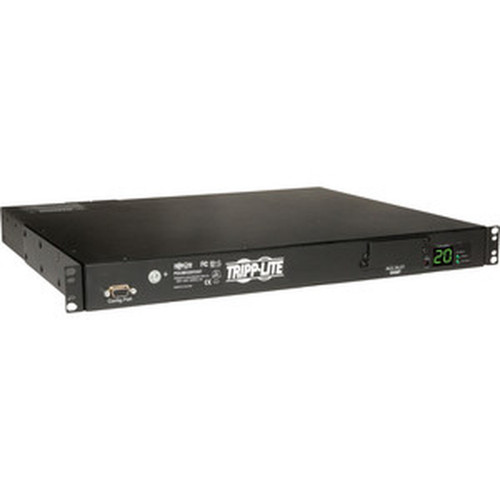

The PDUMH20HVAT features a compact 1U rack-mount design with dimensions of 1.72" height, 17.30" width, and 14" depth. The black finish matches standard rack equipment aesthetics, while the 10.30 lb weight ensures stable mounting without excessive rack loading. The horizontal orientation and standard mounting hardware facilitate straightforward installation in any compatible rack enclosure.
- Width
- 17.30" (439.42 mm)
- Depth
- 14" (355.60 mm)
- Height
- 1U
- Weight
- 10.30 lb (4672 g)
What's in the Box

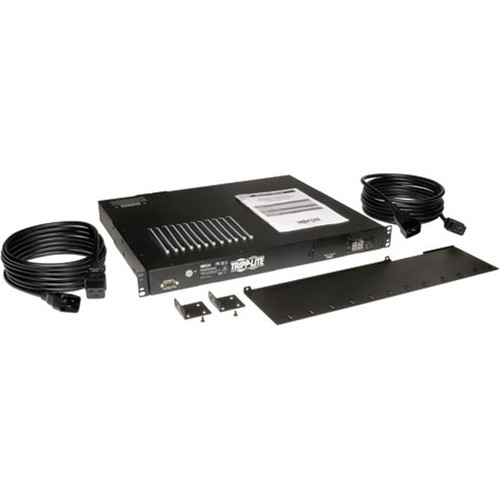

The package includes the complete PDU unit with all necessary documentation for installation and operation.
Highlights
- Single phase 16/20A 200-240V Auto Transfer Switch PDU
- Enables redundant-power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount design with 2 C20 inputs
- 10 total outlets: 8 C13 and 2 C19 receptacles
- Two-digit visual current meter for load monitoring
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- RoHS environmental compliance
- 2-year limited warranty
- Black finish matches standard rack equipment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH20HVAT |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDUMH20HVAT |
| Product Name | Metered PDUMH20HVAT 10-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 2 x IEC 60320 C20 |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,8 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.72" (43.69 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 14" (355.60 mm) |
| Weight (Approximate) | 10.30 lb (4672 g) |
| Miscellaneous | |
| Package Contents | Metered PDUMH20HVAT 10-Outlets PDU User Manual with Warranty Information |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the purpose of the auto transfer switch in this PDU?
The auto transfer switch provides redundant power protection by automatically switching between two separate power sources if the primary source fails. This enables continuous operation for single-corded network devices that would otherwise lose power during a source interruption, enhancing overall system uptime in critical environments.
How many outlets does this PDU have and what types are they?
This PDU features 10 total outlets: 2 IEC C19 outlets for high-power equipment and 8 IEC C13 outlets for standard devices. This mixed configuration supports a variety of equipment types in a single unit, allowing administrators to power both high-draw and standard devices from the same power distribution source.
What input voltage range does this PDU support?
The PDUMH20HVAT supports input voltages from 200V to 240V AC, with a nominal input of 230V AC. This wide range accommodates various power infrastructure standards and provides flexibility in different electrical environments while maintaining stable output to connected equipment.
What rack space does this PDU require for installation?
This PDU requires 1U of vertical rack space in a standard 19-inch rack. With dimensions of 1.72 inches high, 17.30 inches wide, and 14 inches deep, it fits efficiently in most rack enclosures while providing comprehensive outlet coverage for multiple devices.
What compliance certifications does this PDU have?
This PDU is Federal Trade Agreements Act compliant, making it suitable for GSA Schedule purchases and government procurement. It also meets RoHS environmental standards, restricting hazardous substances, and includes a 2-year limited warranty for reliable long-term operation.
How does the metered monitoring feature work on this PDU?
The integrated two-digit visual current meter displays real-time amperage draw, allowing administrators to monitor power consumption at a glance. This helps prevent circuit overloads, optimize power distribution, and plan for future capacity needs by providing immediate visibility into actual load conditions.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
