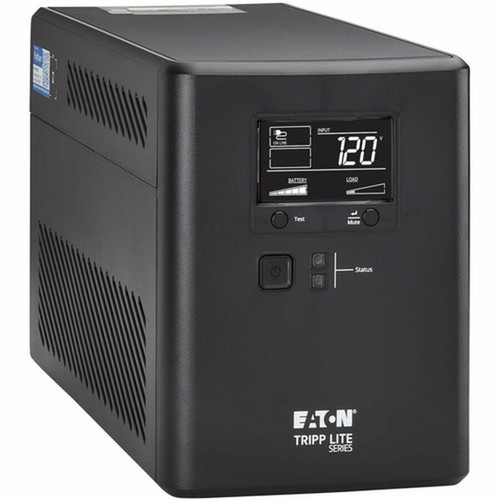

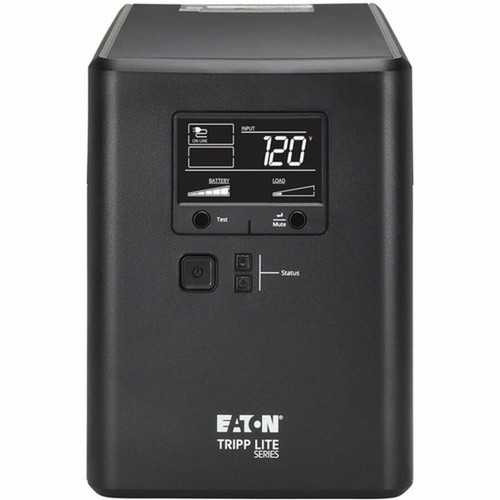

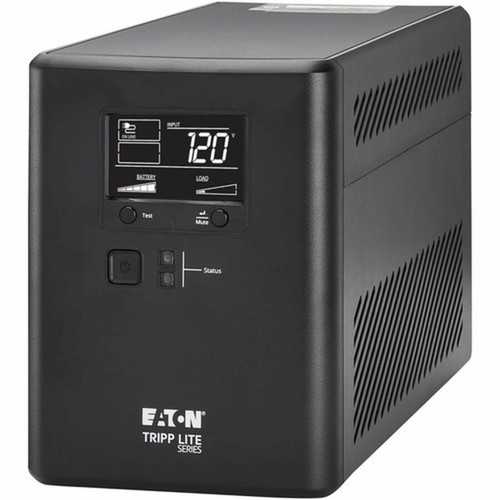

Tripp Lite by Eaton SMART750LCDTNC 750VA/500W Compact Tower UPS - Line-Interactive - AVR - 10 Outlets - LCD - 0U Rack Height
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with 4ms transfer time and delivers pulse-width modulated sine wave output. The automatic voltage regulation (AVR) corrects under-voltage and over-voltage conditions without switching to battery power, extending battery life during brownouts.
With input voltage ranging from 90V AC to 144V AC and output supporting 110V AC, 115V AC, and 120V AC, the unit accommodates typical North American power environments. The 10 total outlets include 5 battery & surge-protected outlets and 5 surge-only outlets for comprehensive device protection.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SMART750LCDTNC delivers essential power protection with features that prioritize reliability and user convenience. The hot-swappable, valve-regulated lead-acid battery can be replaced without powering down connected equipment, minimizing disruption during maintenance.
Comprehensive Protection
Beyond battery backup, this UPS includes dataline protection for RJ-11 and RJ-45 connections, surge energy rating of 156 joules, and overload protection to safeguard both equipment and data lines.
- RJ-11/RJ-45 Dataline Protection
- 156 J Surge Energy Rating
- Overload Protection Circuit
Intelligent Monitoring
The LCD display provides real-time metrics while USB and network connectivity enable remote management. Audible alarms alert users to low battery or fault conditions for proactive response.
- LCD with Runtime Estimation
- USB & Network Management Ports
- Audible Alarm System
Deployment / Use Cases
This 750VA UPS supports a wide range of applications where compact form factor and reliable power protection are essential. Its 500W capacity and multiple outlet configuration make it suitable for protecting small office setups, point-of-sale systems, and network equipment.
The unit's efficiency exceeding 95% and ENERGY STAR certification reduce operating costs in always-on environments. With half-load runtime exceeding 8 minutes, it provides sufficient time for graceful shutdowns or continued operation during brief outages.
Small Office & Retail
Protect computers, monitors, and networking equipment in retail POS environments or small office workstations where space is limited but uptime is critical.
Network & Security Infrastructure
Maintain operation of network switches, routers, security cameras, and access control systems during power disturbances that could disrupt security monitoring.
Physical Profile
Measuring 7.87" (200 mm) high, 5.91" (150 mm) wide, and 14.57" (370 mm) deep, the compact tower design fits easily on desktops or in tight spaces. The 17.63 lb weight provides stability while remaining portable for deployment flexibility.
The 0U rack height specification confirms this as a standalone tower unit rather than a rack-mountable device. Operating temperature ranges from 32°F (0°C) to 104°F (40°C), with storage capability from 5°F (-15°C) to 122°F (50°C) for various environment conditions.
- Width
- 5.91" (150 mm)
- Depth
- 14.57" (370 mm)
- Height
- 7.87" (200 mm)
- Weight
- 17.63 lb (7996.83 g)
- Length
- 5 ft (1.52 m)
What's in the Box
The package includes the SMART750LCDTNC 750VA compact tower UPS unit and a quick start guide for immediate deployment.
Package contents include SMART750LCDTNC 750VA Compact tower UPS Quick Start Guide, SMART750LCDTNC 750VA Compact tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 750VA/500W line-interactive UPS with automatic voltage regulation
- 10 total outlets: 5 battery & surge plus 5 surge-only for comprehensive protection
- LCD display shows voltage, frequency, load percentage, and estimated runtime
- 4ms transfer time with pulse-width modulated sine wave output
- Hot-swappable lead-acid battery with 8-hour typical recharge time
- Greater than 95% efficiency with ENERGY STAR certification
- USB and network connectivity for remote management capabilities
- Compact tower form factor with 0U rack height for desktop placement
- Dataline protection for RJ-11 and RJ-45 connections
- 3-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750LCDTNC |
| Brand Name | Tripp Lite series |
| Product Model | SMART750LCDTNC |
| Product Name | SMART750LCDTNC 750VA Compact tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Dataline Protection | RJ-11,RJ-45 |
| Overload Protection | Yes |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Network,Retail,POS,Home,Office,Workstation,Digital Signage,Equipment,Computer,Monitor,Security,Camera,Desk Lamp,Speaker,Desktop,Audio/Video Equipment,Hospital |
| Surge Suppression | Yes |
| Features | Audible Alarm,Cold Start Function,Self Test,Auto Restart |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 90 V AC - 144 V AC |
| Input Current | 10 A |
| Output Voltage | 120 V AC,110 V AC,115 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 156 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.67 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Alarm | Low Battery,Fault |
| Controls/Indicators | |
| Status Indicators | LCD Display: Input Voltage Output Voltage Frequency (Hz) AVR Boost / Cut Status Output Load in Watts Output Load Percentage Battery Voltage Estimated Runtime LEDs Indictors: Running on AC Power Battery Fully Charged Battery Charging Fault |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.20 Minute |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 119 BTU/h |
| Physical Characteristics | |
| Height | 7.87" (200 mm) |
| Width | 5.91" (150 mm) |
| Depth | 14.57" (370 mm) |
| Rack Height | 0U |
| Form Factor | Compact Tower |
| Weight (Approximate) | 17.63 lb (7996.83 g) |
| Miscellaneous | |
| Package Contents | SMART750LCDTNC 750VA Compact tower UPS Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite by Eaton SMART750LCDTNC provides 750VA/500W power capacity. This line-interactive UPS can support equipment drawing up to 500 watts, with automatic voltage regulation that corrects under-voltage and over-voltage conditions without switching to battery power during minor fluctuations.
How long will this UPS run on battery during an outage?
At full 500W load, the UPS provides approximately 2.20 minutes of runtime. At half load (250W), runtime extends to approximately 8.30 minutes. These runtimes allow for graceful shutdown of connected equipment or continued operation during brief power interruptions.
How many devices can I connect to this UPS?
This UPS features 10 total outlets: 5 battery & surge-protected outlets that provide both backup power and surge protection, plus 5 surge-only outlets that offer surge protection without battery backup. This configuration allows you to prioritize critical equipment on battery-backed outlets while protecting additional devices from surges.
What type of battery does this UPS use and is it replaceable?
The UPS uses a valve-regulated lead-acid battery that is both hot-swappable and user-replaceable. The hot-swappable design allows battery replacement without powering down connected equipment, minimizing disruption. Typical recharge time is 8 hours after a complete discharge.
Can this UPS be rack-mounted?
No, this is a compact tower UPS with 0U rack height specification, meaning it's designed for desktop or under-desk placement rather than rack mounting. The dimensions of 7.87" H × 5.91" W × 14.57" D make it suitable for spaces where rack infrastructure isn't available.
What management and monitoring features does this UPS include?
The UPS features an LCD display showing input/output voltage, frequency, load percentage, battery voltage, and estimated runtime. It includes USB and network connectivity for remote management via network card, plus audible alarms for low battery and fault conditions. Dataline protection for RJ-11 and RJ-45 connections safeguards network and phone lines.
What power capacity is listed for this UPS?
The listed power specification is 750 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 5, which helps buyers understand how many connected devices it can support in its intended deployment.
